Durable Triangular Truss , Aluminum Spigot Truss Lighting Trusses Customized Shape

Price Negotiable
Price: Negotiable
MOQ: 1set
Delivery Time: 15-20 working days
Brand: LEDIKA
Product Description

Durable Triangular Aluminum Spigot Truss Lighting Trusses Customized Shape



Product Description


Aluminum Triangular Spigot Truss is made of international standard aluminum 6082 , with the advantages of beautiful appearance,small volume, easy to set up and transport,  it also has the advantages of excellent compressive and anticorrosive performance; the truss average loading can meet many kinds of performances, business conferences audio equipment requirements. Other irregular shapes can be customized according to your requirements.


Material

  • Material : 6082 Aluminum
  • Color : Silver, Black, Red, Green or Customized
  • Standard: TUV ,SGS, ISO9001
  • Truss Shape: Triangular



Truss section specification(L*W): mm= millimeter



 Light Series



Size of Truss 287x287mm 290x290mm 300x300mm 305x305mm
Connection Spigot Bolt/Spigot Bolt Bolt
Truss main tube Diameter Ø 50mm , Thickness 3mm Diameter Ø 50mm , Thickness 3mm Diameter Ø 50mm , Thickness 3mm Diameter Ø 50mm , Thickness 3mm
Truss sub-tube                / Diameter Ø 20mm , Thickness 2mm Diameter Ø 25mm , Thickness 2mm Diameter Ø 25mm , Thickness 2mm
Truss brace tube Diameter Ø 20mm , Thickness 2mm Diameter Ø 20mm , Thickness 2mm Diameter Ø 25mm , Thickness 2mm Diameter Ø 25mm , Thickness 2mm
Truss Joint Diameter Ø 50mm Mould die 50x25mm 100x10mm
Max Loading 520-800kg 720-1200kg 600-1100kg 640-920kg
Max Span 12m 12m 12m 12.2m





Applications:

1.Celebration services: opening ceremonies, anniversary celebrations, housewarming celebration; opened the ribbon-cutting, the launching ceremony, the unveiling ceremony,

the groundbreaking ceremony for the completion ceremony, capping ceremony, the foundation stone laying ceremony, , the signing ceremony, the listing ceremony,, public relations etiquette; promotion of new products, awards ceremony;


2.Performances service: Business promotional performances, thank and return banquet, theatrical show, the models show,the ethnic features performances, Chinese and foreign

star invitation; stage design, and production of the lighthouse for performing arts, performances facility ,stage lighting truss.

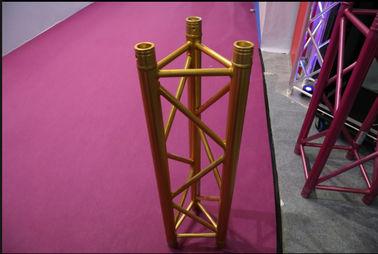

Pictures
