Concert 290mm Aluminium Roof Truss For Outdoor Event Stage

Concert 290mm Aluminium Roof Trusses For Outdoor Event Stage

Product Description

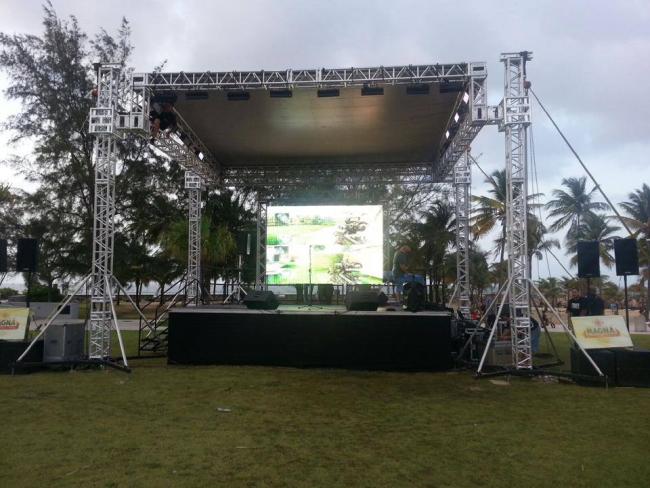

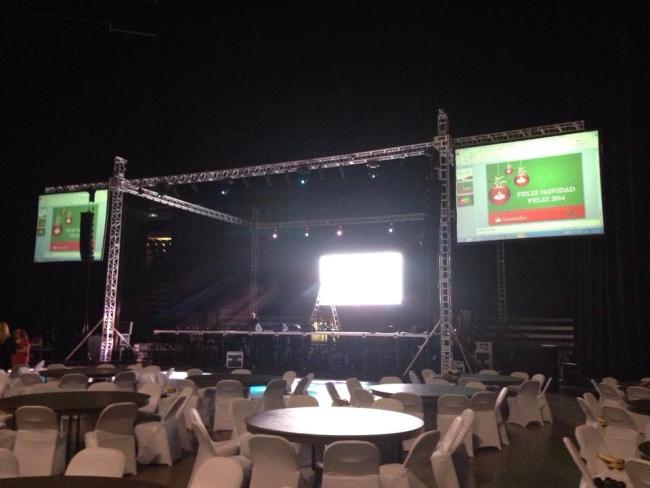

Stage Roof Truss uses the 6082 Aluminum material as for Main stanchion .There will cover the Tent on the top of stage, this will make the stage to avoid sun-scorched and rain-drenched.On top of the trusses can be used for hanging lamp equipment, make the concert, the exhibition effect is betterThe stage carries on the top of the tent, and avoid stage.On top of the rack can be used for hanging lamp equipment. That will make the concert or the exhibition better.


Product's Material

• material : 6082 Aluminum
• Color : Silver, Black, Red, Green or Customized
• Standard :TUV,ISO9001
• Shape : Square, Oblong,Triangle, Round

Truss section specification

(1) Beam Truss : 600mm*760mm

Pillar : 450x450mm

Roof Truss : 500x500mm

Main tube : (diameter*thickness) : 50mm*3mm

Brace tube:(diameter*thickness):30mm*2mm

(2) Beam Truss : 600mm*760mm

Pillar : 450x450mm

Roof Truss : 450x450mm

Main tube : (diameter*thickness) : 50mm*3mm

Brace tube:(diameter*thickness):30mm*2mm
