• Q235 Anticorrosive Steel Conical Electrical Power Pole for Transmission Line

Application

• Electrical Power transmission and distribution line

Type

• Suspension Pole, Tensile Pole, Strain Pole , Angle Pole, Dead-end Pole, etc

Voltage Grade

• 10~500KV (10KV, 13.8KV,33KV, 35KV, 66KV, 110KV,132KV, 220KV, 230KV, 330KV, 500KV or Others )

Shape

• Conical, Round, Polygonal (Octagonal, Dodecagonal, Hexadecagonal, etc),Tubular, Tapered

Material

• Hot Roll Steel Q235, Q345, Q420, Q460, ASTM A527 A36, GR50, GR65, ST-37, ST-44, ST-52, S355JR, S355J2G3, SS41, SS50, SS55 and others equivalent steel material

Wall thickness

• 2~30mm

Once Forming

• 16m Once forming without joint

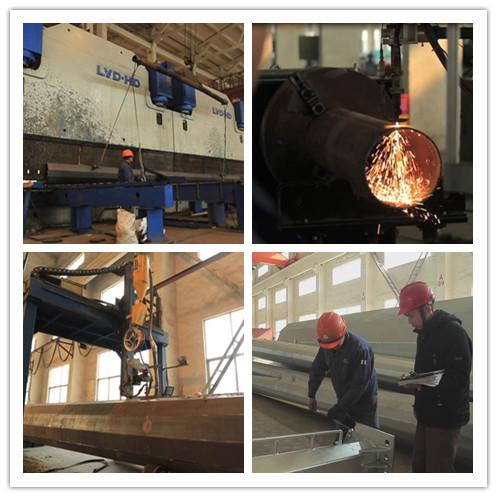

Welding

• Welding complies with AWS D1.1 standard.
• CO2 welding or submerged arc auto methods
• No fissure, scar, overlap, layer or other defects
• Internal and external welding makes the pole more beautiful in shape
• If customers need any other requirements of welding, we also can make adjustment ad your request

Joint

•  Joint with insert mode, flange mode.

Base plate

• Base plate is square/round/Polygon with slotted holes for anchor bolt and dimension as per client’s requirement.

Galvanization

• Hot dip galvanization in accordance with Chinese standard GB/T 13912-2002 and American standard ASTM A123.

Painting

• According to clients' request

Life Period

• More than 25 years, it is according to installing environment

Advantages

• Short Construction Cycle
• Less Land Occupation
• Low Overall Cost
• Easy Installation and Maintenance
• Weather Resistance
• Anti-corrosion
• ODM & OEM are available

• Capable to Handle Volume Orders
• Provide Professional Design by Our Experienced R&D Engineers
