Products

• ISO 9001 Hot Dip Galvanized Octagonal Electric Power Distribution Poles with Climbing Rungs

Type

• Suspension Pole , Strain Pole , Tensile Pole , Angle Pole , Dead-end Pole , etc

Voltage Grade

• 10-220KV

Shape

• Conical, Round, Polygonal (Octagonal, Dodecagonal, Hexadecagonal, etc),Tubular, Tapered

Material

• Hot Roll Steel Q235, Q345, Q420, Q460, ASTM A527 A36, GR50, GR65 and others equivalent steel material

Wall thickness

• 2 .3~ 6mm

Once Forming

• 16m Once forming without joint

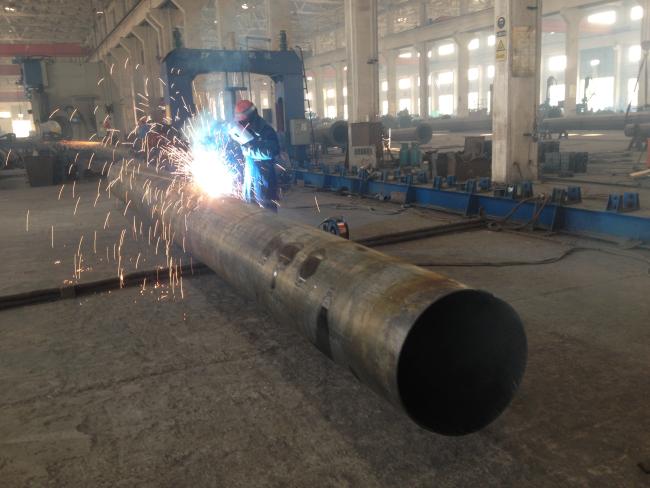

Welding

• Welding complies with AWS D1.1 standard.
• No fissure, scar, overlap, layer or other defects
• CO2 welding or submerged arc auto methods
• If customers need any other requirements of welding, we also can make adjustment ad your request
• Internal and external welding makes the pole more beautiful in shape

Joint

•  Joint with insert mode, flange mode.

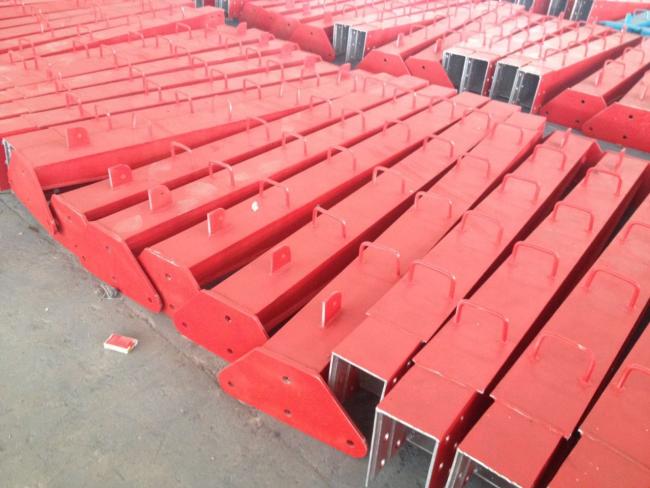

Base plate

• Base plate is square/round/Polygon with slotted holes for anchor bolt and dimension as per client’s requirement.

Galvanization

• Hot dip galvanization in accordance with Chinese standard GB/T 13912-2002 and American standard ASTM A123.

Life Period

• More than 25 years, it is according to installing environment
