Hot Dip Galvanized Gr.50 Gr.65 Electrical Power Poles Round / Tubular / Tapered
Yield Strength 345 MPA 4mm Electric Galvanized Power Tranmission Pole With Bitumen
Description:
| NEA STANDARD FOR STEEL POLES | ||||
| Height (ft) | 25 | 30 | 35 | 40 |
| Top Diameter (mm) | 120 | 127 | 127 | 127 |
| Butt Diameter (mm) | 152 | 226 | 248 | 317 |
| Thickness (mm) | 2.5 | 3 | 3 | 3 |
| Design Load (kg.) | 300 | 500 | 500 | 500 |
| Yield Stress (MPA) | 345 | 345 | 345 | 345 |
| Zinc Coating (microns) | 86 | 86 | 86 | 86 |
Our steel poles, being manufactured from steel sheet that has been subjected to hydraulic pression and longitudinal welding, has a tapered tubular structure with a multilateral cross section. To achieve a proper height, steel poles can be assembled by insert mode or flange mode at the installation site.
Product Detail :

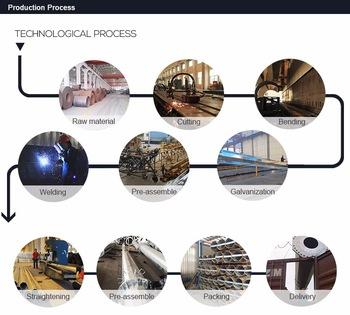

Production Process
Packaging & Shipping:
Our Services
- Reply within 24 Working Hours
- Factory Direct Sale
- More than 15 Years Design & Manufacture Experience
- Capable to Handle Volume Orders
- High-Quality and Low-Price Products
- Provide Professional Design by Our Experienced R&D Engineers
- Rich Exporting Experience
- ODM, OEM Acceptable
- Technical Support by E-mail
- Calling service
