Product Description:

Product Description:

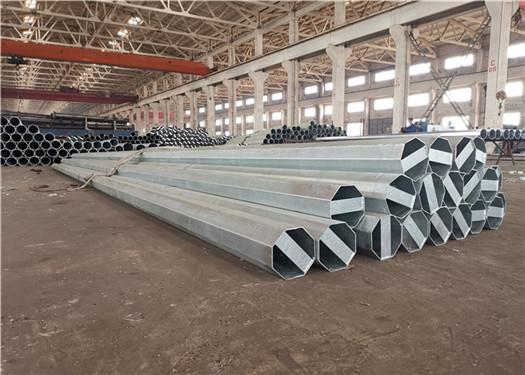

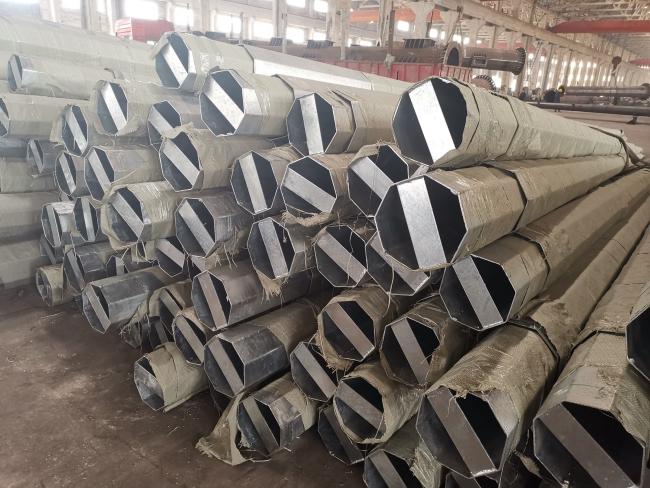

Transmission pole includes suspension pole, tensile pole, strain pole, angle pole which covers voltage 10~500KV (10KV, 13.8KV,33KV, 35KV, 66KV, 110KV,132KV, 220KV, 230KV, 330KV, 500KV or Others ). Generally steel power transmission poles are overlaped insert type and direct burried. In order to protect it from weather and corrosion, steel tubular poles are hot dip galvanized in accordance with ASTM 123 and the zinc coating at least 86 microns which could protect steel tubular poles from corrosion as long as 25 years.In addition, our company have become a qualified supplier of SGCC and NGCP. Our company has more than 15 years' design & manufacture experence which enable us to handle volume orders with high quality and low cost.

Our round tapered poles are available in mounting height from 3 to 14m(one piece joint),two moulds are available with us: one taper is 11/‰,the other 14/‰,poles of taper 10-15‰ can be made. The poles can be used for post top or bracket arm applications. Integral bracket arm arrangements are also available.

Product Details:

Standard Accessory:

- Top plate
- Base plate
- Bottom strip
- Standard hole
- Climbing rung
- Anchor bolt
- Bitumen protection
- Painted marking
- Removable ladder

Production Process Flow Chat:

Raw material test→ Cutting →Bending →Forming Operation→Seam Welding → Fittings Welding → Welding Inspection(UT/RT) →Pre-assemble for Semi-finished Products →Galvanizing (Measure Zin-Coating) → Straightening→ Pre-assemble for Finished Products → Packing &Delivery
