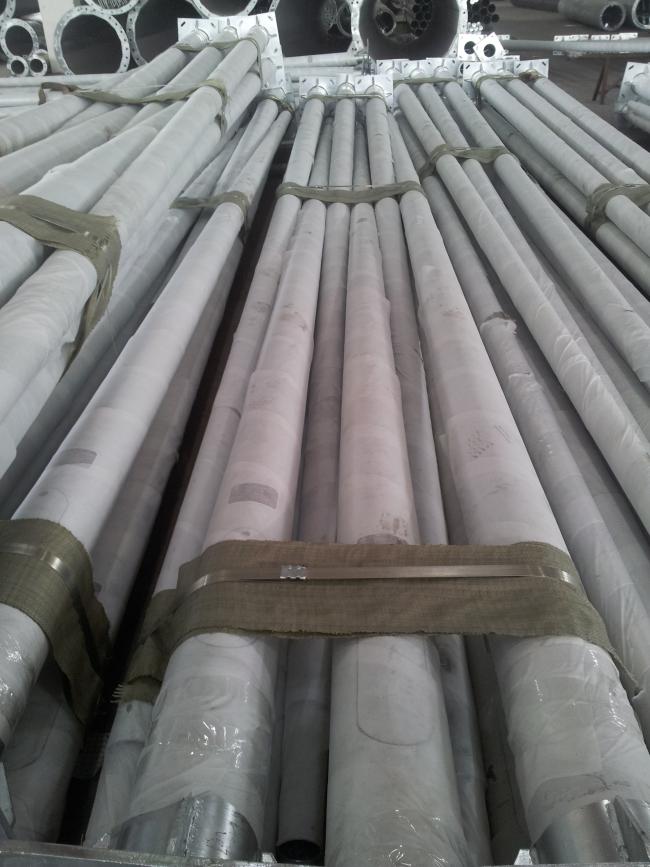

Hot Dip Galvanized Conical Tapered Steel Electric Pole With Climbing Ladder
Hot Dip Galvanized Conical Tapered Steel Electric Pole with Climbing Ladder
Product Description:
The HDG Electrical Steel Tubular Pole was designed as customer's request. For Distribution and Transmission Line use. And with Base Plate use Anchor Bolts to Install. Sections with 2 and use flange to connect each segment. The hot dip galvanized in accordance with ASTM 123 and the zinc coating at least 86 microns.
But to design the practical poles for customers use, normally we need customer to provide us some parameter, like as the followings :
- Pole top design load
- Where is the position of the load, the distance from the top
- The wind Speed
- How will the wire distribute
- Pole type with Burial Type or Base Plate type
- The connections mode, use slip joint or flange
- and others can be furthermore discussed when needed.
Hot dip galvanization:
All our products must be hot dip galvanized which can keep the steel poles without rust more than 30 years.Our standard for a good hot dip galvanization steel pole is same color of the zinc coating without dent mark,no exposed iron and hang of zinc of defect. Normally speaking,the thickness of the zinc coating is up to the materials thickness.The thicker the material is, the thicker the zinc coating will be.
Product Specification:
| Products |
|
| Application |
|
| Galvanization |
|
| Welding |
|
| Shape |
|
| Joint |
|
|
Painting |
|
|
Base plate |
|
Customer Service:
- Reply within 24 Working Hours;
- Factory Direct Sale;
- More than 15 Years Design & Manufacture Experience;
- Capable to Handle Volume Orders;
- High-Quality and Low-Price Products;
- Provide Professional Design by Our Experienced R&D Engineers;
- Rich Exporting Experience;
- ODM, OEM Acceptable;
- Technical Support by E-mail;
- Calling service
Standard Accessories:
- Top Cap
- Butt Plate
- Standard hole on X-X , Y-Y , Z-Z.
- Grounding Nuts & Bolts
Others Standard poles 25FT, 30FT, 35FT, 40FT,45FT
|
Height (ft) |
Thickness (mm) |
Butt Diameter (mm) |
Tip Diameter (mm) |
Design Load (kg) |
Yield Stress (MPA) |
Zinc Coating (microns) |
| 25 | 2.5 | 152 | 120 | 300 | 345 | 86 |
| 30 | 3.0 | 226 | 127 | 500 | 345 | 86 |
| 35 | 3.0 | 248 | 127 | 500 | 345 | 86 |
| 40 | 3.0 | 317 | 127 | 500 | 345 | 86 |
| 45 | 3.0 | 328 | 127 | 500 | 345 | 86 |
