Product Description:

Product Advantages:

1). Short Construction Cycle
2). Less Land Occupation
3). Low Overall Cost
4). Easy Installation and Maintenance
5). Weather Resistance
6). Anti-corrosion
7). ODM & OEM are available
8). Capable to Handle Volume Orders
9). Provide Professional Design by Our Experienced R&D Engineers

Process:

1.Raw materialtest :When purchasing the raw material(steel plate ),on sheet of mill certificate from mill factory must be enclosed.When the raw material arrives at the warehouse ,the quality department must take the elongation test and the chemical composition analysis to make sure the raw material have meet all the standard that the needed before production.
Material standard :ASTM GR65
2.Cuting :Cuting the raw material that have meet all the standard required into different length and width .

3.Molding :Forming the cutted steel plate into the shape (circular or polygonal)that as per specified in the drawing .
4.Welding :After molding ,weld the steel plate together .Uauslly it is longitudinal welds.
5.Dimension verify :Afer welding ,check the diameter ,length according to the drawing .
6.Flange:Weld the flange into the main pole
Welding standard:ASTM A 252-1998 or ASTM A 714-1999
7.Drill:Drill the hole at the right location as requested in the drawing.
8.Calibration:check the straightness and diameter to make sure it meet all the requirement .
9.Deburr: All burrs after drilling or cutting of steels shall be deburred and appropriately chamfered before galvanized
10.Galvanization :All poles internally and externally are to be hot-dip galvanized in accordance with requirement mentioned in the relevant drawing or specification
Galvanization standard:IS2629-1985 ,BS729-1971
11.Recalibration:recheck the straightness and diameter to make sure it meet all the requirement after galvanization.
12.Thread:Thread the parts that needs screw thread ot make sure it can installed successfully at site .
13.Packages: Our poles as normal cover by sea /road -worthy wooden packing material ,anyway also can following by client required , each 40HC or OT can loading how many pcs will calculation base on the client actually specification and data

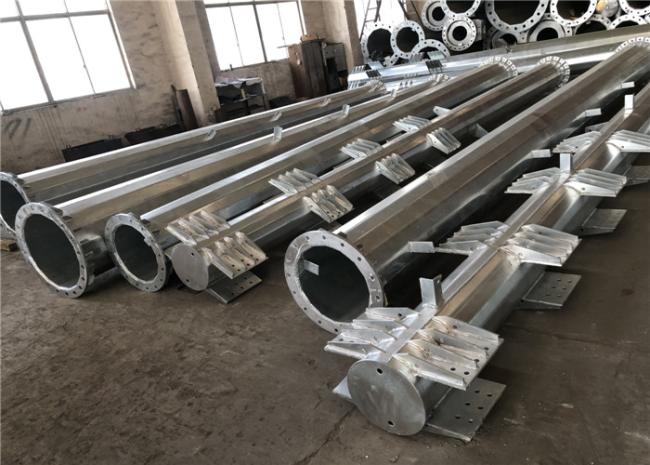

Product Show:

Contact Us:

Jiangsu Hongguang Steel Pole Co., Ltd.

Address: Wanshi Industrial Zone, Yixing City, Jiangsu Pro., P.R.China, 214212

Telphone: +86 510 878 441 56

Fax: +86 510 878 435 28

Trade manager ID: cnhgsteelpole

Skype: tangjia870124

Company youtube link: https://youtu.be/C9sHcnm3RKI

Please feel free to contact us!
