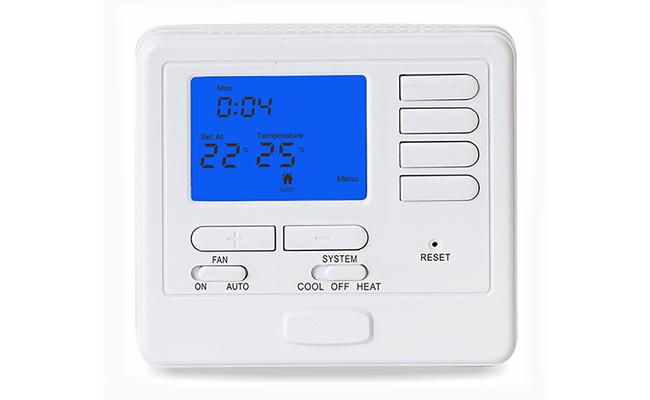

Universal 2C/2H Heating Room 5-1-1 Day Programmable Thermostat with Dual Powered

ISO certifications .pdf

Specifications:

Product Name:24V Floor Heating Thermostat

The display range of temperature.............41℉ to 95℉ (5℃ to 35℃)

The control range of temperature.............44℉ to 90℉ (7℃ to 32℃)

Stages......................................................2 Heat / 2 Cool

Programmability........................................5(Mo~Fr)/1(Sa)/1(Su) Programmable, or Sa~Su use on the whole week

Program................................................4 times / 4 temp, “WAKE” “LEAVE” “RESTRN” “SLEEP”

Load rating.............................................. 1.0Amp per terminal, 1.5Amp maximum all terminals combined

Display accuracy......................................±1℉(under 68℉)

Power source.......................................... 24 VAC(18 to 30 VAC), 50/60 Hz for hardwire (common wire), 2*AAA 1.5V Alkaline batteries power

Fan Switch...............................................AUTO/ON

System Switch.........................................HEAT/OFF/COOL

Differential................................................0.4 to 2.0℉

Low battery indicator................................Under 2.45V (without 24V power supply)

Backlight...................................................Blue, light on for 15 seconds

Dimensions of thermostat........................ W120 x H115 x D24mm

Terminal Designations

RH-----------24VAC (system power supply) HEAT=RH TO W W1 B

RC ----------COOL=RC TOY Y1 O FAN=RC TO G

C-------------COMMON24VAC(SYSTEM POWER SUPPLY)

W------------1 ST HEAT

W1----------2 ND HEAT

Y-------------1 ST COOL

Y1-----------2 ND COOL

G-------------FAN

B-------------REV VALVE HEAT

O-------------REV VALVE COOL

FAQ:

1. Are you a factory or a trading company?

We are a factory that has over 10years experience in producing thermostat, heaters, voltage protector, solar controller etc.

2. Do your products are 100% testing?

Yes, all our products are 100% testing.

3. What is your advantages compare with others?

We have patent for most our products, which protect our absolute right for the product, also keep the advantage on price.we are factory, so we are more special on product technical, which can keep fluent communication with customers and have capacity to keep enough stock for our customer.we have priority on product producing time and stock sales.

4. Can I get some samples?

Yes, Sample Orders Welcomed.

5. What is your warranty for your products?

1 Years.

6.What is your delivery time?

7-45 working days.

Services:

1. Delivery time is 7 days for sample order and 40 working days for bulk order

2. Strong production capacity and strict quality control system

3. Your inquiry and problems related to our products or prices will be replied in 24 hours

4. Well-trained and experienced staffs to answer all your inquires

5. After-sale tracking service for all of our clients

6. OEM is available,small quantities, mixed bulk orders are also welcome

7. Payment: L/C, D/A, D/P, T/T, Paypal , Western Union, Money Gram

8. Delivery way: UPS, DHL, TNT, FEDEX, EMS, CHINA POST

Shipping:

1. Ex-works: We can offer ex-works price if you have your own shipping agent.

2. Express door to door: We can get very competitive price as we have contract with DHL,UPS, FedEx,     TNT, etc.

3. FOB price: For big order, FCL, LCL, we can offer you FOB Shenzhen price.

4. CIF price: We also can offer you CIF price upon your appointed forwarder.

5. Others: For other shipping terms, we can discuss and find the best solution for order shipping.

Pictures:
