GSS-8 15kN Electric Cable Conveyor for Underground Power Cable Installation with 10-250mm Diameter Range
Price:
$1,500-1,600
MOQ:
1
Delivery Time:
Negotiable
Brand:
XINYA
Product Description

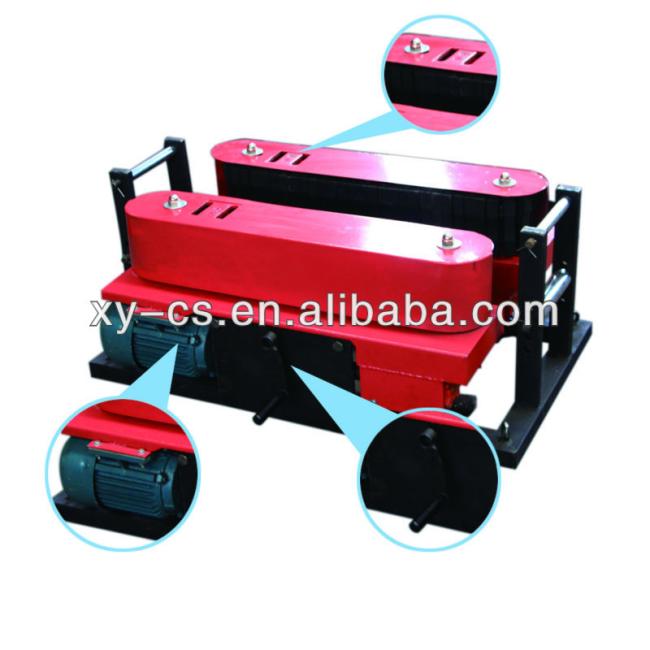

GSS-8 15kN Electric Cable Conveyor for Underground Power Cable Installation
GSS-8 Electric Cable Conveyor for Heavy-Duty Underground Power Cables
Overview
The GSS-8 Electric Cable Conveyor is a heavy-duty solution specifically designed for long-distance underground power cable installation and high-resistance job sites. With a powerful 15kN conveying force, it can handle large and heavy cables efficiently, significantly reducing labor cost and installation time.
Built for professional contractors and utility companies, the GSS-8 delivers stable performance under demanding conditions and supports both single-unit operation and multiple machines synchronized in series, making it suitable for large-scale infrastructure projects.
Key Features
- 15kN high conveying force for heavy-duty applications
- Wide cable diameter range of 10 - 250mm
- Suitable for long-distance underground cable laying
- Rubber die-cast conveyor rollers protect cable jacket
- Adjustable roller spacing for different cable sizes
- Can be configured for conveyor or pulling applications
- CE certified, OEM customization available
Advantages
The GSS-8 stands out for its superior conveying force and flexibility. When multiple units are connected in series, it delivers unmatched efficiency for long underground routes and high-friction installations. Over the long term, the GSS-8 helps contractors reduce manpower requirements, shorten project timelines, and lower overall installation costs, making it the most cost-effective choice for demanding projects.
Application
- Long-distance underground power cable installation
- Utility and grid infrastructure projects
- Large-diameter and heavy power cable laying
- Industrial and energy construction sites
GSS-8 Cable Conveyor - Technical Parameters
| Item | Specification |
|---|---|
| Model | GSS-8 |
| Product Name | Cable Conveyor / Cable Pushing Machine |
| Motor Power | 1.8 kW × 2 |
| Applicable Cable Diameter | 10 - 250 mm |
| Conveying Force | 15 kN |
| Clamping Force | ≤ 2.7 kN |
| Speed Options | 9 m/min * 12.5 m/min * 20 m/min |
| Overall Dimensions (L × W × H) | 1200 × 700 × 500 mm |
| Weight | 300 kg |
| Operation Mode | Single unit or multiple units in series |
| Synchronization Control | Main control box / sub-control box (optional) |
| Conveyor Roller Type | Rubber die-cast rollers |
| Cable Protection | No damage to cable outer sheath |
| Typical Application | Underground power cable installation |
| Certification | CE (available) |
- Designed for long-distance underground cable laying
- Large conveying force with compact structure
- Adjustable roller center distance according to cable diameter
- Supports synchronized operation of multiple machines
- Reduces labor intensity and improves project efficiency
GSS Series Upgrade Path - Sales Comparison Table
| Item | GSS-3 | GSS-6 | ⭐ GSS-8 (Recommended) |
|---|---|---|---|
| Positioning | Entry-Level Solution | Standard Professional Solution | Heavy-Duty Professional Solution |
| Conveying / Pulling Force | 7 kN | 12 kN | 15 kN |
| Applicable Cable Diameter | 10 - 150 mm | 10 - 200 mm | 10 - 250 mm |
| Typical Installation Distance | Short distance | Medium distance | Long distance / high resistance |
| Suitable Cable Type | Light power / telecom cables | Standard power cables | Large & heavy power cables |
| Working Intensity | Light duty | Medium duty | Heavy duty, continuous operation |
| Operation Mode | Single unit | Single or series operation | Single or multiple units in series |
| Efficiency Level | Basic | High | Very high |
| Labor Cost Saving | Limited | Moderate | Maximum |
| Risk of Cable Damage | Low | Very low | Very low (optimized rollers) |
| Certification | CE available | CE | CE |
| Target Customers | Small contractors, budget projects | Utility & municipal projects | Professional contractors & utilities |
| Main Selling Point | Lowest cost, compact | Best balance of power & price | Best long-term cost-effectiveness |
| Sales Recommendation | Budget choice | Most common option | Recommended for professional use |
Recommendation: The GSS-8 is the optimal choice for professional contractors and utility companies requiring maximum efficiency and long-term cost-effectiveness in heavy-duty underground cable installation projects.
