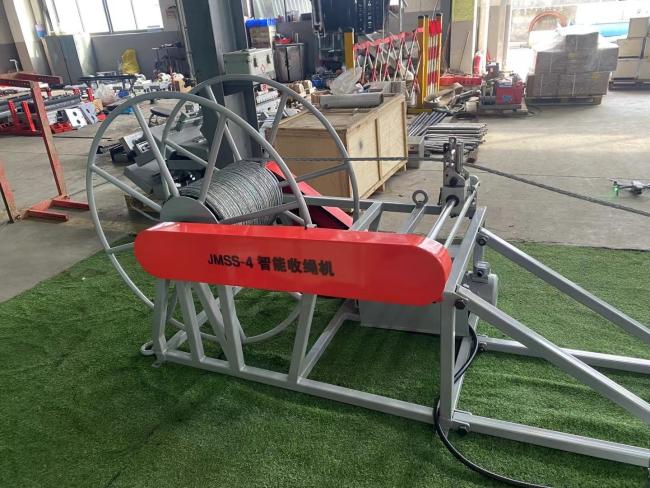

The take-up and release rope machine is primarily composed of the following components: frame, motor, reducer, wire trapper, detachable rope plate, and electric box.

• Primarily used with grinding machines to automatically retract grinding rope, eliminating manual operation
• Retracting speed matches grinding speed to maintain consistent tension, ensuring neat rope arrangement
• Equipped with automatic wire arrangement device for consistently organized line placement

Usage / Applications

These machines are widely used in industries where wire ropes and cables are frequently deployed, stored, or replaced. Typical applications include:

• Cranes and lifting equipment – rewinding ropes for tower cranes, mobile cranes, and overhead cranes.

• Mining – handling heavy ropes used in mine hoists and draglines.

• Marine and shipping – rewinding mooring ropes, anchor chains, and towing cables.

• Oil & Gas / Offshore rigs – handling drilling line ropes.

• Construction – preparing ropes for winches, hoists, and lifting operations.

• Cable manufacturing & testing plants – spooling long lengths of wire rope or cable.

Characteristics

• Electric motor driven – powered by AC or DC motors with variable speed drives.

• Drum or reel based – accepts wire rope on one reel and rewinds onto another.

• Tension control system – ensures uniform winding without rope slack or overlap.

• Adjustable traverse system – guides the rope evenly across the drum width.

• Capacity customization – built for specific rope diameters (e.g., 5 mm – 80 mm) and lengths (hundreds to thousands of meters).

• Safety features – emergency stop, overload protection, automatic shutoff.

Advantages

• Safety: Reduces manual handling of heavy ropes, lowering accident risk.

• Efficiency: Speeds up rewinding compared to manual/mechanical methods.

• Quality of winding: Ensures uniform layering, preventing rope damage.

• Durability: Extends rope life by avoiding improper coiling/twisting.

• Customization: Can be tailored to rope size, length, and industrial needs.

• Low manpower requirement: One or two operators can handle long ropes.
