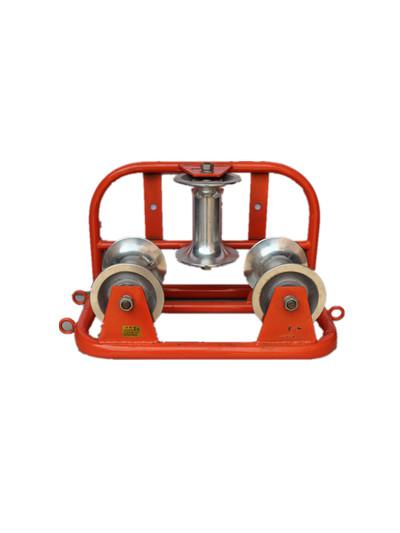

Corner Cable Roller with Aluminum Wheel for Cable Laying Project
Corner Cable Roller with Aluminum Wheel for Cable Laying Project
We have the complete production equipment and professional production team to manage the whole process from production to packing shipment.
All products will 100% test before delivery to ensure the quality.
Cable Pulley is used for releasing the cable,can change the angle.
It is used to lay the power cable and the telecommunication cable
Cable pulley widely used for the cable laying contractor,
utility and electricity supply industry – this includes straight cable rollers, corner cable rollers,
triple cable rollers and specialist cable rollers for pulling underground cables into trenches .
Cable rollers should always be used when pulling cables.
Straight cable runs are pulled in using straight cable rollers suitably placed in the cable trench to prevent the cable being dragged on the trench bottom or in mud -
cable roller spacing is dependent on cable type being laid and the cable pulling tension along the route.
Leading cable rollers are used to support the cable over the entire drum width immediately before being pulled into the trench.
Technical Data
| Product NO. | Type NO. | Rated Loaded(KN) | Specification | weight(kg) |
| 80457 | DDHZ-80 | 10 | Φ140*160 | 12 |
| 80458 | DDHZ-80N | 10 | Φ140*160 | 10.5 |
| 80459 | CRS-1004 | 10 | Φ140*200 | 14.5 |
| 80460 | CRS-1004N | 10 | Φ140*200 | 13 |
