80-120 KN New Hydraulic Wire Cutter for Cutting in Light Weight
80-120 KN New Hydraulic Wire Cutter for Cutting in Light Weight
Use and Characteristic
1 The tool features a double apeed action:a fast advancing speed for rapid approach of the blades to the connector and a slower more powerful speed for cutting.
2 For ease of operation and comfort the operator the tool head can be fully rotated through 360 degrees.
The built in safety valve will bypass the oil supply when the maximum pressure is reached,and the pressure release system can easily be operated at any stage of compression.
3 With interchangeable dies.
4 Steel cutting heads which can be mounted in the most convenient position for the user working in difficult locations such as shafts or towers.
5 Easy to replace blades.
6 Spring return in single acting model.
Carrying box for protection and ease of transport.
Technical Data for Hydraulic Wire Cutter

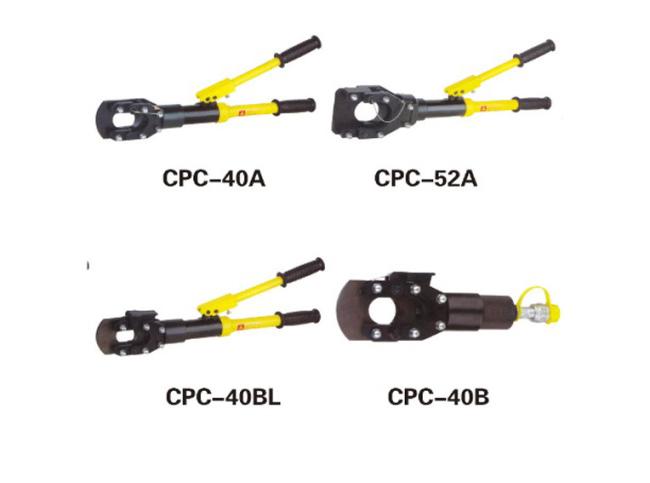

| Product No. | Model Type | Cutting Force(KN) | Length(mm) | Cutting Rang | Weight(KG) |
| 80257 |
CPC-40A |
80 | 570 | telephone cableΦ40mm; steel aluminum core armored cableΦ32mm | 5.0 |
| 80258 | CPC-52A | 120 | 615 | telephone cableΦ50mm; steel aluminum core armored cableΦ45mm | 7.0 |
| 80259 | CPC-40BL | 120 | 480 | ACSR Φ40mm;steel wire Φ28mm | 5.0 |
| 80260 | CPC-40B | 100 | 320 | telephone cableΦ40mm; steel aluminum core armored cableΦ28mm | 3.6 |
