3T - 10T Heavy Duty Suspension Cable Drum Reel Carrier Trailer / Underground Cable Tools

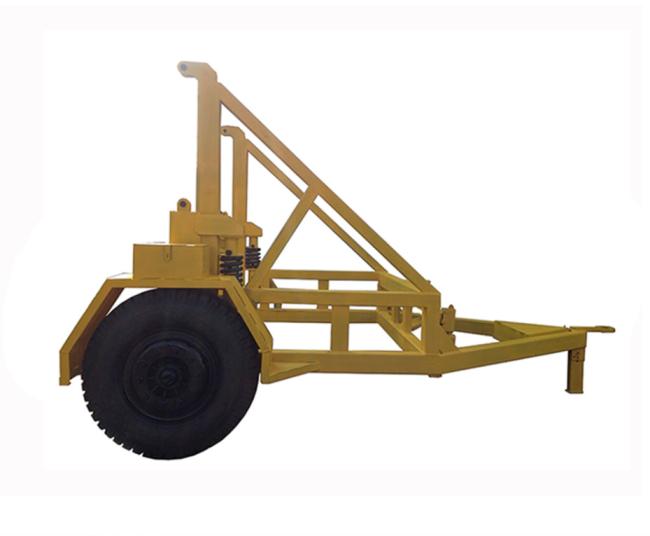

10T Heavy duty suspension cable drum reel carrier trailer for electrical appliance
Description
This product is the new generation of cable trailer, which integrates the function of drum hauling, cable pulling, cable pushing, guiding and tight into a whole. Equipped with automatic braking device, it can brake effectively only by moving clutch. With compact design and flexible steering function, it can be operated under narrow work site. Simple operation and easy maintenance, it is a necessary tool for electric power construction.
Application
used for cable drum hauling and cable pulling-pushing. Adopt mechanical lifting method, simple operation, stable and durable. The traction tire on the font of cable trailer can change angle at random and easy to move. Equipped with damping device, the stability of trailer was increased greatly. Remarks: the trailer can be transported by container after disassembly.
Technical Data
|
Model |
|
|
Max coil diameter |
Wide |
length |
Wide |
High |
|
(T) |
(kg) |
mm |
mm |
(mm) |
(mm) |
(mm) |
|
|
LZ-3T |
3T |
900 |
2300 |
1250 |
3800 |
2300 |
2200 |
|
LZ -5T |
5T |
1500 |
2800 |
1450 |
4000 |
2600 |
2500 |
|
LZ -8T |
8T |
2300 |
3300 |
1750 |
4300 |
3200 |
2700 |
|
LZ -10T |
10T |
2800 |
3500 |
1850 |
4300 |
3400 |
2800 |

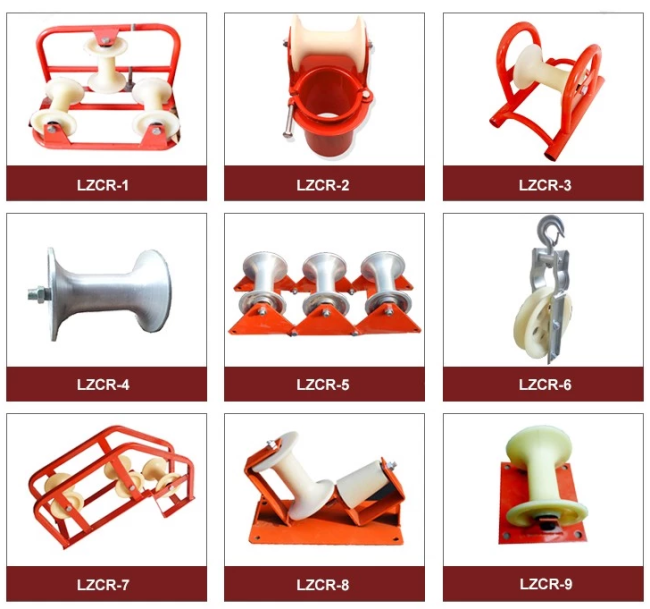

Related Product
RFQ:
1>. What is the MOQ?
It’s 1set.
2>.What is the lead time?
Usually production time is 15-20 days .
3>. How do you control the product quality ?
We have quality control department, who will randomly inspect the cable roller and we will also examine the cable roller before delivery.
5>. How can we choose the shipping way?
For small orders, we suggest to ship by Express like DHL,FEDEX,UPS...door to door service. It will take 3-5days.
For larger orders,we suggest to ship by sea.
If you need them in urgent, air shipping is a good choice.
