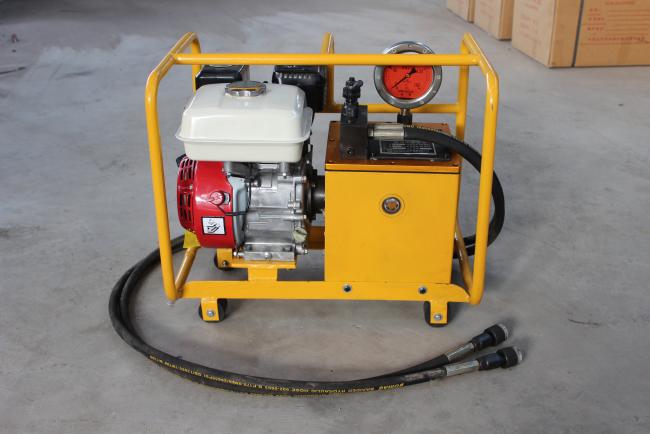

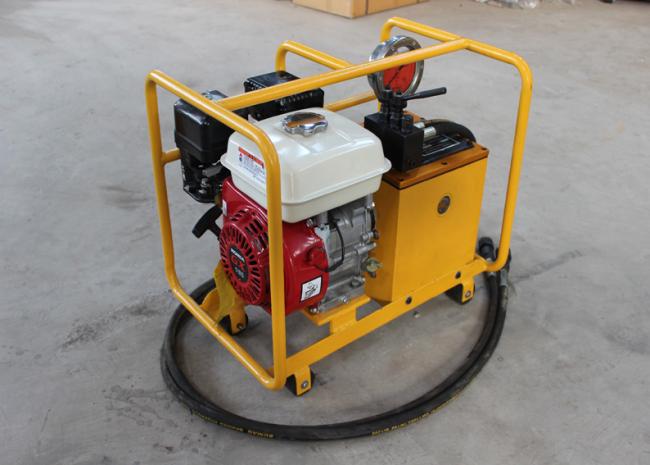

High Pressure 80 Mpa Hydraulic Oil Pump with Honda Gasoline Engine
High Pressure 80 Mpa Hydraulic Oil Pump with Honda Gasoline Engine
Application
Application of Honda Gasoline Engine Hydraulic Oil Pump : to provide power for the cutting tool, the hydraulic compressor, punching machine
and other construction machinery, which is operated in the wild field in electric power, railway, rescue, construction and other industries.
Features
1 Easy to operate and high safty
2 Precise Machining Technique
3 Long Life of the Machine
4 Delicate and Beautiful Appearance Design
5 Broader Applicable Scope
6 Good quality and less malfunction
Information
1 Electromagnetic valve control to withdraw piston in any position.
2 High and low speed two stage for quick oil output.
3 Pressure safety valve over pressure unit could avoid over pressure damage.
4 High pressure is for driving piston and low pressure is for piston reset.
5 Oil pipe fitted with quick coupling could be ordered at any length.
Technical Data for Honda Gasoline Engine Hydraulic Oil Pump
| Product NO. | Type NO. |
Rated Pressure(Mpa) |
Rated Flow (L/min) |
Max output pressure(Mpa) |
Tank Volume(L) |
| 80043 | JYB-80 | 80 | 1.4 | 100 | 8 |
