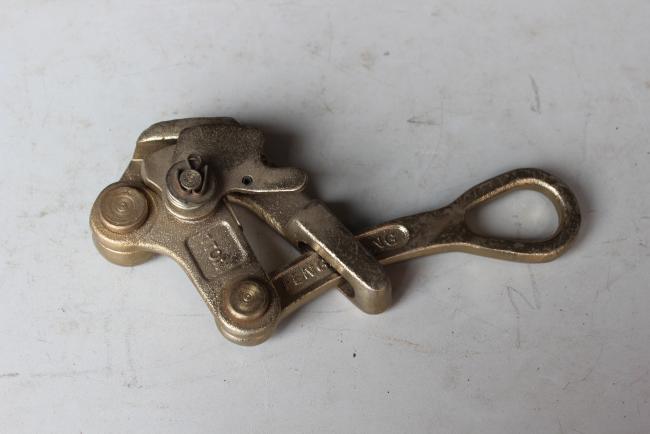

Light Weight 2 Ton Come Along Clamp Wire Rope Grips for 4-22 mm Conductor
Light Weight 2 Ton Come Along Clamp Wire Rope Grip for 4-22mm Conductor

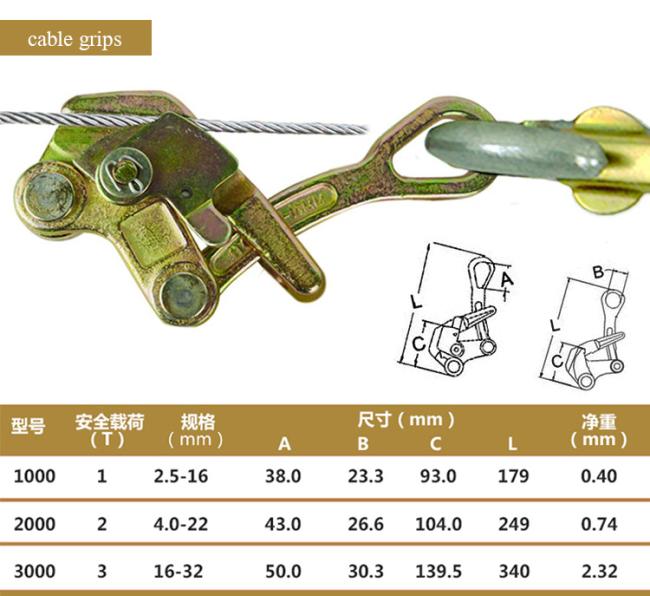

Specification
|
Item No.
|
Model No.
|
Rated Load
(KN)
|
Applicable Conductor Diameter
(MM)
|
Unit Weight
(KG)
|
|
0126
|
SD-1000
|
10
|
2.6~15
|
0.75
|
|
0127
|
SD-2000CL
|
20
|
4~22
|
1.3
|
|
0103
|
SD-3000CL
|
30
|
16~32
|
2.5
|
Features:
1. Match with delicate smooth clamp mouth, minimal harm to wires.
2. Made by high tensile forged carbon steel.
3. Half-moon shape clamping jaw is suitable for pulling steel strand and steel wire.
4. Planar shape clamping jaw is suitable for pulling electric cable, will not damage the cable’s surface.
5. Clamp mouth with insurance device, will not jump wire.
6. After special heat treatment, the product has strong tension stress, high meshing degree and not easy slip or distort.
7. Material: High Tensile Carbon Steel
8. Constructions: heat treatment and high temperature treatment (Quenched and Tempered)
9. Finish: color zinc plated

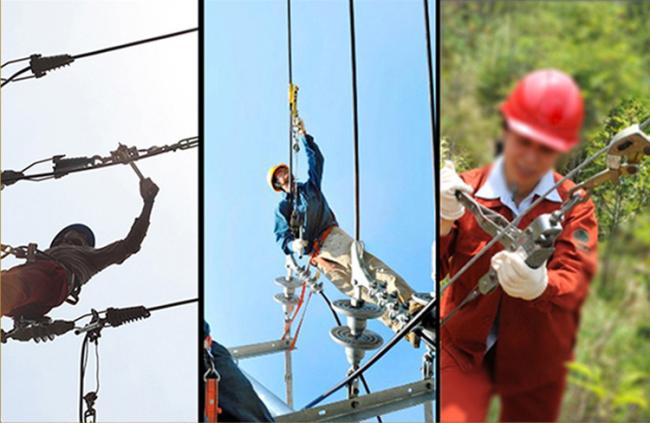

Application
