Welded Steel Underground Cable Tools 2 Ton Cable Reel Trailer Cable Carriage Vehicle
Underground Cable Tools 2 Ton Cable Reel Trailer Cable Carriage Vehicle
Quick Infomation
1. Reel Carrier Trailer
2. Material: Welded steel
3. Max capacity:30-100kN
4. Reel diameter:2400~3600mm
5. Axel diameter:80-150mm
Description:

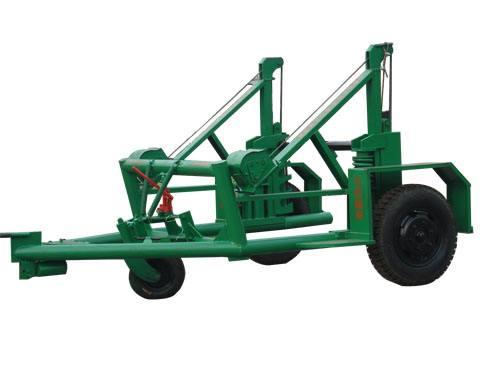

The reel carrier is made of welded steel with protective coating. Two hydraulic jacks powered by a manual pump are used to lift the reel. one disc brakes acting on the reel shaft is designed to control the unwinding tension. Special models with different characteristics can be designed on demand.
Specification:
| Model |
Max Capacity (kN) |
Reel Dimensions(mm) | Overall dimensions(mm) |
Weight (kg) |
||
| Diameter | Width | Axel diameter | ||||
| DLG-3T | 30 | 2400 | 1250 | 80 | 3800×2300×2200 | 900 |
| DLG-5T | 50 | 2800 | 1450 | 100 | 4000×2600×2500 | 1500 |
| DLG-8T | 80 | 3400 | 1800 | 120 | 4300×3200×2700 | 2300 |
| DLG-10T | 100 | 3600 | 2000 | 150 | 4600×3800×2900 | 3100 |
Remarks: the trailer can be transported by container after disassembly.
Please contact us if you have any requirement, and we can make products with special specification as your requirements.
