700 Bar 220V Electric Hydraulic Pump Station Model QQ-700 For Supply Power Cable Lug Crimping

Name: 700 Bar 220V Electric Hydraulic Pump Station Model QQ-700 For Supply Power Cable Lug Crimping
Brand: Changshu Xinya Machinery Manufacturing Co., Ltd.

Price Negotiable

Price: USD250-350

MOQ: 1set

Delivery Time: 7 workdays after payment

Brand: XINYA

Product Description

700 bar 220V Electric Hydraulic Pump Station Model QQ-700 for supply power cable lug crimping

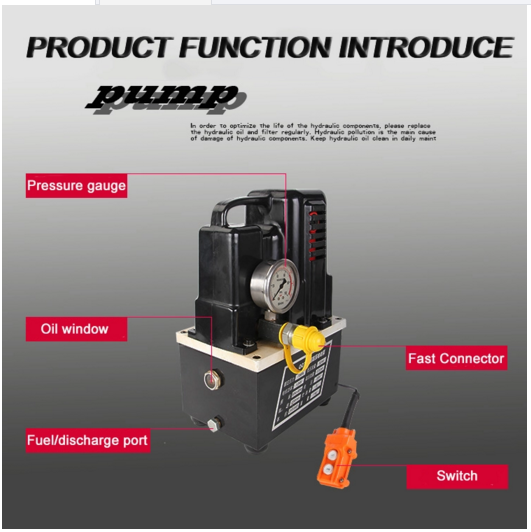

Features

On both ends of the low end of the high output,large amount of oil Low pressure use plunger type, improve the effective pressure

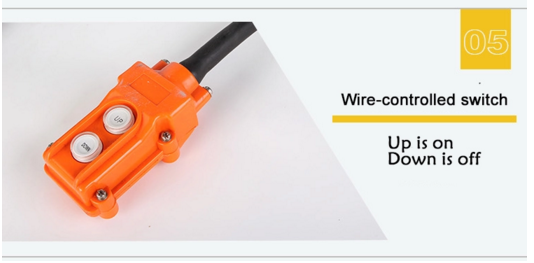

Single active, foot switch control,can be used to operate cutting, punching tools, hydraulic cylinder, etc
Pressure overload protection device, avoid overpressure and damage the equipment
Automatic the pressure, make sure won't leak when using.

Data Sheet

High pressure	70Mpa	High pressure flow	0.7L/min
Low pressure	7Mpa	Low pressure flow	5L/min
The motor power	1.2KW	voltage	220V
Frequency	50Hz-60Hz	Speed	3700r/min
The weight of the	10KG(excluding outer packing)	Oil storage	2L
Oil of	32# anti-wear hydraulic oil or 7-15# hydraulic transmission oil
Product features	The hydraulic electric pump has the functions of small volume, high pressure, light weight, easy to carry, simple operation and wide application. High and low pressure two-stage output, large amount of oil; The low pressure adopts plunger type to improve the effective pressure., Single oil road, electromagnetic wire remote control, suitable for various cutting, perforation, bending, lifting and other functions; Pressure overload protection device, avoid overpressure and damage equipment; Automatic protection, to ensure that the use will not leak; Remember the pressure relay, the pressure in place can control the oil pump stop working.
