Hot Seller;500kg/h High rust resistance High quality floating fish feed extruder machine Floating Sinking Shrimp Fish Feed Machine Catfish Pet Food Extruder Processing Machinery Price

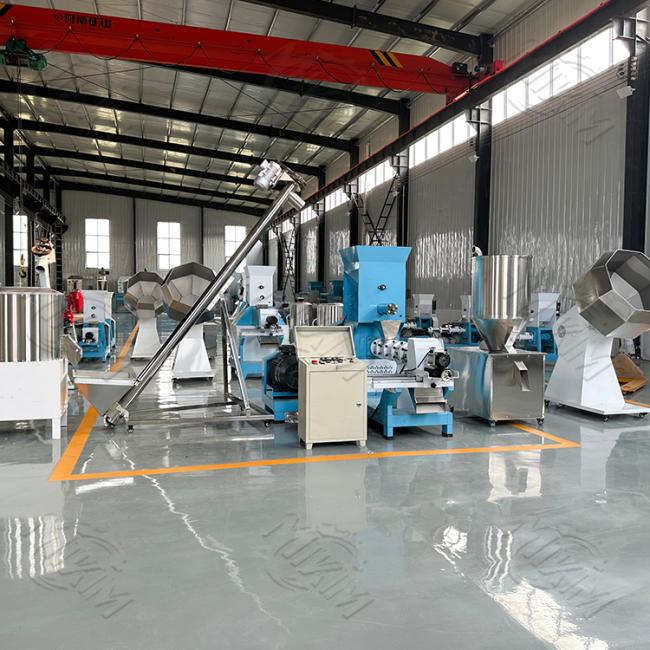

Floating Fish Pellet Feed Extruder Fish Food Pellet Machine Floating Fish Feed Pellet Making Machine
With affordable diesel and electric alternatives, our fish feed extruder manufacturing line is ideal for small businesses and home workshops. Its features include low energy usage to manage power fluctuations, uncomplicated operation requiring little training, and anti-rust materials for humid conditions. It guarantees top-notch pellets for nearby fish farms, supported by local service assistance for repairs and replacement parts. This device is perfect for the expanding aquaculture industry because it can save feed costs by up to 30%.
- Precise control of process parameters and automation to ensure optimized granule quality: gelatinization, expansion, texture and consistent quality.
- These quality criteria can be achieved because screws ensure homogeneous processing and positive pumping.
- The processing of the viscous paste does not depend on the friction between the screws and the barrel.
- The embedded automatic temperature control and adjustment systems, the modular screw configurations and screw speeds are easily programmed and contribute to the line's high performance.
mixer → screw conveyor → twin screw extruder → air conveyor → dryer → hoister → flavoring drum and oil sprayer → cooling machine → packing machine
| Parameter | DGP-100 | DGP-120 | DGP-135 | DGP-160 | DGP-200 |
|---|---|---|---|---|---|
| Capacity(kg/h) | 500 | 600-700 | 800-900 | 1000-1200 | 1800-2000 |
| Main motor(kw) | 37 | 55 | 75 | 90 | 132 |
| Feeder motor(kw) | 1.5 | 1.5 | 1.5 | 2.2 | 3 |
| Cutter motor(kw) | 1.5 | 1.5 | 2.2 | 2.2 | 3 |
| Screw diameter(mm) | φ100 | φ120 | φ135 | φ160 | φ200 |
| Machine size(m) | 2 * 2.8 * 1.2 | 2.2 * 2.9 * 1.2 | 2.2 * 3.1 * 1.37 | 2.3 * 3.15 * 1.38 | 2.35 * 3.45 * 1.65 |
| Weight(kg) | 1500 | 1800 | 2000 | 2500 | 3200 |
- Custom molds are available upon request for this fish pellet maker, which is a pellet feed extrusion device that can produce a variety of shapes.
- Having a variable-speed rotary cutting device at the discharge port that lets you customize the length and cutting rate by varying the blade's rotation speed.
- Comparing homemade extruded feed to commercial products, it lowers costs by 60% to 80%. Produces smooth, consistently formed pellets that float for more than 12 hours without sinking, improving fish health by sterilizing the water.
- The longer screw and sleeve design of the small extruder extends the time needed to cut materials. A flawless surface finish and high expansion levels are guaranteed by adjustable output torque and temperature.
- It is easy to assemble, disassemble, and maintain for user-friendly operation thanks to its innovative and distinctive design and straightforward construction.
- The screw and screw sleeve are made of high-temperature alloy steel that has been precisely heat-treated to prevent wear and provide remarkable durability and a longer service life.
- Reasonable solution and assist to select the equipment according to the clients specific requirement.
- Professional consultation of market, machinery, technical, raw material, package for you.
- Layout drawing based on your factory.
- Assist visitors make hotel reservation to enjoy the hotel agreement price.
- Feedback of order production progress and loading.
- Shipping logistics consulting service (by sea, air, land, express).
