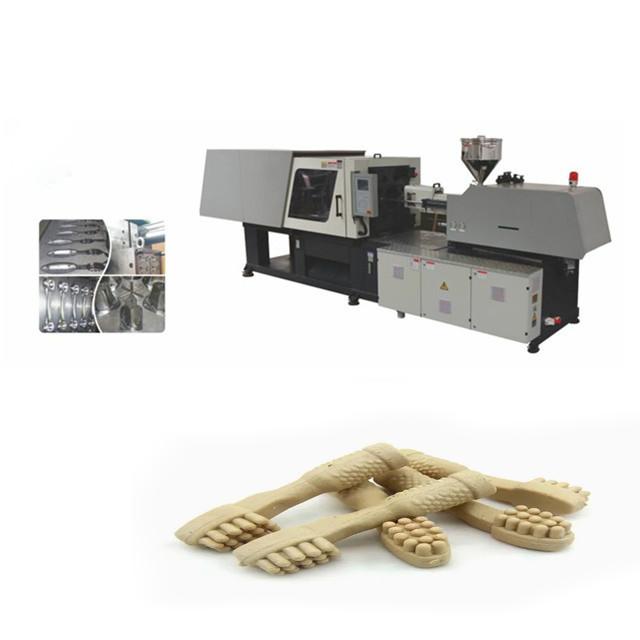

MIKIM's Dental Dog Treats/Dog Chews Snacks Injection Moulding Machine is our new research and development pet food machine. This is our unique product in pet food industry. The machine is full automatic and just need 2 workers to operate it easily. Also we have various moulds for your choice to meet the dog's interest requirement. The product is nutrition and health and the raw material is totally natural and beneficial for dog. The Mouldable dog treats can protect dog's teeth and oral cavity health.
Now in pet food industry, Dental Dog Treats/Dog Chews Snacks Injection Moulding Machine is very popular and demand increases every year. We have sold many machines running in USA, Holland, Italy, Spain, Czech and India, etc.
Contact me today and allow me to bring your idea to life.
We are dog lovers--we love bringing your ideas to market.
Technical Parameter
|
Item |
Name of item |
Unit |
MK268B-I |
|
Injection Unit |
Screw Diameter |
mm |
55 |
|
Screw L/D Ratio |
Ratio |
20 |
|
|
Injection Volume (Theoretical) |
cm |
601 |
|
|
Injection Weight (PS) |
g |
548 |
|
|
Injection Pressure |
Mpa |
185.1 |
|
|
Injection Rate into Air |
g/s |
223.7/276.1 |
|
|
Injection Stroke |
mm |
256 |
|
|
Injection Speed |
Mm/s |
95/116 |
|
|
Screw Speed |
rpm |
201/246 |
|
|
Clamping Unit |
Clamping Force |
KN |
2600 |
|
Clamping Stroke |
mm |
550 |
|
|
Space Between Tie-bars |
mm×mm |
580 x 580 |
|
|
Max. Mould Height |
mm |
600 |
|
|
Min. Mould Height |
mm |
250 |
|
|
Ejector Stroke |
mm |
160 |
|
|
Hydraulic Ejection |
KN |
68 |
|
|
Ejector Rob Quantity |
pcs |
9 |
|
|
Others |
Max. Pump Pressure |
Mpa |
17.5 |
|
Pump Motor Power |
kw |
22/30 |
|
|
Heater Power |
kw |
15.9 |
|
|
Hopper Volume |
L |
50 |
|
|
Oil Pump Volume |
L |
550 |
|
|
Machine Weight |
t |
8.5 |
|
|
Mould Positioning Ring Diam |
mm |
160 |
|
|
Sphere Radius |
mm |
SR10 |
|
|
Machine Dimension |
m x m x m |
5.82 x 2 x 2 |
