Stainless Steel Pressed Rawhide Bones Machinery , Dog bone maker Machine
Rawhide Pet Bone Pressing Machine with ISO9001 is type of Flour Column and Three Board, the upmost output tonnage is 20t.
It can be adjusted amon the range of 5t-20t according to the different products’procedures, the purpose is to arrive the best required output. Cylinder Stroke is 200mm, (slide stroke is 200mm).
And the dimension of effective working surface is 500mm*400mm, the close height is 200mm. Well, our MK-20T Pressing Machine has two types, manual operation and automatic operation, meanwhile, it can count and timing automatically, safe and protective.
In addition, our MK-20T Pressing Machine’s middle plate and lower plate open two-article T-slot respectively, the pressure system is rear-mounted and the below equips with horizontal floor mat.
Features
Rawhide pressed bones making machine could produce pet chewing bone with cowhide, pigskin or sheepskin as material. It could press the material to be various shapes and sizes.

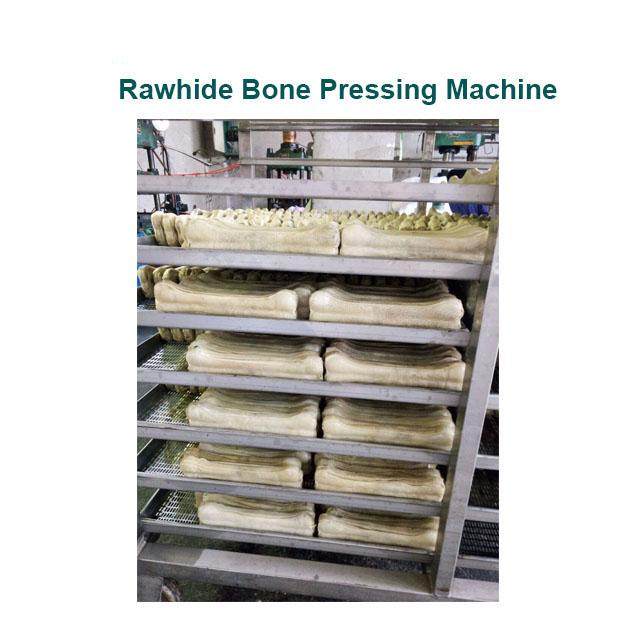

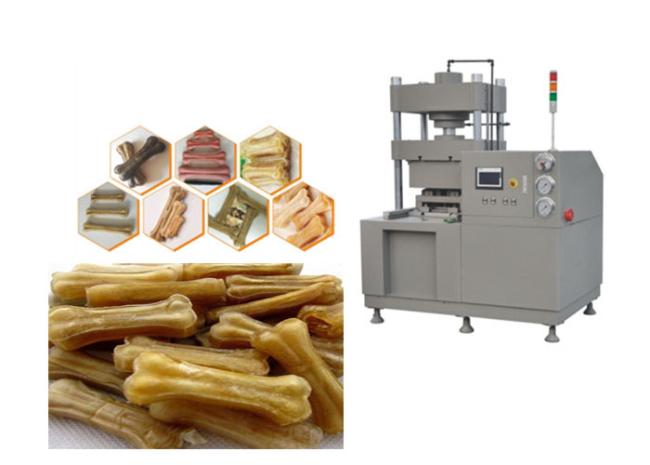

Machine Picture
Technical Parameters
|
Project |
MK-20T |
|
Liquid Pressure of Work (MPa) |
14-21 |
|
Theory Output (Ton) |
5-20 |
|
Working surface size (mm) |
Left and Right 500 |
|
|
|
|
Working surface size (mm) |
|
|
Front and Back 400 |
|
|
Height of Working Table Off the Ground(MM) |
780 |
|
Biggest Operational Height(mm) |
400 |
|
Close(mm) |
200 |
|
Cylinder Stroke(mm) |
200 |
|
Motor Power |
5.5KW |
|
Structural Style |
Flour Column Three Board |
|
|
Above Oil Cylinder |
|
Power source |
380VAC,50/60Hz |
|
Weight |
1108kg |
|
Dimension |
600*500*1780mm |
