380V , 50 / 60Hz Pressed Rawhide Bones dog snacks making machine

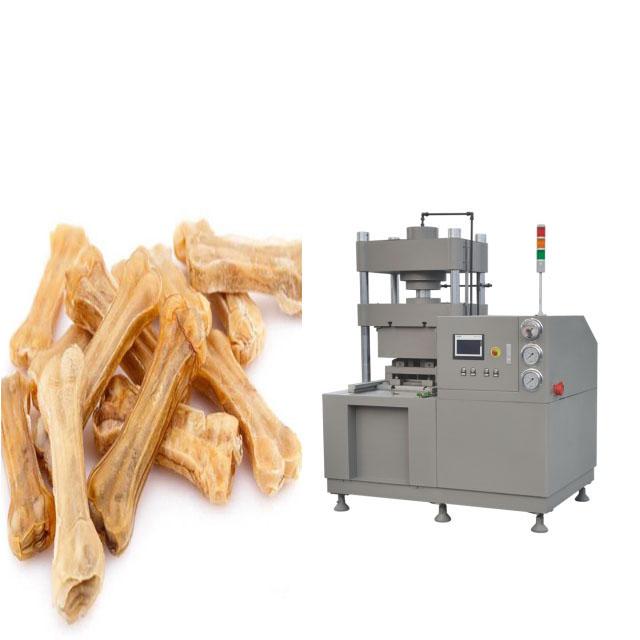

Manufacturer of Dog Rawhide Chewing Bones Pressing Machine
Rawhide Dog Snacks Making Machine Manufacturer could produce pet chewing bone with cowhide, pigskin or sh-eepskin as material. It could press the material to be various shapes and sizes.
Features
1, It can be adjusted among the range of 5t-20t according to the different products’ procedures, the purpose is to arrive the best required output. Cylinder Stroke is 200mm, (slide stroke is 200mm).
2, The dimension of effective working surface is 500mm*400mm, the close height is 200mm. Well, our DR-200 Punching Machine has two types, manual operation and automatic operation, meanwhile, it can count and timing automatically, safe and protective.
3, Punching Machine’s middle plate and lower plate open two-article T-slot respectively, the pressure system is rear-mounted and the below equips with horizontal floor mat.
Technical Parameters
|
Project |
MK-20T |
|
Liquid Pressure of Work (MPa) |
14-21 |
|
Theory Output (Ton) |
5-20 |
|
|
Left and Right 500 |
|
|
|
|
Working surface size (mm) |
|
|
Front and Back 400 |
|
|
Height of Working Table Off the Ground(MM) |
780 |
|
Biggest Operational Height(mm) |
400 |
|
Close(mm) |
200 |
|
Cylinder Stroke(mm) |
200 |
|
Motor Power |
5.5KW |
|
Structural Style |
Flour Column Three Board |
|
|
Above Oil Cylinder |
|
Power source |
380VAC,50/60Hz |
|
Weight |
1108kg |
|
Dimension |
600*500*1780mm |
Sample Picture
