Manual / Automatic Operation Dog Bone Making Machine For Dog Treats Rawhide Bone

Price Negotiable
Price: Negotiation
MOQ: 1 set
Delivery Time: 45darys
Brand: Mikim
Product Description


Manual / automatic operation Rawhide Bone Hydraulic Machine For Dog Treats​

Dog Chews Rawhide Machine, Dog Chews Machine, Dog Chew Bone Machine can produce pet chewing bone with cowhide, pigskin, beef tendons or sheepskin as material. It could press the material to be various shapes and sizes.​
Features

1, This Punching Machine is type of Flour Column and Three Board, the up-most output tonnage is 20t.

2, It can be adjusted among the range of 5t-20t according to the different products’ procedures, the purpose is to arrive the best required output. Cylinder Stroke is 200mm, (slide stroke is 200mm).

3, The dimension of effective working surface is 500mm*400mm, the close height is 200mm. Well, our MK-200 Punching Machine has two types, manual operation and automatic operation, meanwhile, it can count and timing automatically, safe and protective.

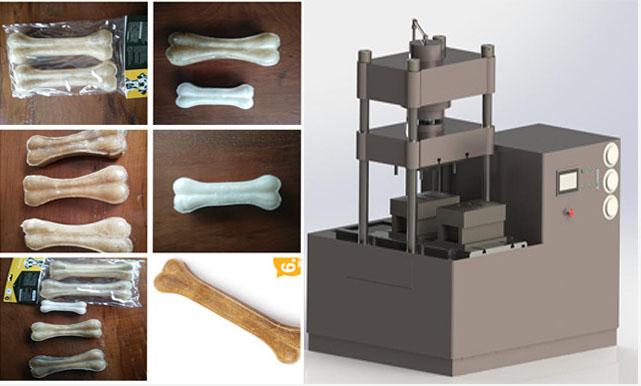

 Automatic Operation Dog Bone Making Machine


Technical Parameters


Project

MK-20T

Liquid Pressure of Work (MPa)

14-21


Theory Output (Ton)

5-20

 Working surface size (mm)

Left and Right 500



Working surface size (mm)



Front and Back 400

Height of Working Table Off the Ground(MM)

780

Biggest Operational Height(mm)

400

Close(mm)

200

 Cylinder Stroke(mm)

200

Motor Power

5.5KW

Structural Style

Flour Column Three Board



Above Oil Cylinder

 Power source

380VAC,50/60Hz

Weight

1108kg

Dimension

600*500*1780mm

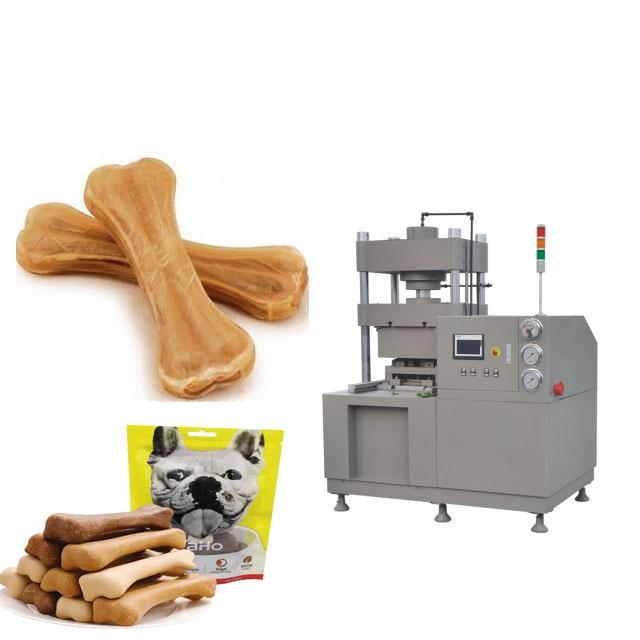

Automatic Operation Dog Bone Making Machine
