MK268 Pet Treats Molding Dog Food Production Line For Producing Pet Snacks
Injection Dog teeth fresh treats molding machine
Introduction
Pet injection snack molding machine from the mold to determine the shape of molding, injection molding, mass production.Simple operation, favored by the majority of customers, exported to many countries and regions at home and abroad
With our new technology of combination screws,our twin screw extruder production line is applied to produce
different pet food with various raw material and nutrient elements.The production technology parameters are controlled precisely.
Through extruding,the degraded protein is easy to absorbed.Meanwhile ,with relevant palatability supplementary project,
the production process can fulfill the chewing feel of pets.
MK 268B-I Pet Treats Molding Machine is special machinery for producing pet snacks.
Injection Molding Machine is a manufacturing process for producing parts (such as dog Treats, Eating Toys and different products) in large volume. It is most typically used in mass-production processes where the same part is being created thousands or even millions of times in succession.
Flexible configurations to meet different produce, budget and workshop layout requirement.
Vast raw material range to produce different final products by only one production line.
Different shapes and appearances of final products can be made by changing different modules in extruder.
High automation and accurate control system to save labor cost and improve the quality of final products.
|
Item
|
Name of item
|
Unit
|
MK-268
|
|
|
Screw Diameter
|
mm
|
55
|
||
|
Screw L/D Ratio
|
Ratio
|
20
|
||
|
Injection Volume (Theoretical)
|
cm
|
601
|
||
|
Injection Weight (PS)
|
g
|
548
|
||
|
Injection Pressure
|
Mpa
|
185.1
|
||
|
Injection Rate into Air
|
g/s
|
223.7/276.1
|
||
|
Injection Stroke
|
mm
|
256
|
||
|
Injection Speed
|
Mm/s
|
95/116
|
||
|
Screw Speed
|
rpm
|
201/246
|
||
|
Clamping Unit
|
Clamping Force
|
KN
|
2600
|
|
|
Clamping Stroke
|
mm
|
550
|
||
|
Space Between Tie-bars
|
mm×mm
|
580 x 580
|
||
|
Max. Mould Height
|
mm
|
600
|
||
|
Min. Mould Height
|
mm
|
250
|
||
|
Ejector Stroke
|
mm
|
160
|
||
|
Hydraulic Ejection
|
KN
|
68
|
||
|
Ejector Rob Quantity
|
pcs
|
9
|
||
|
Others
|
Max. Pump Pressure
|
Mpa
|
17.5
|
|
|
Pump Motor Power
|
kw
|
22/30
|
||
|
Heater Power
|
kw
|
15.9
|
||
|
Hopper Volume
|
L
|
50
|
||
|
Oil Pump Volume
|
L
|
550
|
||
|
Machine Weight
|
t
|
8.5
|
||
|
Mould Positioning Ring Diam
|
mm
|
160
|
||
|
Sphere Radius
|
mm
|
SR10
|
||
|
Machine Dimension
|
m x m x m
|
5.82 x 2 x 2
|
||

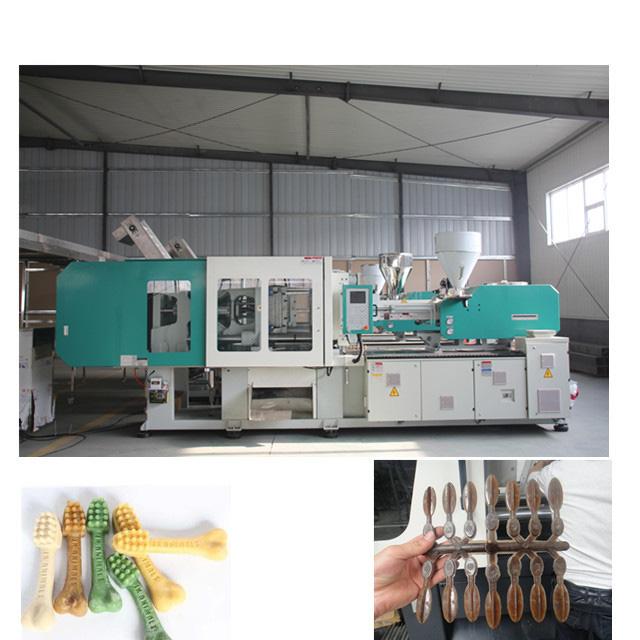

Machine Photo for Fresh Dog Treats Injection Molding Machine

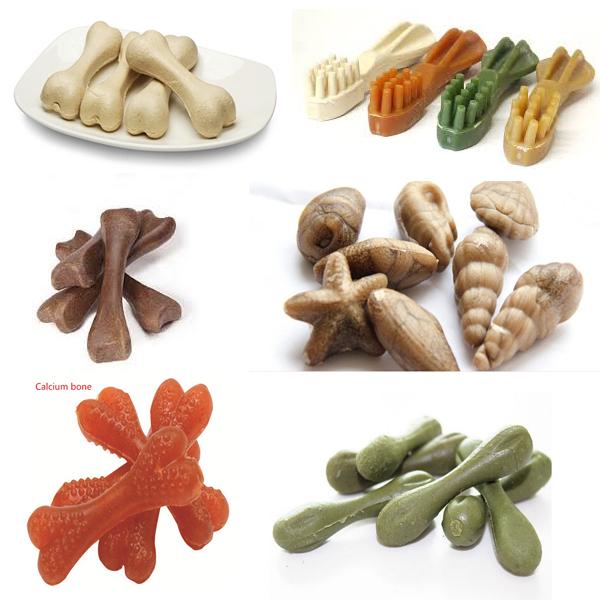

Sample Photo for Dog Food Injection Dog Treats Making Machine
Certificate for pet treats molding machine
Exhibition
Delivery Term: FOB Qingdao, by vessel
Delivery Time: 45 working days
Package: We could supply Export Standard Wooden Case, suitable for long trip and loading & unloading by forklift.
Payment Terms: T/T or L/C (30% to pay by T/T as down payment while signing the contract; the rest 70% is paid by T/T or L/C at sight before delivery.)
Installation / Operation / Service / Maintenance Manual: In English
Machine Drawing / Layout: Detail in AutoCAD format (as for actual workshop)
Installation team: Commissioning service provided for 7-10 days. The client bears the technician’s round-trip flight tickets, accommodations and daily salary of USD 100.
Warranty: One year from the date of completion of the commissioning
Pre-shipment Inspection: Supplier should trial run whole line at supplier’s factory before shipment.
