-10KPA - 40KPA Roots Blower Vacuum Pump DN150 lobe rotary type blower
-10KPA - 40KPA Roots Blower Vacuum Pump DN150, lobe rotary
About BV6015 Vacuum Blower
BV6015 vacuum blower is a kind of displacement Roots type air pump. It can reach -40KPA vacuum pump. It is widely used for vacuum air conveying and if featured of stable performance and excellent volumetric efficiency.
Specifications
|
Model |
BV6015 |
|
Air capacity |
14.68-39.13m3/min |
|
Discharge differential pressure |
-10 ~ -40KPA |
|
Rotary speed |
850-1800rpm |
|
Motor type |
11-22/30/37-45KW 380/400/415/440V, 3PHASES, 50/60HZ |
|
Installation type |
Standard: horizontal type. Vertical type available for your option |
|
N.W. of blower without motor |
380kg |
|
Packing size Approx. |
1.8*1.2*1.95m (length*width*height) |
Parameter sheet
|
Art No. |
Port |
Speed |
-0.1kgf/cm2 |
-0.2kgf/cm2 |
-0.3kgf/cm2 |
- 0.4kgf/cm2 |
||||
|
-1000mmH2O |
-2000mmH2O |
-3000mmH2O |
-4000mmH2O |
|||||||
|
-0.01Mpa |
-0.02Mpa |
-0.03Mpa |
-0.04Mpa |
|||||||
|
rpm |
m3/min |
KW |
m3/min |
KW |
m3/min |
KW |
m3/min |
KW |
||
|
BV6015 |
150(6") |
850 |
17.17 |
4.71 |
16.13 |
8.24 |
15.35 |
11.22 |
14.68 |
14.22 |
|
1000 |
20.64 |
5.54 |
19.60 |
9.70 |
18.81 |
13.20 |
18.14 |
16.73 |
||
|
1150 |
24.10 |
6.37 |
23.06 |
11.15 |
22.28 |
15.19 |
21.61 |
19.24 |
||
|
1250 |
26.42 |
6.92 |
25.38 |
12.12 |
24.59 |
16.51 |
23.92 |
20.91 |
||
|
1400 |
29.88 |
7.75 |
28.84 |
13.57 |
28.06 |
18.49 |
27.39 |
23.42 |
||
|
1500 |
32.19 |
8.31 |
31.15 |
14.54 |
30.37 |
19.81 |
29.70 |
25.10 |
||
|
1650 |
35.66 |
9.14 |
34.62 |
16.00 |
33.83 |
21.79 |
33.16 |
27.61 |
||
|
1800 |
39.13 |
9.97 |
38.09 |
17.45 |
37.30 |
23.77 |
36.63 |
30.12 |
||

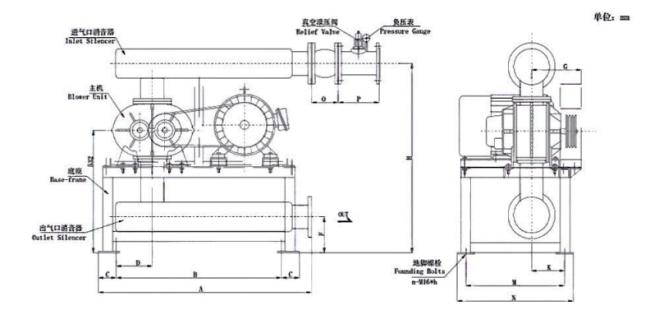

Assembling drawing of blower package
| BV Outline Dimension Sheet | Unit:mm | |||||||||||||||||
Type |
Port Dia |
Motor power |
A | B | C | D | E | F | G | H | K | M | N | 0 | P | Q | n-M16×h | Weight (kg) |
| BV6015 | 150(6") | 11～22 | 1340 | 1064 | 113 | 222 | 748 | 232 | 364 | 1460 | 238 | 476 | 573 | 180 | 280 | 24 | 4-M16×400 | 380 |
| 30 | 539 | 636 | ||||||||||||||||
| 37～45 | 563 | 660 | ||||||||||||||||
| Standard accessories include:intake, outlet muffler, negative pressure gauge,base,belt cover,vacuum relief valve,triangular belt. | ||||||||||||||||||
| The weight above are for standard accessories only,motor excluded. | ||||||||||||||||||
Standard supply of scope
1. blower main body
2. vacuum safety valve
3. inlet silencer
4. outlet silencer
5. public base (with belt cover)
6. rubber flexible joint and shock pad
7. blower pulley
8. pressure gauge
9. belt
10. bolts and nuts and other connection parts
11. motor
