-30KPA Roots Vacuum Pump , vacuum air conveying positive roots blower
-30KPA Roots Blower Vacuum Pump, vacuum air conveying roots blower
About BK vacuum pump
BK vacuum pump is designed for vacuum use by changing the outlet and inlet of positive roots blower. Its vacuum pressure covers -10KAP to -40KPA. It is widely applied in food conveying, metallurgy, chemical industry and electronic coating. It is featured of stable operation and reliable performance.
Specifications
|
Model |
BV6008 |
| Inlet dimension | DN125 |
| Outlet dimension | DN125 |
|
Air capacity |
7.38-20.63m3/min |
|
Discharge differential pressure |
-10 ~ -40KPA |
|
Rotary speed |
850-1800rpm |
|
Motor type |
5.5-7.5/11-15/18.5-22/30/37-45KW 380/400/415/440V, 3PHASES, 50/60HZ |
|
Installation type |
Standard: horizontal type. Vertical type available for your option |
|
N.W. of blower without motor |
290kg |
|
Packing size Approx. |
1.5*1.05*1.75m (length*width*height) |
Parameter sheet
| Model | Port Dia (MM) |
Speed | Inlet capacity (m3/min)and shaft power (KW) | |||||||
| -0.1kgf/cm2 | -0.2kgf/cm2 | -0.3kgf/cm2 | -0.4kgf/cm2 | |||||||
| -1000mmH2O | -2000mmH2O | -3000mmH2O | -4000mmH2O | |||||||
| -0.01Mpa | -0.02Mpa | -0.03Mpa | -0.04Mpa | |||||||
| rpm | m3/min | KW | m3/min | KW | m3/min | KW | m3/min | KW | ||
| BV6008 | 125(5") | 850 | 8.93 | 2.60 | 8.29 | 4.58 | 7.80 | 6.16 | 7.38 | 7.75 |
| 1000 | 10.78 | 3.05 | 10.13 | 5.39 | 9.64 | 7.24 | 9.22 | 9.11 | ||
| 1150 | 12.62 | 3.51 | 11.98 | 6.20 | 11.49 | 8.33 | 11.07 | 10.48 | ||
| 1250 | 13.85 | 3.82 | 13.21 | 6.74 | 12.72 | 9.05 | 12.30 | 11.39 | ||
| 1400 | 15.70 | 4.28 | 15.06 | 7.55 | 14.57 | 10.14 | 14.15 | 12.76 | ||
| 1500 | 16.93 | 4.58 | 16.29 | 8.08 | 15.80 | 10.86 | 15.38 | 13.67 | ||
| 1650 | 18.78 | 5.04 | 18.14 | 8.89 | 17.65 | 11.95 | 17.23 | 15.04 | ||
| 1800 | 20.63 | 5.50 | 19.99 | 9.70 | 19.49 | 13.04 | 19.08 | 16.40 | ||

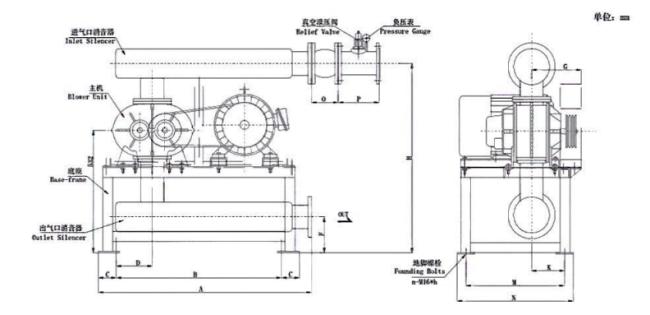

Assembling drawing of blower package
| BV Outline Dimension Sheet | Unit:mm | |||||||||||||||||
Type |
Port Dia |
Motor power |
A | B | C | D | E | F | G | H | K | M | N | 0 | P | Q | n-M16×h | Weight (kg) |
| BV6008 | 125(5") | 5.5～7.5 | 1335 | 1084 | 110 | 222 | 688 | 206 | 297 | 1375 | 150 | 300 | 385 | 165 | 250 | 18 | 4-M16×400 | 290 |
| 11～15 | 410 | 495 | ||||||||||||||||
| 18.5～22 | 455 | 540 | ||||||||||||||||
| 30 | 495 | 580 | ||||||||||||||||
| 37～45 | 560 | 645 | ||||||||||||||||
| Standard accessories include:intake, outlet muffler, negative pressure gauge,base,belt cover,vacuum relief valve,triangular belt. | ||||||||||||||||||
| The weight above are for standard accessories only,motor excluded. | ||||||||||||||||||
Standard supply of scope
1. blower main body
2. vacuum safety valve
3. inlet silencer
4. outlet silencer
5. public base (with belt cover)
6. rubber flexible joint and shock pad
7. blower pulley
8. pressure gauge
9. belt
10. bolts and nuts and other connection parts
11. motor
