Cast Iron Roots Blower Vacuum Pump , vacuum roots blower for chemical industry
Cast Iron Roots Blower Vacuum Pump, vacuum roots blower, convey vacuum air
About BK vacuum pump
Based on our BK series positive Roots blower, we developed BK vacuum pump for vacuum application.
Its maximum vacuum pressure can reach -40KPA. Widely applied in vacuum application in food conveying, metallurgy, chemical industry,electronic coating and other industries, it is the reliable and perfect product due to its good vacuum performance and stable vacuum air capacity input.
Specifications
|
Model |
BV7011 |
| Inlet dimension | DN150 |
| Outlet dimension | DN150 |
|
Air capacity |
11.41-31.51m3/min |
|
Discharge differential pressure |
-10 ~ -40KPA |
|
Rotary speed |
700-1500rpm |
|
Motor type |
11-15/18.5-22/30/37-45KW |
| Motor efficiency grade | IE3 |
| Moror insulation class | F, temperature rising B |
| Motor protection class | IP55 |
|
Installation type |
Standard: horizontal type. |
|
N.W. of blower without motor |
477kg |
|
Packing size Approx. |
1.8*1.2*2.0m (length*width*height) |
Parameter sheet
| Model | Port Dia (MM) |
Speed | Inlet capacity (m3/min)and shaft power (KW) | |||||||
| -0.1kgf/cm2 | -0.2kgf/cm2 | -0.3kgf/cm2 | -0.4kgf/cm2 | |||||||
| -1000mmH2O | -2000mmH2O | -3000mmH2O | -4000mmH2O | |||||||
| -0.01Mpa | -0.02Mpa | -0.03Mpa | -0.04Mpa | |||||||
| rpm | m3/min | KW | m3/min | KW | m3/min | KW | m3/min | KW | ||
| BV7011 | 150(6") | 700 | 13.57 | 3.77 | 12.67 | 6.60 | 11.97 | 8.98 | 11.41 | 11.87 |
| 850 | 16.93 | 4.57 | 16.03 | 8.01 | 15.34 | 10.90 | 14.78 | 14.41 | ||
| 1000 | 20.29 | 5.38 | 19.40 | 9.42 | 18.70 | 12.83 | 18.14 | 16.95 | ||
| 1150 | 23.66 | 6.19 | 22.76 | 10.84 | 22.07 | 14.75 | 21.50 | 19.50 | ||
| 1250 | 25.90 | 6.73 | 25.00 | 11.78 | 24.31 | 16.03 | 23.75 | 21.19 | ||
| 1400 | 29.26 | 7.53 | 28.37 | 13.19 | 27.67 | 17.96 | 27.11 | 23.73 | ||
| 1500 | 31.51 | 8.07 | 30.61 | 14.13 | 29.91 | 19.24 | 29.35 | 25.43 | ||

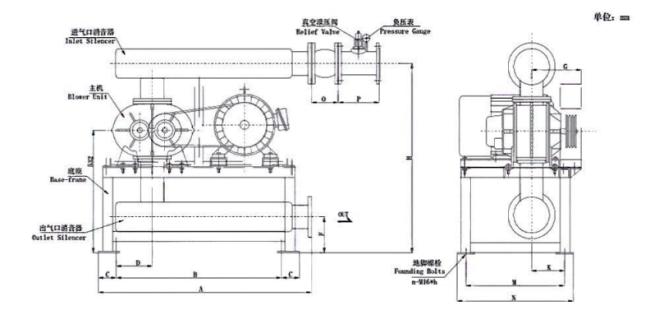

Assembling drawing of blower package
Vertical installation also available
| BV Outline Dimension Sheet | Unit:mm | |||||||||||||||||
Type |
Port Dia |
Motor power |
A | B | C | D | E | F | G | H | K | M | N | 0 | P | Q | n-M16×h | Weight (kg) |
| BV7011 | 150(6") | 11～15 | 1495 | 1200 | 123 | 271 | 829 | 232 | 324 | 1484 | 190 | 443 | 536 | 180 | 280 | 24 | 4-M16×400 | 477 |
| 18.5～22 | 457 | 550 | ||||||||||||||||
| 30 | 497 | 590 | ||||||||||||||||
| 37～45 | 559 | 652 | ||||||||||||||||
| Standard accessories include:intake, outlet muffler, negative pressure gauge,base,belt cover,vacuum relief valve,triangular belt. | ||||||||||||||||||
| The weight above are for standard accessories only,motor excluded. | ||||||||||||||||||
Standard supply of scope
1. blower main body
2. vacuum safety valve
3. inlet silencer
4. outlet silencer
5. public base (with belt cover)
6. rubber flexible joint and shock pad
7. blower pulley
8. pressure gauge
9. belt
10. bolts and nuts and other connection parts
11. motor

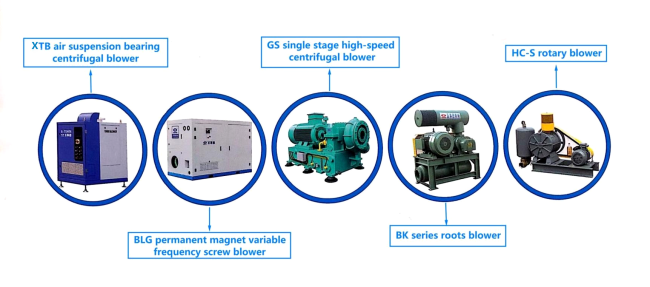

Main Products
