D Series Input Flow 85m³/min, Pressure 39.2-78.5KPa, Water Treatment Multi-stage Centrifugal Blower
Low Noise Multistage Centrifugal Blower, wastewater treatment air blower
About D series mult-stage centrifugal blower
1,Conveying medium: clean air, natural gas, biogas, methane, hydrogen, etc.
2,Material of impeller: casting steel & aluminum alloy
3,Cooling method: air cooling or water cooling
4,Driving method: belt transmission
5,Application: Water and waste water treatment, vacuum dust cleaning, air knife drying, the flotation and separation, zinc plating and electroplating, oxygen filling, paper making and printing, and air combustion etc. fields.
Specifications
| Model | Inlet Flow m³/min | Inlet Pressure kPa | Inlet Temperature℃ | Set-up Pressure | Speed r/min | Shaft Power kW | Motor Power kW | Weight(Excluding Motor)KG | |
| kPa | mmH₂O | ||||||||
| D85-1.4 | 85 | 98 | 20 | 39.2 | 4000 | 2950 | 76 | 90 | 2600 |
| D85-1.5 | 85 | 98 | 20 | 49 | 5000 | 2950 | 92 | 110 | 2800 |
| D85-1.6 | 85 | 98 | 20 | 58.8 | 6000 | 2950 | 109 | 132 | 3100 |
| D85-1.7 | 85 | 98 | 20 | 68.6 | 7000 | 2950 | 116 | 160 | 3700 |
| D85-1.8 | 85 | 98 | 20 | 78.5 | 8000 | 2950 | 123 | 160 | 3900 |
Features
1. Vibration on bearings < 2.5mm/s for all fans and blowers
2. Long service life
3. Low noise: High efficiency type noise, sound proofed with obstacle exists, so there's nearly no noise outside the blower room.
4. Low running cost: energy consumption than other type blowers.
5. High efficiency
6. Heavy duty and sturdy construction
7. Oil free
8. Air capacity adjustable by inlet butterfly valve
Structure of blower main body
Assembling drawing of blower package
Standard supply of scope
1. Blower main body
2. Inlet muffler (with air filter)
3. Public base for motor and blower(including coupling cover)
4. Inlet manual butterfly valve
5. Motor
6. Pressure gauge
7. Mounting bolts and connection accessories
8. Check valve

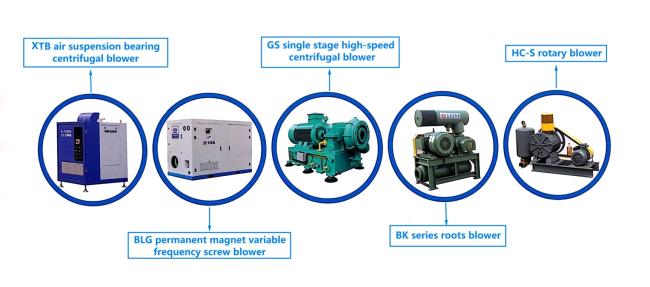

Main Products
About us
①In 1994,Yixing Pengde Machinery Co.,Ltd. ( a Sino-Japanese joint Venture) was born,and relocated in the Industrial Park for Environmental SCI and TECH. The following year with company name changed to B-Tohin Machine (Jiangsu)Co.,Ltd.
②Localization of HC blower in 1996
③In 1999,established a joint venture named Tohin Machine Co.,Ltd. with TUTHILL Pneumatics Group (United States).
④Localization and mass sales of BK blower in 2000
⑤In 2004,HC Blower and BK Blower got the honor of “new high-tech product”,and the company was rated as a high-tech enterprise. In the same year,the company passed ISO9001 certification,purchased more than 30000 square meters for new plant and donated 500000 yuan to build the B-Tohin Qinghu Hope Middle School.
⑥In 2009,the single-stage high-speed blower was successfully launched, and BK was rated as famous trademark of Wuxi City and famous trademark of Jiangsu Province.The torch program project of Jiangsu Province and a number of patents were achieved ,also the company’s together-with-heart idea: attentively,sincerely,confidently was put forward.
⑦The company’s BK brand was rated as “China Well-known Trademark” in 2013.
⑧In 2014,the company was identified as “Jiangsu Aerodynamic Research Center” by the Science &Technology Department of Jiangsu Province,and got the ISO14001 certificate.At the same time,Office Automation was put into use successfully.
⑨In 2015,the company introduced a whole blower performance test system.Successfully bid for the 2600 square meters industrial assets in Yixing economic development zone and established Wuxi B-Tohin Blower Technology Co.,Ltd.
⑩In 2016, Sino-Korean joint venture Wuxi B-Tohin & Ace Blower Science and Technology Co.,Ltd. was established. In the same year,air foil centrifugal blower was successfully introduced,and Tohin Vietnam Industry was founded.
⑪In 2017,the company turned on the Internet of things intelligent ,the balance tester of Air Bearing Turbo Centrifugal blower was successfully put into use .The Science and Technology Association of B-Tohin was founded.
⑫In 2018, B-Tohin magnetic suspension centrifugal blower,stainless steel blower and other new products were successfully launched.
⑬In2019,Adopted the ERP platform management in the whole company and passed the assessment of “Informational and Industrialize Integration” in 2019.
⑭B-Tohin screw blower was put on market successfully in 2021.
⑮Launched contract energy management and new type product lease sales in 2022.With a new area of 75000 square meters acquired, the project of design and intelligent manufacturing base of high efficiency blower and office building of B-Tohin started.

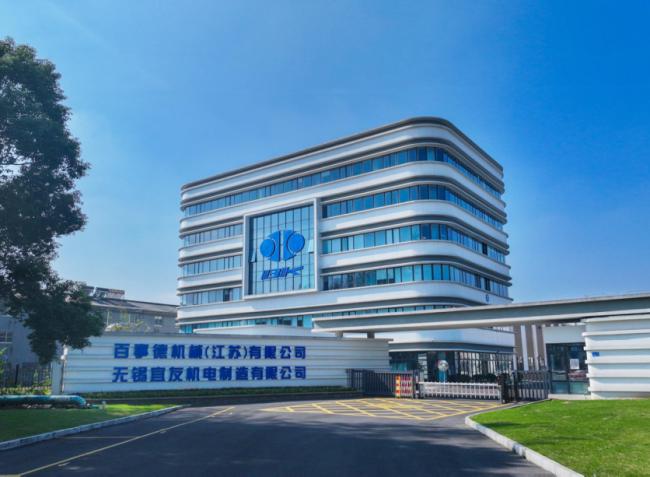

The new factory building was successfully completed and relocated.
