D Type 98KPA Inlet Pressure Multistage Centrifugal Blower For Water Treatment
D type 98KPA inlet pressure Multistage Centrifugal Blower for water treatment
Principle of multi-stage centrifugal fan
Centrifugal blower, its principle is to rely on the impeller of the role of the gas to increase the gas pressure, the
motor drives the fan impeller rotates, gases between the impeller spins, and under the action of centrifugal
force throws the gas, gas flow rate increases, the gas kinetic energy is converted to static pressure in the flow
of energy, and then with the fluid pressure, can make static pressure can be converted to velocity, gas
discharge through the vent port.

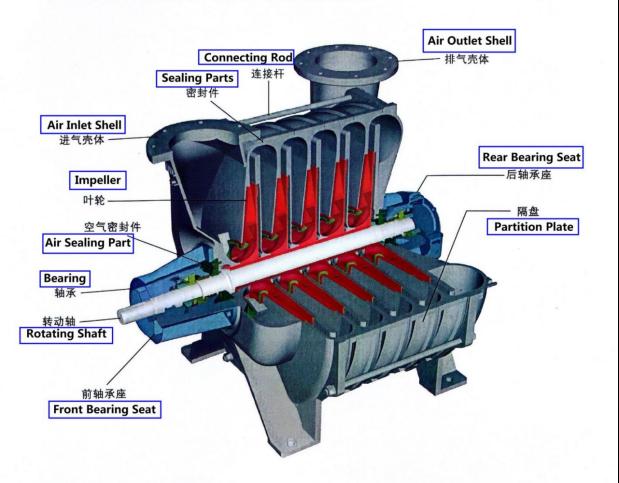

Equipment organization chart
Performance improvement of multi-stage centrifugal fan
It can improve the lubrication condition of the bearing and prolong the service life of the bearing.
2,Linearity of rotor
The efficiency of the multi-stage centrifugal fan is increased by 3% to 5%, and the temperature rise of the
noise and fan is reduced by optimizing the design of the multi-stage centrifugal fan impeller linearitly from
the binary flow to the three-element flow.
The regulating mode of multi-stage centrifugal fan.
1,flux adjustable
The multi-stage centrifugal blower can adjust the flow rate (50%--100%) through the inlet butterfly valve,
and it can also adjust the flow by adjusting the speed of the variable frequency motor, and the range can be
up to 40%, which can effectively save energy.
2,pressure adjustable
The pressure of the multi-stage centrifugal blower can be adjusted by adjusting the speed of the motor.

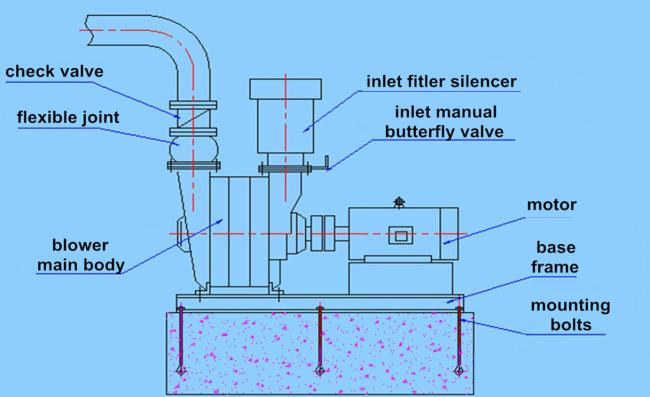

Equipment piping layout
Specifications
| Model | Inlet Flow m³/min | Inlet Pressure kPa | Inlet Temperature℃ | Set-up Pressure | Speed r/min | Shaft Power kW | Motor Power kW | Weight(Excluding Motor)KG | |
| kPa | mmH₂O | ||||||||
| D20-1.4 | 20 | 98 | 20 | 39.2 | 4000 | 2950 | 20 | 30 | 2200 |
| D20-1.5 | 20 | 98 | 20 | 49 | 5000 | 2950 | 24 | 30 | 2300 |
| D20-1.6 | 20 | 98 | 20 | 58.8 | 6000 | 2950 | 29 | 37 | 2600 |
| D20-1.7 | 20 | 98 | 20 | 68.6 | 7000 | 2950 | 34 | 45 | 3000 |
competitive advantage
The company takes on Keep improving our forever seeking: Satisfy customers our invariable promise as its
tenet and has won high credit from the market. The company successfully got the certificate of high-tech
enterprise.
The honor belongs to the past. We will work harder to design and manufacture more perfect products to
satisfy all the customers around the world and we will make more dedication to our mechanism industry!
B-tohin Machine(Jiangsu) Co., Ltd is a Sino-foreign joint venture which founded in November 1994.
The company is working on producing and selling centrifugal for two decades. During the production, the
company adopts the advanced equipments and technology overseas, and using advanced quality
management type to manage the company. All the products are widely used in environmental protection,
electricity, irrigation works, chemical industry, construction, food supplies, gas transportation and so on.
