Positive Displacement Cast Iron Roots Type Air Blower For Ash Blowing In Power Plant
Positive displacement cast iron Roots blower for ash blowing in power plant

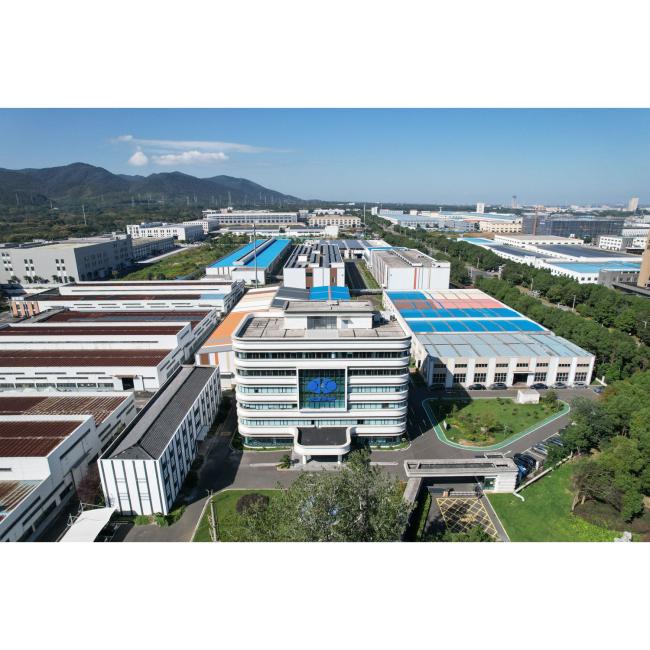

1. Company brief
By advanced production & test equipment, technology and management method introduced from abroad, by advanced management software, B-Tohin Machine ( Jaingsu ) Co.,Ltd. is committed to the production of high efficient and energy-saving blowers. And it's our sincere wish that we supply high-
quality products and good service.
2. Performance Parameters Sheet of BK6008
| Model | BK6008 |
| Air capacity | 6.49-20.01m3/min |
| Discharge differential pressure | 10-80KPA |
| Rotary speed | 850-1800rpm |
| Motor type | 3-22KW 380/400/415/440V/220V, 3PHASES, 50/60HZ, frequencytype |
| Installation type | Standard: horizontal type |
*For different installation type and materials, please feel free to contact us.
| Model | Port Dia (MM) | Speed | Inlet airflow (m3/min)and shaft power(KW) | |||||||||||||||
| 0.1kgf/cm2 | 0.2kgf/cm2 | 0.3kgf/cm2 | 0.4kgf/cm2 | 0.5kgf/cm2 | 0.6kgf/cm2 | 0.7kgf/cm2 | 0.8kgf/cm2 | |||||||||||
| 1000mmH2O | 2000mmH2O | 3000mmH2O | 4000mmH2O | 5000mmH2O | 6000mmH2O | 7000mmH2O | 8000mmH2O | |||||||||||
| 0.01Mpa | 0.02Mpa | 0.03Mpa | 0.04Mpa | 0.05Mpa | 0.06Mpa | 0.07Mpa | 0.08Mpa | |||||||||||
| rpm | m3/min | KW | m3/min | KW | m3/min | KW | m3/min | KW | m3/min | KW | m3/min | KW | m3/min | KW | m3/min | KW | ||
| BK6008 | 125 (5") | 850 | 8.66 | 2.54 | 8.04 | 4.49 | 7.56 | 6.03 | 7.16 | 7.59 | 6.81 | 9.40 | 6.49 | 11.21 | ||||
| 1000 | 10.45 | 2.99 | 9.83 | 5.28 | 9.35 | 7.10 | 8.95 | 8.93 | 8.60 | 11.06 | 8.28 | 13.19 | 7.98 | 14.81 | 7.72 | 16.85 | ||
| 1150 | 12.24 | 3.44 | 11.62 | 6.07 | 11.14 | 8.16 | 10.74 | 10.27 | 10.39 | 12.72 | 10.07 | 15.17 | 9.77 | 17.03 | 9.51 | 19.37 | ||
| 1250 | 13.44 | 3.74 | 12.82 | 6.60 | 12.34 | 8.87 | 11.93 | 11.16 | 11.59 | 13.82 | 11.26 | 16.49 | 10.97 | 18.51 | 10.70 | 21.06 | ||
| 1400 | 15.23 | 4.19 | 14.61 | 7.39 | 14.13 | 9.94 | 13.72 | 12.50 | 13.38 | 15.48 | 13.06 | 18.46 | 12.76 | 20.73 | 12.49 | 23.59 | ||
| 1500 | 16.42 | 4.49 | 15.80 | 7.92 | 15.33 | 10.65 | 14.92 | 13.40 | 14.57 | 16.59 | 14.25 | 19.78 | 13.95 | 22.22 | 13.69 | 25.27 | ||
| 1650 | 18.22 | 4.94 | 17.59 | 8.72 | 17.12 | 11.71 | 16.71 | 14.74 | 16.36 | 18.25 | 16.04 | 21.76 | 15.74 | 24.44 | 15.48 | 27.80 | ||
| 1800 | 20.01 | 5.39 | 19.39 | 9.51 | 18.91 | 12.78 | 18.50 | 16.08 | 18.16 | 19.91 | 17.83 | 23.74 | 17.54 | 26.66 | 17.27 | 30.32 | ||
3. Structure Drawings
1) Working smoothly as helical timing gears is adopted.
2) It is flexible mounting ways because of the same structure in inlet and outlet.
3) It adopts more reasonable bearing structure, which can increase the bearing operation life.
4) It is low noise, vibration and energy consumption.
Optional accessories and equipment
Blower enclosure
