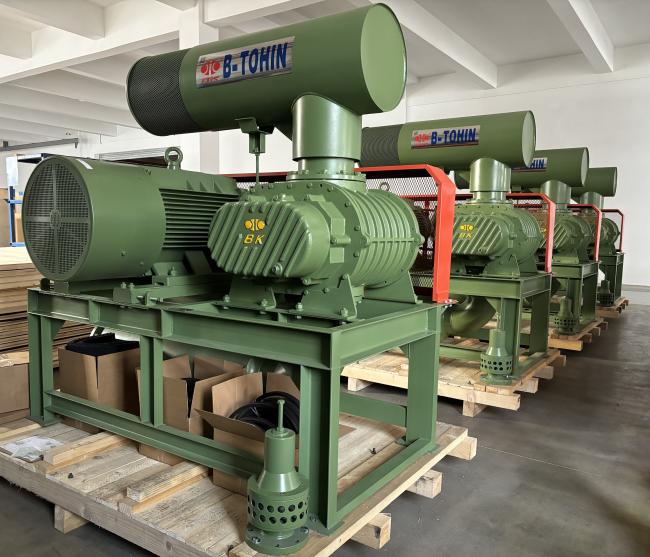

Positive Displacement Three Lobe Roots Blower For Conveying In Cement Plant
Positive displacement cast iron Roots blower for ash blowing in power plant
1. Company brief
By advanced production & test equipment, technology and management method introduced from abroad, by
advanced management software, B-Tohin Machine ( Jaingsu ) Co.,Ltd. is committed to the production of high
efficient and energy-saving blowers. And it's our sincere wish that we supply high-quality products and good service.
2. Performance Parameters Sheet of BK6008
| Model | BK6008 |
| Air capacity | 6.49-20.01m3/min |
| Discharge differential pressure | 10-80KPA |
| Rotary speed | 850-1800rpm |
| Motor type | 5.5-45KW 380/400/415/440V/220V, 3PHASES, 50/60HZ, frequencytype |
| Installation type | Standard: horizontal type |
*For different installation type and materials, please feel free to contact us.
Manufacturing standards and specifications
The products provided by the supplier are manufactured according to the following standards:
1.1 JISB8341-1995 "Displacement compressor test and inspection method"
1.2 JB/T8941.1-1999 "Conditions for Roots Blower for General Application"
1.3 JB/T8941.2-1999 "Performance Test Method for Roots Blower for General Application "
1.4 GB/T 13306-91 GB / T 13306-91 "Nameplate"
| Model | Port Dia. (mm) | Speed | Inlet capacity (m3/min)and shaft power (KW) | |||||||||||||||
| 0.1kgf/cm2 | 0.2kgf/cm2 | 0.3kgf/cm2 | 0.4kgf/cm2 | 0.5kgf/cm2 | 0.6kgf/cm2 | 0.7kgf/cm2 | 0.8kgf/cm2 | |||||||||||
| 1000mmH2O | 2000mmH2O | 3000mmH2O | 4000mmH2O | 5000mmH2O | 6000mmH2O | 7000mmH2O | 8000mmH2O | |||||||||||
| 0.01Mpa | 0.02Mpa | 0.03Mpa | 0.04Mpa | 0.05Mpa | 0.06Mpa | 0.07Mpa | 0.08Mpa | |||||||||||
| rpm | m3/min | KW | m3/min | KW | m3/min | KW | m3/min | KW | m3/min | KW | m3/min | KW | m3/min | KW | m3/min | KW | ||
| BK6008 | 125(5") | 850 | 8.66 | 2.54 | 8.04 | 4.49 | 7.56 | 6.03 | 7.16 | 7.59 | 6.81 | 9.40 | 6.49 | 11.21 | ||||
| 1000 | 10.45 | 2.99 | 9.83 | 5.28 | 9.35 | 7.10 | 8.95 | 8.93 | 8.6 | 11.06 | 8.28 | 13.19 | 7.98 | 14.81 | 7.72 | 16.85 | ||
| 1150 | 12.24 | 3.44 | 11.62 | 6.07 | 11.14 | 8.16 | 10.74 | 10.27 | 10.39 | 12.72 | 10.07 | 15.17 | 9.77 | 17.03 | 9.51 | 19.37 | ||
| 1250 | 13.44 | 3.74 | 12.82 | 6.60 | 12.34 | 8.87 | 11.93 | 11.16 | 11.59 | 13.82 | 11.26 | 16.49 | 10.97 | 18.51 | 10.70 | 21.06 | ||
| 1400 | 15.23 | 4.19 | 14.61 | 7.39 | 14.13 | 9.94 | 13.72 | 12.50 | 13.38 | 15.48 | 13.06 | 18.46 | 12.76 | 20.73 | 12.49 | 23.59 | ||
| 1500 | 16.42 | 4.49 | 15.80 | 7.92 | 15.33 | 10.65 | 14.92 | 13.40 | 14.57 | 16.59 | 14.25 | 19.78 | 13.95 | 22.22 | 13.69 | 25.27 | ||
| 1650 | 18.22 | 4.94 | 17.59 | 8.72 | 17.12 | 11.71 | 16.71 | 14.74 | 16.36 | 18.25 | 16.04 | 21.76 | 15.74 | 24.44 | 15.48 | 27.80 | ||
| 1800 | 20.01 | 5.39 | 19.39 | 9.51 | 18.91 | 12.78 | 18.50 | 16.08 | 18.16 | 19.91 | 17.83 | 23.74 | 17.54 | 26.66 | 17.27 | 30.32 | ||

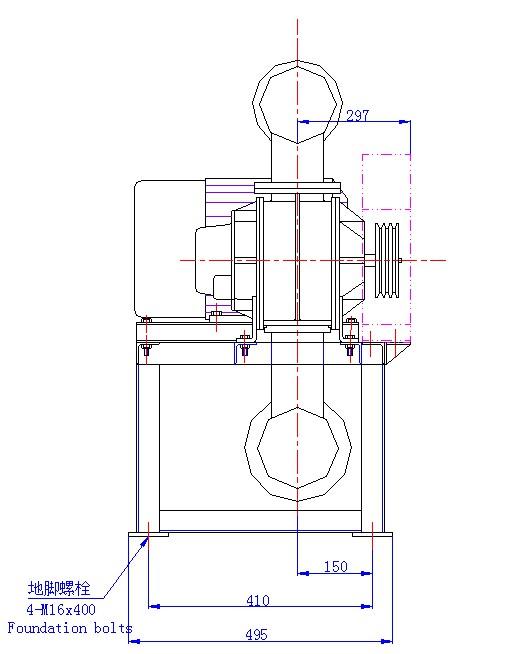

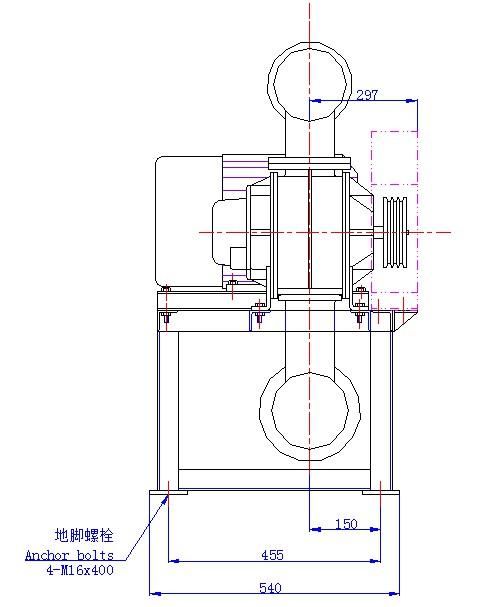

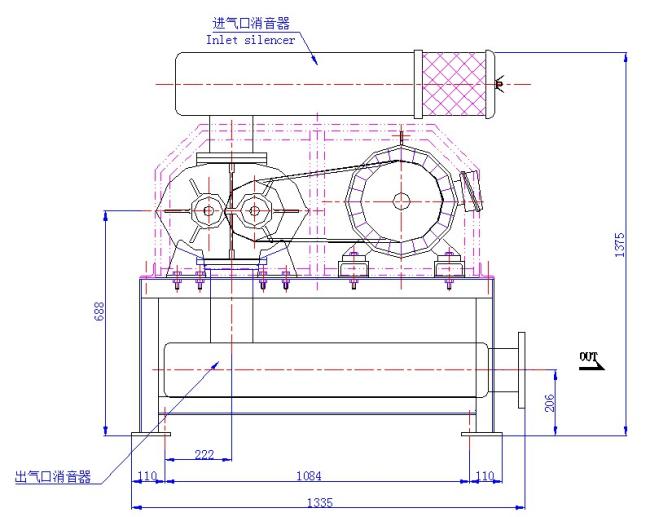

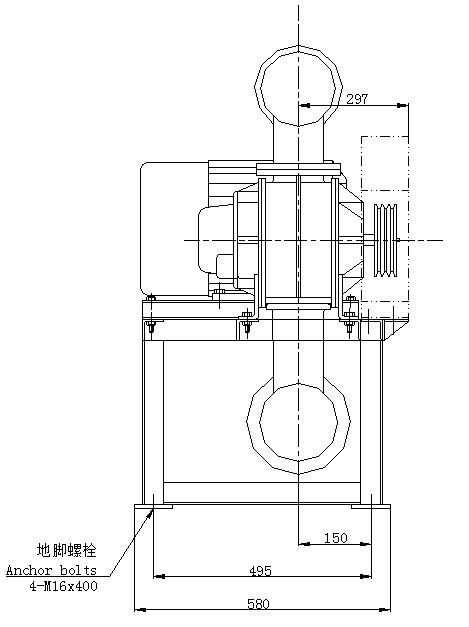

3. Dimension drawing
11-15KW
18.5-22KW
30KW

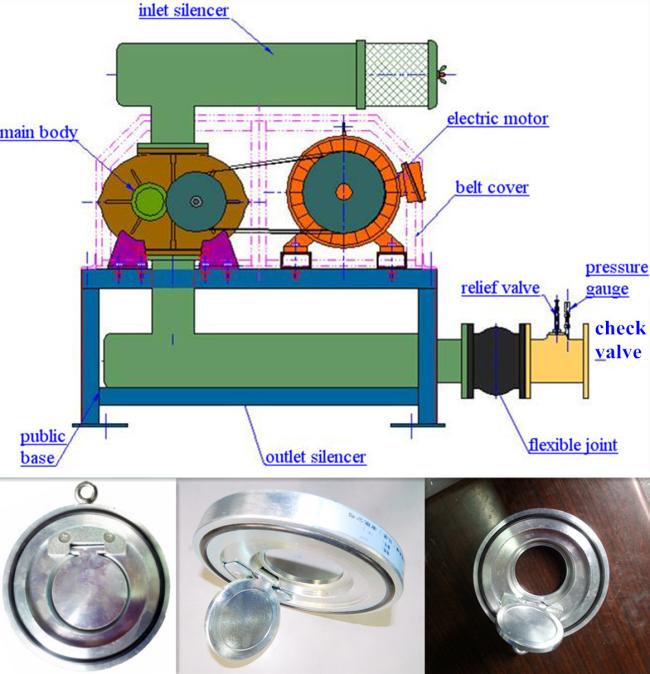

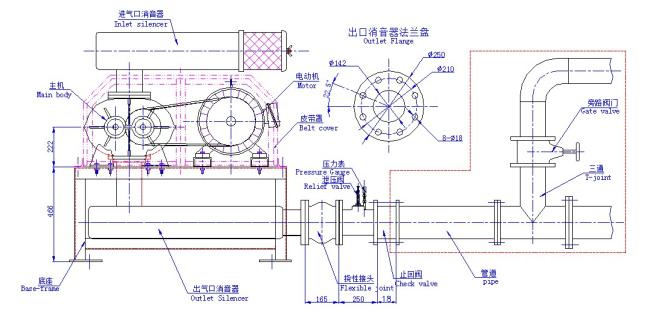

4. Pipeline drawing
5. Advantages
1) The material of transmission gear is 40Cr, which is processed by high-frequency quenching, manufactured by grinding gears, with 5 grade accuracy, and its service life reaches 50,000 hours. The gear transmission part and outer cover are made of cast iron and have sufficient rigidity to maintain the position of the shaft under maximum load. The parts of the gear cover are precisely processed for installation with the bearings.
2) It is flexible mounting ways because of the same structure in inlet and outlet.
3) It adopts more reasonable bearing structure, which can increase the bearing operation life.
4) It is low noise, vibration and energy consumption.
6. Accessories

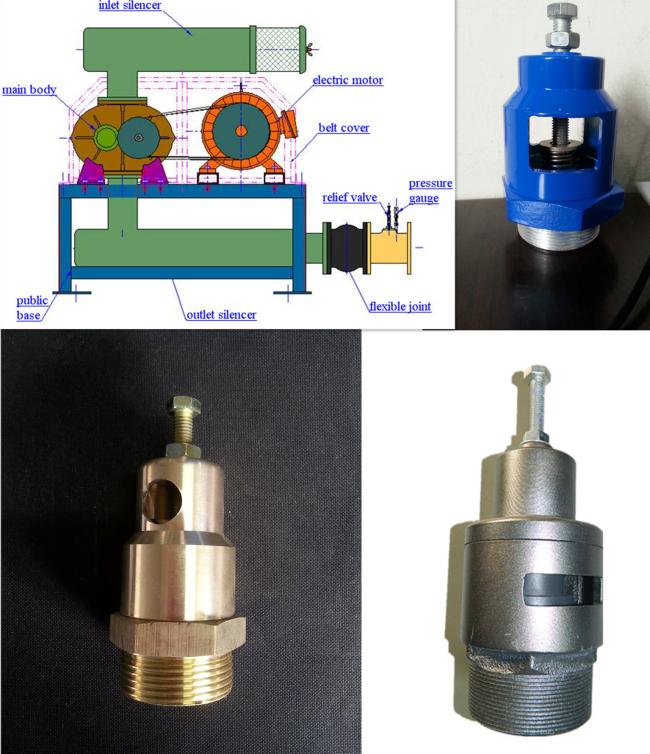

Relieve valve
It is a safety device on the system. When the system works abnormally and the resistance is higher than the rated value, the pressure relief valve opens to discharge the air from the pressure relief valve to prevent the blower and motor from being overload.
Check valve
It is used to prevent back-flow of high-pressure air in the system during shutdown. The back-flow can cause blower reversion and then cause blower malfunctions. The valve body is made of cast iron.
