DN150 (6“ ) 27.19m3/min 45kw -70KPA Roots Blower Vacuum Pump
DN150 Roots type vacuum pump negative pressure blower,18.25-32.25m3/min,-50KPA to -70KPA, 30-55KW
About BV150H Vacuum Blower
BV150H vacuum blower is a kind of displacement Roots type air pump. It can reach -70KPA vacuum pump. It is widely used for vacuum air conveying and if featured of stable performance and excellent volumetric efficiency.
Specifications
|
Model |
BV150H |
|
Air capacity |
18.25-32.25m3/min |
|
Discharge differential pressure |
-50~ -70KPA |
|
Rotary speed |
1330-2080rpm |
|
Motor type |
18.5-22/30/37-45/55KW 380/400/415/440V, 3PHASES, 50/60HZ |
|
Installation type |
Standard: vertical type |
|
N.W. of blower without motor |
545kg |
Parameter sheet
| Model | Speed | Inlet capacity (m3/min)and shaft power (KW) | |||||||||
| -0.5kgf/cm² | -0.55kgf/cm² | -0.6kgf/cm² | -0.65kgf/cm² | -0.7kgf/cm² | |||||||
| -5000mmH2O | -5500mmH2O | -6000mmH2O | -6500mmH2O | -7000mmH2O | |||||||
| -0.05Mpa | -0.055Mpa | -0.06Mpa | -0.065Mpa | -0.07Mpa | |||||||
| rpm | m3/min | KW | m3/min | KW | m3/min | KW | m3/min | KW | m3/min | KW | |
| BV150H | 1330 | 19.06 | 23.02 | 18.83 | 24.46 | 18.6 | 25.9 | 18.25 | 27.34 | ||
| Port Dia: DN150(6") | 1420 | 20.64 | 24.58 | 20.41 | 26.11 | 20.18 | 27.65 | 19.81 | 29.18 | ||
| 1580 | 23.46 | 27.35 | 23.22 | 29.06 | 22.99 | 30.76 | 22.59 | 32.47 | |||
| 1670 | 25.04 | 28.9 | 24.8 | 30.71 | 24.57 | 32.52 | 24.16 | 34.32 | 23.75 | 36.13 | |
| 1870 | 28.55 | 32.37 | 28.31 | 34.39 | 28.07 | 36.41 | 27.63 | 38.43 | 27.19 | 40.46 | |
| 1980 | 30.49 | 34.27 | 30.25 | 36.41 | 30.00 | 38.55 | 29.54 | 40.69 | 29.08 | 42.84 | |
| 2080 | 32.25 | 36 | 32.00 | 38.25 | 31.76 | 40.50 | 31.28 | 42.75 | 30.81 | 45 | |

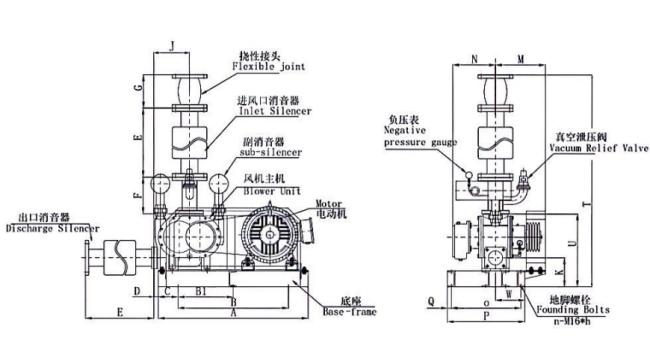

Assembling drawing of blower package
Dimension size
| BV-H Outline Dimension Sheet | Unit:mm | |||||||||||||||||||||
Type |
Port Dia |
Motor power(kw) |
A | B | B1 | C | D | E | F | G | J | K | M | N | 0 | P | W | Q | T | U | n-M16×h | Weight (kg) |
| BV150H | (6") | 18.5～22 | 1040 | 800 | 400 | 120 | 117 | 1000 | 280 | 180 | 163 | 232 | 430.5 | 254.5 | 505 | 555 | 301 | 25 | 2007 | 547 | 6-M16×400 | 545 |
| 30 | 1070 | 135 | ||||||||||||||||||||
| 37～45 | 1130 | 900 | 450 | 115 | 258 | 370.5 | 620 | 676 | 305 | 28 | 573 | 573 | ||||||||||
| 55 | 1180 | 140 | ||||||||||||||||||||
| Standard accessories include:intake, outlet muffler, negative pressure gauge,base,belt cover,vacuum relief valve,triangular belt. | ||||||||||||||||||||||
| The weight above are for standard accessories only,motor excluded. | ||||||||||||||||||||||
Standard supply of scope
1. blower main body
2. vacuum safety valve
3. inlet silencer
4. outlet silencer
5. public base (with belt cover)
6. rubber flexible joint and shock pad
7. blower pulley
8. pressure gauge
9. belt
10. bolts and nuts and other connection parts
11. motor
