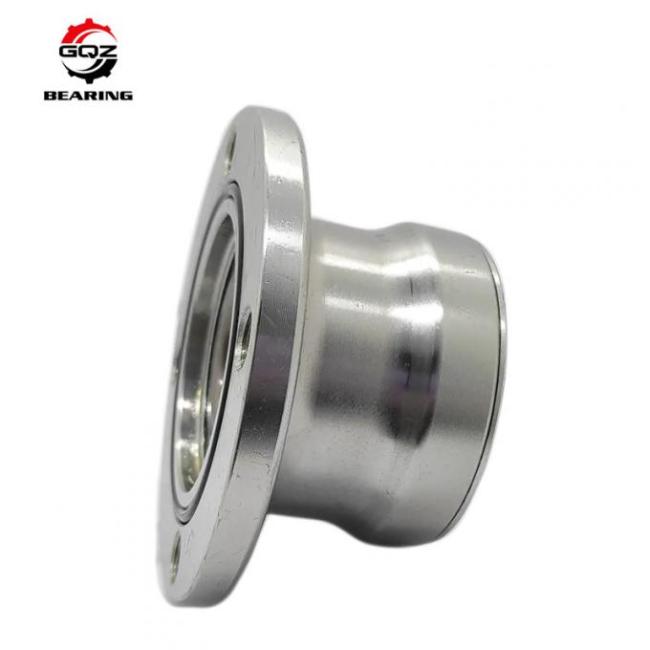

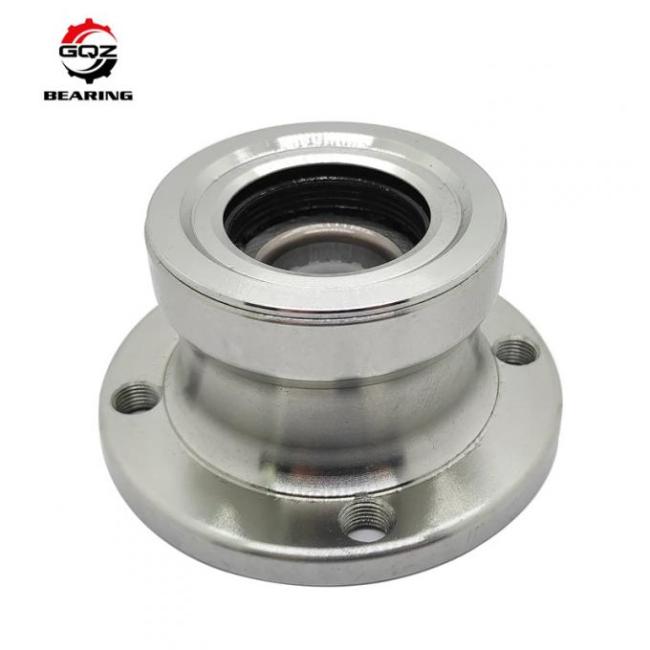

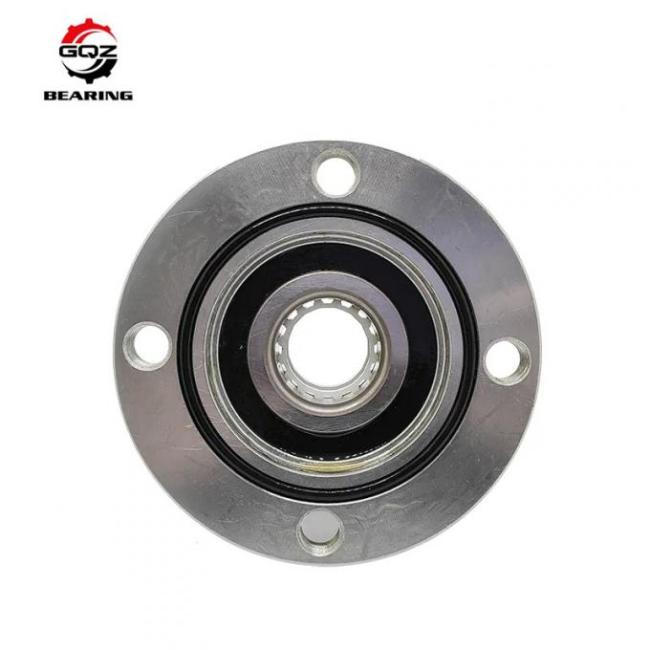

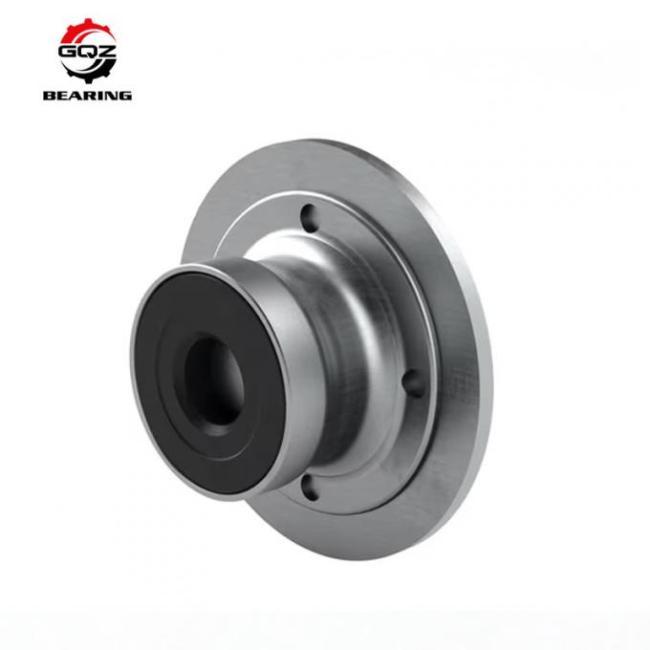

BAA0003A Agricultural Wheel Hub Bearing For Harrow Disc 1.181 In Shaft Diameter 8 430 Lbf Static Load Rating
Agricultural Bearing BAA-0003 Wheel Hub Bearing BAA0003A For Harrow Disc China Quality
Agri Hubs are maintenance-free, sealed bearing units, providing major advantages for both original equipment manufacturers and final customers. Prepared with grease and sealed, Agri Hubs do not need grease refill and reduce the risk for grease spillage. Thanks to their high stiffness, the risk for disc tilt is minimized and machine reliability is further improved.
- Easy and quick to mount and remove
- Maintenance-free
- Greased for life
- Improved machine reliability
| Applicable Industries | For individual tillage disc application |
|---|---|
| Place of Origin | China |
| Type | BALL |
| Model Number | BAA-003A |
| Brand Name | GQZ or OEM |
| Weight | 3.77 lb |
| Material | Chrome Steel |
| Outside diameter | 117mm |
| Bore size | 28mm |
| Feature | Long Life |
| Certificate | ISO9001:2008 |
| Vibration | Z1V1 Z2V2 Z3V3 |
| Precision | P0,P4,P6 |
| Service | OEM Service |
| Stock | Rich |
| Package | Original Packing |
| Cross reference | No.Holes | Dimension(mm) | Basic load rating | Type | Disc diameter | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| D | d | J | L1 | L | Gf | Gs | Cr(KN) | Cor(KN) | ||||
| BAA-0003A | 4 | 117 | 28 | 98 | 60 | M12*1.25 | 47.5 | 37.5 | Type C | From 500 to 610mm | ||
| BAA-0004 | 4 | 117 | 28 | 98 | 60 | 105 | M12*1.25 | M24*2.0 | 47.5 | 37.5 | Type C | From 500 to 610mm |
| BAA-0005 | 4 | 117 | 28 | 98 | 60 | 102 | M12*1.25 | M22*1.5 | 47.5 | 37.5 | Type C | From 500 to 610mm |
| BAA-0006 | 6 | 117 | 28 | 98 | 60 | 102 | M12*1.25 | M22*1.5 | 47.5 | 37.5 | Type C | From 500 to 610mm |
| AHU34120B-01 | 6 | 120 | 34 | 100 | 52 | 71.45 | M10*1.5 | M20*2.5 | 46.1 | 50.9 | Type C | From 500 to 610mm |
| AHU28140A-01 | 5 | 140 | 28 | 108 | 89 | 95 | M12*1.25 | M22*1.5 | 46.1 | 50.9 | Type A | From 500 to 700mm |
| BAA-0012 | 5 | 117 | 28 | 98 | 60 | 102 | M12*1.25 | M22*1.5 | 47.5 | 37.5 | Type C | From 500 to 610mm |
| BAA-0013 | 6 | 117 | 30 | 98 | 60 | 105 | M12*1.25 | M24*2.0 | 47.5 | 37.5 | Type C | From 500 to 610mm |
| BAA-0020 | 4 | 117 | 28 | 98 | 60 | 102 | M12*1.25 | 7/8-14UNF | 47.5 | 37.5 | Type C | From 500 to 610mm |
| AHU30140A-01 | 5 | 140 | 35 | 112 | 89 | 98.45 | M12*1.5 | M24*2.0 | 46.1 | 50.9 | Type A | From 500 to 700mm |
How should maintenance routines be structured for agricultural wheel hub bearings?
Effective maintenance is key to maximizing lifespan and performance.
Inspection Schedules: Establish routine inspection schedules to detect potential issues early.
Re-lubrication Intervals: Determine appropriate intervals for re-lubrication based on usage and operating conditions.
Solution: To maintain agricultural wheel hub bearings effectively:
Develop a comprehensive maintenance schedule including cleaning, inspection, and re-lubrication of agricultural wheel hub bearings.
Maintain detailed records of maintenance activities to track condition and performance over time.
Are there specific considerations for selecting agricultural wheel hub bearings for heavy-duty applications?
Heavy-duty applications require robust solutions for substantial loads and stresses.
Load Capacity: Ensuring selected bearings have adequate load capacity is critical.
Durability: Materials and design features that enhance durability under heavy use are necessary.
Solution: When choosing agricultural wheel hub bearings for heavy-duty applications:
Opt for agricultural wheel hub bearings designed with higher load capacities and made from durable materials.
Consult manufacturers for products tailored to meet specific demands of your application.
