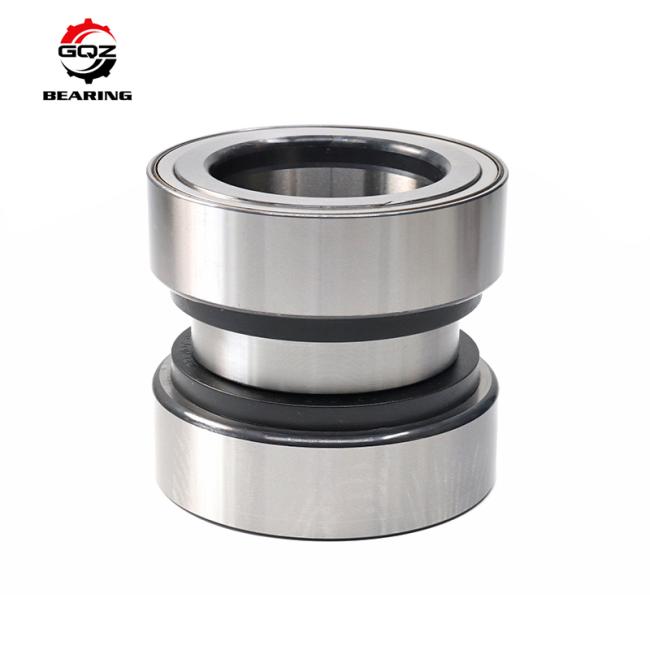

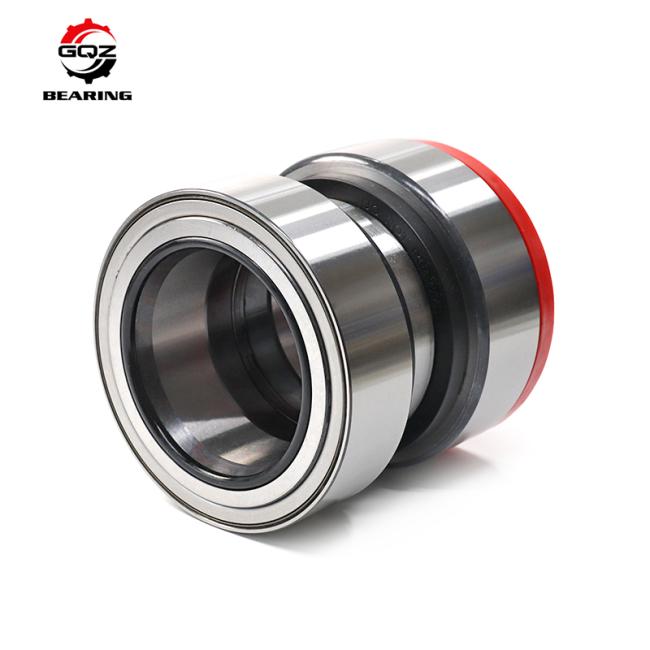

Auto Parts 566425 H195 Rear Heavy Truck Wheel Hub Bearing 566425H195 93.8*148*135mm
Auto Parts 566425.H195 Rear Heavy Truck Wheel Hub Bearing 566425H195 Bearing
566425.H195 is a high-strength wheel hub bearing engineered for heavy-load and harsh operating conditions, specialized in supporting vehicle wheels and transmitting torque. Its robust integrated structure combines high rigidity with excellent impact resistance, capable of withstanding complex loads including radial loads, axial loads, and dynamic shock loads during vehicle operation. Crafted from high-quality bearing steel with precision heat treatment, the bearing features wear-resistant raceways and rolling elements, ensuring long service life even under continuous high-load operation. The optimized internal design enhances lubrication retention and contaminant resistance, adapting to dusty, humid, or bumpy working environments common in commercial transportation and industrial scenarios.
93.8mm ID × 148mm OD × 135mm Width
566425.H195 (cross-brand equivalents such as SKF 566425.H195, NSK 566425.H195, Timken 566425.H195), and wheel hub bearings with identical "93.8mm ID + 148mm OD + 135mm width" specifications
Commercial Vehicles (Trucks, Buses), Construction Machinery (Excavators, Loaders), Agricultural Equipment, Industrial Transport Vehicles, and other scenarios requiring heavy-load bearing capacity, high reliability, and resistance to harsh operating conditions.
| Parameter Item | Details |
|---|---|
| Product Model | 566425.H195 Wheel Hub Bearing |
| Inner Diameter (ID) | 93.8mm |
| Outer Diameter (OD) | 148mm |
| Width | 135mm |
| Type | Heavy-Duty Wheel Hub Bearing |
| Material | High-Quality Bearing Steel |
| Load Capacity | Radial Load + Axial Load + Shock Load |
| Design Feature | Robust Integrated Structure, Contaminant Resistance |
| Cross reference | No.Holes | Dimension(mm) | Basic load rating | Type | Disc diameter | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| D | d | J | L1 | L | Gf | Gs | Cr(KN) | Cor(KN) | ||||
| BAA-0003A | 4 | 117 | 28 | 98 | 60 | M12*1.25 | 47.5 | 37.5 | Type C | From 500 to 610mm | ||
| BAA-0004 | 4 | 117 | 28 | 98 | 60 | 105 | M12*1.25 | M24*2.0 | 47.5 | 37.5 | Type C | From 500 to 610mm |
| BAA-0005 | 4 | 117 | 28 | 98 | 60 | 102 | M12*1.25 | M22*1.5 | 47.5 | 37.5 | Type C | From 500 to 610mm |
| BAA-0006 | 6 | 117 | 28 | 98 | 60 | 102 | M12*1.25 | M22*1.5 | 47.5 | 37.5 | Type C | From 500 to 610mm |
| AHU34120B-01 | 6 | 120 | 34 | 100 | 52 | 71.45 | M10*1.5 | M20*2.5 | 46.1 | 50.9 | Type C | From 500 to 610mm |
| AHU28140A-01 | 5 | 140 | 28 | 108 | 89 | 95 | M12*1.25 | M22*1.5 | 46.1 | 50.9 | Type A | From 500 to 700mm |
| BAA-0012 | 5 | 117 | 28 | 98 | 60 | 102 | M12*1.25 | M22*1.5 | 47.5 | 37.5 | Type C | From 500 to 610mm |
| BAA-0013 | 6 | 117 | 30 | 98 | 60 | 105 | M12*1.25 | M24*2.0 | 47.5 | 37.5 | Type C | From 500 to 610mm |
| BAA-0020 | 4 | 117 | 28 | 98 | 60 | 102 | M12*1.25 | 7/8-14UNF | 47.5 | 37.5 | Type C | From 500 to 610mm |
| AHU30140A-01 | 5 | 140 | 35 | 112 | 89 | 98.45 | M12*1.5 | M24*2.0 | 46.1 | 50.9 | Type A | From 500 to 700mm |
