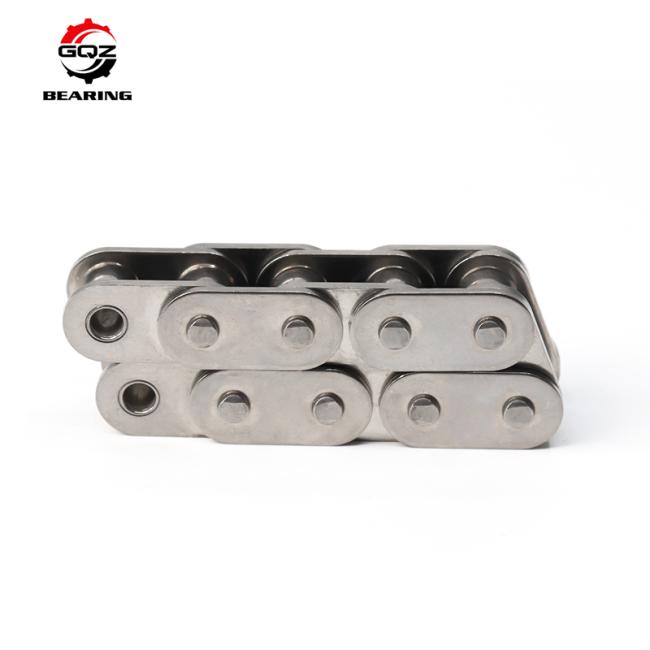

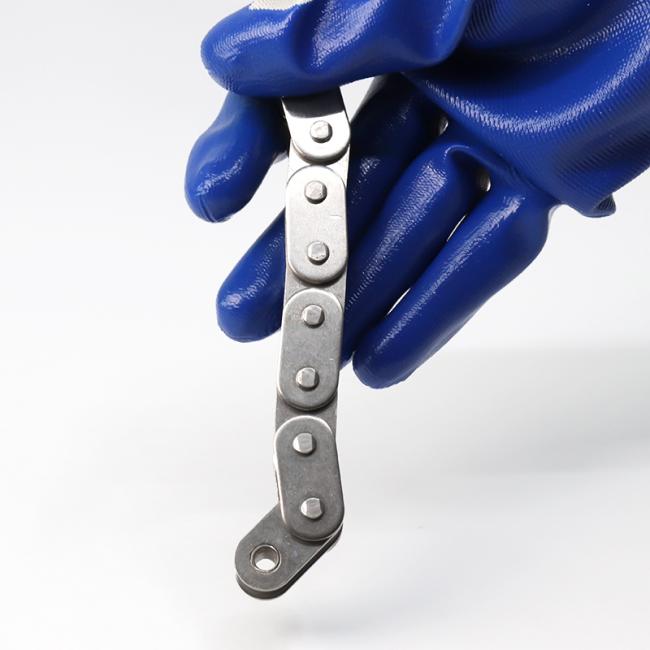

Standard Precision C2040 25.4mm Stainless Steel Anti Corrosion Pitch Roller Chain For Conveyor Industrial Use
This roller chain adopting a classic sleeve-roller structure. It’s crafted from high-quality alloy steel via precision stamping and heat treatment, delivering excellent tensile strength and wear resistance. The optimized roller design reduces friction between the chain and sprockets, ensuring stable operation in medium-to-heavy load power transmission scenarios. Its modular structure enables easy installation, connection, and maintenance, making it a reliable choice for general industrial drive systems.
- Pitch (P): 25.4 mm
- Roller Width (W): 7.92 mm
- Roller Diameter (R): 7.92 mm
- Plate Height (H): 11.76 mm
40 Roller Chain (cross-brand equivalents such as Tsubaki ANSI 40, Renold ANSI 40, SKF ANSI 40), and roller chains matching "25.4mm pitch + ANSI standard + general industrial grade" specifications
General Industrial Equipment, Conveyor Systems, Agricultural Machinery, Small-Scale Construction Tools, Ventilation Fans, and other scenarios requiring stable medium-load power transmission.
| Parameter Item | Details |
|---|---|
| Product Model | ANSI 40 Roller Chain |
| Standard | ANSI |
| Pitch (P) | 25.4 mm |
| Roller Width (W) | 7.92 mm |
| Roller Diameter (R) | 7.92 mm |
| Plate Height (H) | 11.76 mm |
| Plate Thickness (T) | 1.52 mm |
| Pin Diameter (D) | 3.96 mm |
| Overall Width (F) | 16.26 mm |
- Seamless stainless steel tube,make the chains much durable than non-seamless chain.
- Anti corrosion, can be used in bad working enviroment such as Chemicial industry and so on.
- Precision rollers, the roller chain be converyed much smoothly.
- Long-term quality guarantee,we provide 1 years quality guarantee for the chain we sells.
C2040SS,C2050SS,C2060SS,C2080SS,C2042SS,C2052SS,C2062SS,C2082SS
08BHPSS,10BHPSS,12BHPSS,40HPSS,50HPSS,60HPSS,80HPSS,C2040HPSS,C2050HPSS,C2060HPSS,C2080HPSS
