Super Precision Bearing , 25TAB06U/GM P4 Ball Screw Support Bearing
Super Precision Bearing , 25TAB06U/GM P4 Ball Screw Support Bearing
1. Specification:
|
Specification of Bearing |
|
|
Bearing type |
Angular contact ball bearing |
|
Brand type |
NACHI |
|
Precision Rating |
Japan |
|
Vibration |
Z1V1,Z2V2,Z3V3 |
|
Durability |
Long |
|
Material |
Bearing steel |
|
Certificate |
ISO9001:2008 |
|
Main market abroad |
South America,USA,European,Southeast Asia,Middle East |
|
Packaging Details |
1. inner:polyester bag outer:paper carton 2. industrial standard packing 3. Poly bag+box+packing 4. 4. as your order |
|
Delivery Time |
Within 3-5 days after receiving your subscription |
|
Payment Terms |
T/T,Western Union,Paypal |
2. Feature:
(1) Singe row
(2) P4 precision
(3) chrome steel rings and ceramic balls
(4) brass,steel or nylon cage
3. Anguar contact contact angle:
AC: 25 degree
B: 40 degree
C: 15 degree
A: 30 degress
4. Matching type:
DB: back to back
DF: face to face
DT: Series connect
5. Application:High precision equipment and so on

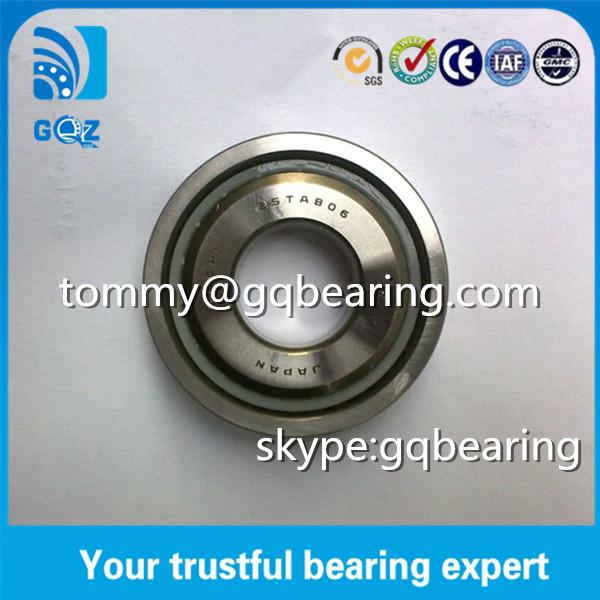

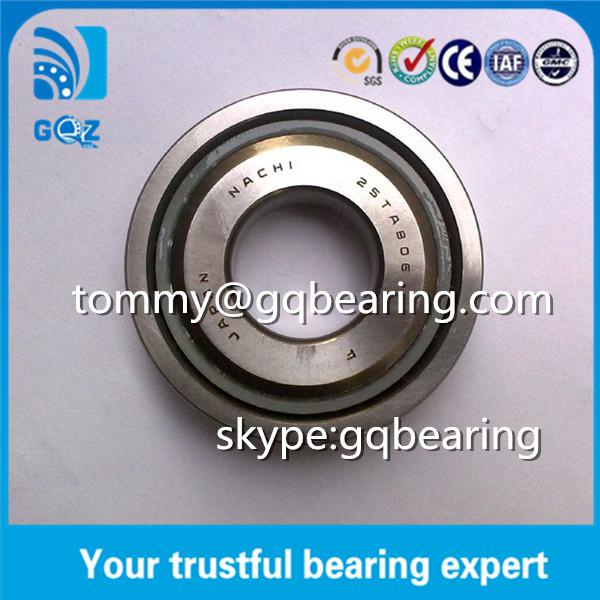

6. Bearing Picture:
7. We also supply following bearings:
|
Bearing No. |
d(mm) |
D(mm) |
B(mm) |
|
H708C-2RZ P4 HQ1 |
8 |
22 |
7 |
|
H709C-2RZ P4 HQ1 |
9 |
24 |
7 |
|
H7000C-2RZ P4 HQ1 |
10 |
26 |
8 |
|
H7001C-2RZ P4 HQ1 |
12 |
28 |
8 |
|
H7002C-2RZ P4 HQ1 |
15 |
32 |
9 |
|
H7003C-2RZ P4 HQ1 |
17 |
35 |
10 |
|
H7004C-2RZ P4 HQ1 |
20 |
42 |
12 |
|
H7005C-2RZ P4 HQ1 |
25 |
47 |
12 |
|
H7006C-2RZ P4 HQ1 |
30 |
55 |
13 |
|
H7007C-2RZ P4 HQ1 |
35 |
62 |
14 |
|
H7008C-2RZ P4 HQ1 |
40 |
68 |
15 |
|
H7009C-2RZ P4 HQ1 |
45 |
75 |
16 |
|
H7010C-2RZ P4 HQ1 |
50 |
80 |
16 |
|
H7011C-2RZ P4 HQ1 |
55 |
90 |
18 |
|
H7012C-2RZ P4 HQ1 |
60 |
95 |
18 |
|
H7013C-2RZ P4 HQ1 |
65 |
100 |
18 |
|
H7014C-2RZ P4 HQ1 |
70 |
110 |
20 |
|
H7015C-2RZ P4 HQ1 |
75 |
115 |
20 |
|
H7016C-2RZ P4 HQ1 |
80 |
125 |
22 |
|
H7017C-2RZ P4 HQ1 |
85 |
130 |
22 |
|
H7018C-2RZ P4 HQ1 |
90 |
140 |
24 |
|
H7019C-2RZ P4 HQ1 |
95 |
145 |
24 |
|
H7020C-2RZ P4 HQ1 |
100 |
150 |
24 |
