Specialize GCR15 Big Cylindrical Roller Bearing NNU4148 Wear Resistant

1. Specification:

 Cylindrical Roller Bearings main models include: NU10**, NU2**, NU22**,

NU3**, NU23**, NU4**, N, NJ ,NUP series as well as NB, NN,NNU

series of big bearings, and we also have Split Bearings 412740, 422740

used in cement industry.And FC, FCD series used in Steel Industry.

We have most of Cylindrical Roller Bearings in stock and in big quantity

2.Specifiction Of Cylindrical Roller Bearing

2. Feature:

(1) Doule row

(2) High precision

(3) chrome steel material(Gcr15)
(4) Steel cage

(5) Application: rolling machine and so on.

3. Type of  cylindrical roller bearing

a. single row cylindrical roller bearings, cage, mainly of the NU,NJ,NUP, and N designs.

b. double row cylindrical roller bearings, caged, mainly of the NNU and NN designs.

c. multi-row cylindrical roller bearings, caged.

d. single row full complement cylindrical roller bearings, mainly of the NCF and NJG designs.

e. double row full complement cylindrical roller bearings, mainly of the NNF design.

f.  multi-row full complement cylindrical roller bearings, with four rollers.

4.  Series of  cylindrical roller bearing

a. Types NU, N, NNU, and NN are suitable as free-end bearings.

b. Types NJ and NF can sustain limited axial loads in one direction.

c. Types NH and NUP can be used as fixed-end bearings.

d. NH-type cylindrical roller bearings consist of the NJ-type cylindrical roller bearings and HJ-type L-               shaped thrust collars.

e. The inner ring loose rib of an NUPtype cylindrical roller bearing should be mounted so that the marked       side is on the outside.

f. The RNU cylindrical roller bearing has an outer ring with double capped edges but does not come with       inner ring. Such bearing is the NU cylindrical roller bearings without the inner ring

g. The RN cylindrical roller bearing has an inner ring with double capped edge but does not come with           outer ring.

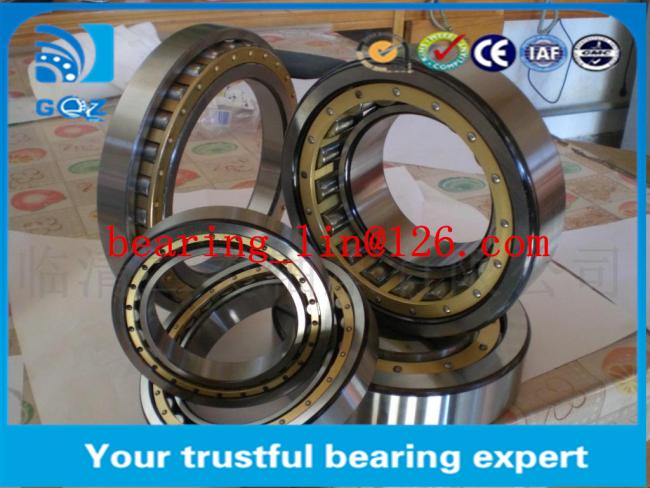

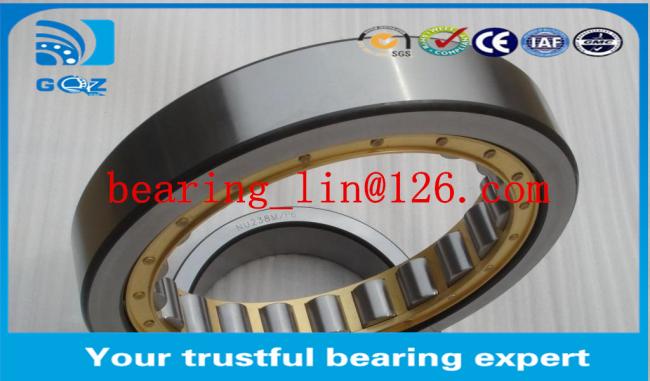

5. Bearing Picture:
