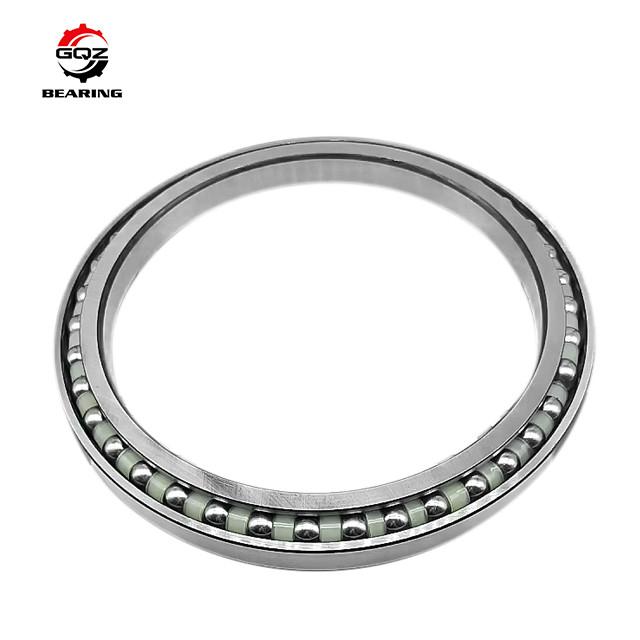

KA020CP0 Reail-silm Thin-section bearings (2x2.5x 0.25 inch ) High precision ball bearings manufacturers
A . Reail-silm Thin-section bearings Parameters
Brand- BYC
Structure- Radial Contact Ball
Model number- KA020CP0 Thin section ball bearing
Inner ring(in)- 2
Outer ring(in)- 2.5
Width(in)- 0.25
Weight(lb)- 0.1
Materials- Chrome steel/GCR15/Stainless steel
Precision grade- P5/P4/P2
Lubrication type- Oil
Material(Ball)- Steel ball/Ceramic ball
Number of Row- Single rows
Section Type- Thin section
Quality- High speed, Low noise and Long life
B . KA020CP0 Reail-silm Thin-section bearings Specification Sheet
| Model Number |
Size(in) | Land Diameters (in) | Capacities in Pounds1 | Weight in Pounds |
||||||||
| Bore | Outside Diameter |
Land Dia. L1 |
Land Dia. L2 |
C'bore Dia. L3 |
Radial | Thrust | Moment | |||||
| Static | Dyn. | Static | Dyn. | Static | Dyn. | |||||||
| KA020CP0 | 2 | 2.5 | 2.186 | 2.314 | - | 680 | 393 | - | - | - | - | 0.1 |
C . Type C-KA series Reail-silm Thin-section bearings Details
Product Features
To support various load scenarios,Reail-SlIM Thin section ball bearings are available in three basic types: radial contact (type C), angular contact (type A), and fourpoint contact (type X) and in a variety of sizes ,or series (e.g., KA, KB, KC, etc.). Reail-SlIM Thin section ball bearings are available with various separator options to space the rolling elements uniformly and prevent contact between them.
Series Introduction
"A Conrad assembled bearing designed primarily for application of radial load—deep ball grooves also permit application of thrust load in
either direction – often used in conjunction with another bearing."
Series Model No. KA020CP0.KA025CP0.KA030CP0.KA035CP0.KA040CP0.KA042CP0.KA045CP0.KA047CP0.KA050CP0.KA055CP0.KA060CP0.KA065CP0.KA070CP0.KA075CP0.KA080CP0.KA090CP0 .KA100CP0.KA110CP0.KA120CP0
Applications
Applications in Robotics, inspection equipment, satellites, cameras… anywhere precise positioning and lightweight designs are critical.
