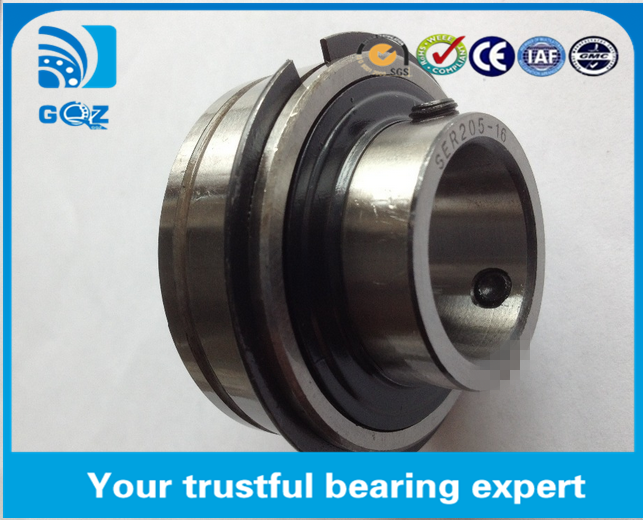

SER 204 204-12 Spherical Radial Ball Super Precision Bearings 12 - 150 Mm

Price Negotiable

Price: Negotiable

MOQ: 10 PIECES

Delivery Time: Negotiable

Brand: OEM

Product Description

Item:	SER 204 204-12 spherical radial ball bearing
Size:	12-200mm
Material	chrome steel,bearing steel
Series:	SER etc.
Hardness	HRC58-62
Precision	P2 P4 P5 P6 P0
Clearance	C2 C3 C4 C5
Certificate	ISO9001:2008
Production capacity	200000 pieces/Week
Quality	We have complete process for the production and quality assurance to make sure our products can meet your requirement. 1.Assembly 2.Windage test 3.Cleaning 4.Rotary test 5.Greasing and gland 6.Noise inspection 7.Appearance inspection 8.Rust prevention 9.Product packaging
Brand:	MBY or OEM
Material:	chrome steel/stainless steel/bearing steel/carbon steel/plastic/ceramic
Application:	oil industry, Mine, Paper-making, reduction gear, railway, vehicle, rolling mill
Packing	A:Polybag+single box+Carton B:Polybag+Box+wooden case C.As your requiremnt
Delivery time	usually within 3-15 working days after payment
Payment Term	L/C,T/T, paypal, western union

Specification of SER 204 204-12 spherical radial ball bearing

Bearing No.	Bore Dia		Diamension(mm)/(in.)										Basic Load Rating (N)		Weight(kg)
	d		D	B	C	S	a	b	p	G	h	ds	Dynamic Cr	Static Cor
	(in.)	(mm)	D	B	C	S	a	b	p	G	h	ds	Dynamic Cr	Static Cor
SER202		15	47	31	15.9	10.3	2.38	1.07	52.7	4.7	4.4	M6X1	12800	6650	0.24
SER202-10	5/8	15.876	47	31	15.9	10.3	2.38	1.07	52.7	4.7	4.4	1/4-28UNF	12800	6650	0.24
SER203		17	47	31	15.9	10.3	2.38	1.07	52.7	4.7	4.4	M6X1	12800	6650	0.24
SER203-11	11/16	17.4625	47	31	15.9	10.3	2.38	1.07	52.7	4.7	4.4	1/4-28UNF	12800	6650	0.24
SER204-12	3/4	19.05	47	31	15.9	10.3	2.38	1.07	52.7	4.7	4.4	1/4-28UNF	12800	6650	0.24
SER204		20	47	31	15.9	10.3	2.38	1.07	52.7	4.7	4.4	M6X1	12800	6650	0.24
SER205-14	7/8	22.225	52	34.9	19	13.1	2.38	1.07	57.9	5.5	4.5	1/4-28UNF	14000	7880	0.27
SER205-15	15/16	23.8125	52	34.9	19	13.1	2.38	1.07	57.9	5.5	4.5	1/4-28UNF	14000	7880	0.27
SER205		25	52	34.9	19	13.1	2.38	1.07	57.9	5.5	4.5	M6X1	14000	7880	0.27
SER205-16	1	25.4	52	34.9	19	13.1	2.38	1.07	57.9	5.5	4.5	1/4-28UNF	14000	7880	0.27
SER206-18	1-1/8	28.575	62	38.1	22.2	15.9	3.18	1.65	67.7	5.5	5.3	1/4-28UNF	19500	11200	0.39
SER206		30	62	38.1	22.2	15.9	3.18	1.65	67.7	5.5	5.3	M6X1	19500	11200	0.39
SER206-19	1-3/16	30.1625	62	38.1	22.2	15.9	3.18	1.65	67.7	5.5	5.3	1/4-28UNF	19500	11200	0.39
SER206-20	1-1/4	31.75	62	38.1	22.2	15.9	3.18	1.65	67.7	5.5	5.3	1/4-28UNF	19500	11200	0.39
SER207-20	1-1/4	31.75	72	42.9	23.8	17.5	3.18	1.65	78.6	6.5	5.8	5/16-24UNF	25700	15200	0.61
SER207-21	1-5/16	33.3375	72	42.9	23.8	17.5	3.18	1.65	78.6	6.5	5.8	5/16-24UNF	25700	15200	0.61
SER207-22	1-3/8	34.925	72	42.9	23.8	17.5	3.18	1.65	78.6	6.5	5.8	5/16-24UNF	25700	15200	0.61
SER207		35	72	42.9	23.8	17.5	3.18	1.65	78.6	6.5	5.8	M8X1	25700	15200	0.61
SER207-23	1-7/16	36.5125	72	42.9	23.8	17.5	3.18	1.65	78.6	6.5	5.8	5/16-24UNF	25700	15200	0.61
SER208-24	1-1/2	38.1	80	49.2	27.8	19	3.18	1.65	86.6	8	6.3	5/16-24UNF	29600	18200	0.81
SER208-25	1-9/16	39.6875	80	49.2	27.8	19	3.18	1.65	86.6	8	6.3	5/16-24UNF	29600	18200	0.81
SER208		40	80	49.2	27.8	19	3.18	1.65	86.6	8	6.3	M8X1	29600	18200	0.81
SER209-26	1-5/8	41.275	85	49.2	27.8	19	3.18	1.65	91.6	8	7.5	5/16-24UNF	31850	20800	0.9
SER209-27	1-11/16	42.8625	85	49.2	27.8	19	3.18	1.65	91.6	8	7.5	5/16-24UNF	31850	20800	0.9
SER209-28	1-3/4	44.45	85	49.2	27.8	19	3.18	1.65	91.6	8	7.5	5/16-24UNF	31850	20800	0.9
SER209		45	85	49.2	27.8	19	3.18	1.65	91.6	8	7.5	M8X1	31850	20800	0.9
SER210-30	1-7/8	47.625	90	51.6	28.6	19	3.18	2.41	96.5	9	6.8	3/8-24UNF	35100	23200	0.96
SER210-31	1-15/16	49.2125	90	51.6	28.6	19	3.18	2.41	96.5	9	6.8	3/8-24UNF	35100	23200	0.96
SER210		50	90	51.6	28.6	19	3.18	2.41	96.5	9	6.8	M10X1.25	35100	23200	0.96
SER211-32	2	50.8	100	55.6	30.2	22.2	3.18	2.41	106.5	9	7.6	3/8-24UNF	43550	29200	1.41
SER211-34	2-1/8	63.5	100	55.6	30.2	22.2	3.18	2.41	106.5	9	7.6	3/8-24UNF	43550	29200	1.41
SER211		55	100	55.6	30.2	22.2	3.18	2.41	106.5	9	7.6	M10X1.25	43550	29200	1.41
SER211-35	2-3/16	55.5825	100	55.6	30.2	22.2	3.18	2.41	106.5	9	7.6	3/8-24UNF	43550	29200	1.41
SER212-36	2-1/4	57.15	110	65.1	31.8	25.4	3.18	2.41	116.6	10.5	8.4	3/8-24UNF	47800	32800	1.95
SER212		60	110	65.1	31.8	25.4	3.18	2.41	116.6	10.5	8.4	M10X1.25	47800	32800	1.95
SER212-38	2-3/8	60.325	110	65.1	31.8	25.4	3.18	2.41	116.6	10.5	8.4	3/8-24UNF	47800	32800	1.95
SER212-39	2-7/16	61.9125	110	65.1	31.8	25.4	3.18	2.41	116.6	10.5	8.4	3/8-24UNF	47800	32800	1.95
SER214-40	2-1/2	63.3	125	74.6	35	30.2	3.96	2.77	134.7	12	9	7/16-20UNF	60800	45000	2.52
SER214-43	2-11/16	68.2625	125	74.6	35	30.2	3.96	2.77	134.7	12	9	7/16-20UNF	60800	45000	2.52
SER214		70	125	74.6	35	30.2	3.96	2.77	134.7	12	9	M12X1.25	60800	45000	2.52
SER215-46	2-7/8	73.025	130	77.8	38.1	33.3	3.96	2.77	139.7	12	9.5	7/16-20UNF	66000	49500	2.89
SER215-47	2-15/16	74.6125	130	77.8	38.1	33.3	3.96	2.77	139.7	12	9.5	7/16-20UNF	66000	49500	2.89
SER215		75	130	77.8	38.1	33.3	3.96	2.77	139.7	12	9.5	M12X1.25	66000	49500	2.89
SER201		12	47	31	15.9	10.3	2.38	1.07	52.7	4.7	4.4	M6X1	12800	6650	0.24
SER201-8	1/2	12.7	47	31	15.9	10.3	2.38	1.07	52.7	4.7	4.4	1/4-28UNF	12800	6650	0.24
