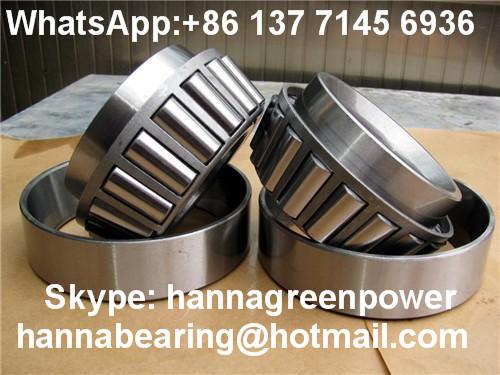

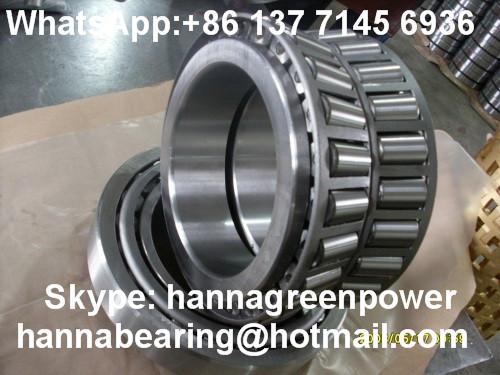

LM241149NW/LM241110D Double Row Tapered Roller Bearing 203.2x276.225x95.25mm Heavy Duty Industrial Bearing
LM241149NW/LM241110D Double Row Tapered Roller Bearing 203.2x276.225x95.25mm Heavy Duty Industrial Bearing
LM241149NW/LM241110D is a double‑row tapered roller bearing with open structure, designed to bear heavy radial and axial combined loads. Made of high‑quality bearing steel, it delivers stable performance and long service life for heavy‑duty industrial equipment under harsh working conditions.
*Send your detailed requirements to get matched bearing solutions promptly.
| Item | Specification |
|---|---|
| Model | LM241149NW/LM241110D |
| Bearing Type | Double‑row Tapered Roller Bearing |
| Inner Cone No. | LM241149NW |
| Outer Cup No. | LM241110D |
| Inner Diameter d(mm) | 203.2 |
| Outer Diameter D(mm) | 276.225 |
| Total Width T(mm) | 95.25 |
| Cone Width B(mm) | 42.862 |
| Cup Width C(mm) | 73.025 |
| Basic Dynamic Load Cr(kN) | 580 |
| Basic Static Load Cor(kN) | 1240 |
| Weight(kg) | 15.02 |
| Material | GCr15 Bearing Steel |
| Precision Grade | P0 |
| Seal Type | Open |
| Lubrication | Oil or Grease |
| Application | Heavy Industry Mining Gearbox Construction Machinery |
- Double‑row TDO structure bears heavy radial and two‑way axial loads
- High shock‑resistance, perfect for harsh heavy‑duty working environments
- Separable cone and cup design for easy mounting and disassembly
- Optimized raceway geometry reduces friction and running wear
- Stamped steel cage provides reliable roller guidance
- High rigidity and long service life under continuous heavy operation
- Mining crushers
- Heavy‑duty conveyors
- Steel mill equipment
- Construction machinery
- Industrial gearboxes
- Large‑size transportation axle assemblies.
*Check matched bearing models to complete your mechanical assembly.
- 30 years professional bearing industry experience
- ISO certified strict quality inspection
- Flexible OEM & private label customization
- 3-5 days fast delivery for stocked bearings
- Full bearing series, universal interchangeable size
- Factory direct price & reliable after-sales service
Q1: What is the structure type of LM241149NW/LM241110D bearing?
A1: It is a double‑row TDO tapered roller bearing, consisting of cone LM241149NW and cup LM241110D.
Q2: What loads can this bearing support?
A2: It can withstand heavy combined radial and axial loads in two directions.
Q3: Which lubrication method is recommended?
A3: Both grease lubrication and oil lubrication are available.
Q4: Can this bearing work for high‑speed conditions?
A4: It is more suitable for low‑to‑medium speed heavy‑load working scenarios.
*Contact us anytime for technical parameter consultation & selection guidance.
