500752307 Nylon Cage Double Row Eccentric Roller Bearing 35x86.5x50mm
500752307 Nylon Cage Double Row Eccentric Roller Bearing 35x86.5x50mm

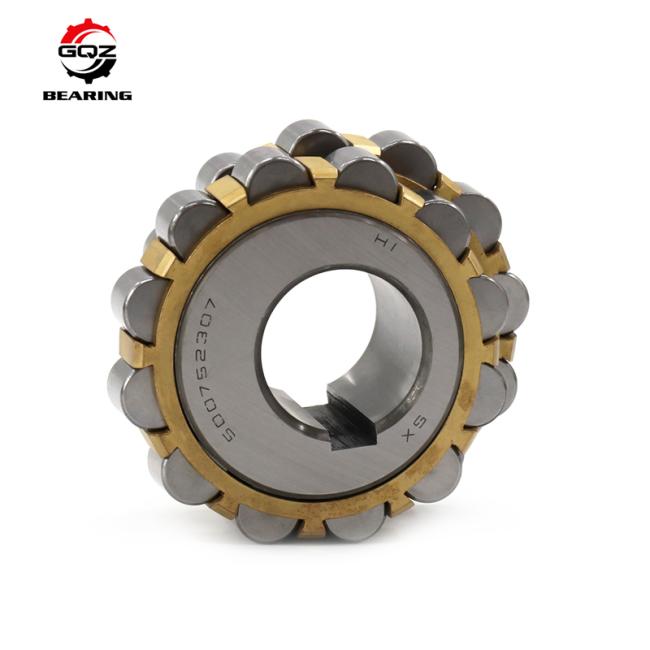

The 500752307 is a double row eccentric roller bearing with nylon cage, engineered for strong radial load-bearing, self-aligning capability, and adaptation to eccentric installation deviations. It is widely used in vibration equipment, agricultural machinery, and heavy-duty transmission systems prone to slight misalignment. Model breakdown: "5007" denotes the double row eccentric roller bearing series (optimized for handling unbalanced loads and installation errors); "52307" is the size & compatibility code (matches standard shaft/housing dimensions for targeted heavy-duty assemblies); "nylon cage" specifies the retainer variant (lightweight, low-noise, and corrosion-resistant, suitable for low-to-medium speed scenarios). Its double row eccentric structure enables flexible adjustment of radial clearance, making it ideal for equipment with vibration or slight shaft deflection (e.g., vibration screens, agricultural reducer shafts).
| Bearing Model | 500752307 |
| Structure |
Eccentric Roller Bearing ; Cylindrical Roller Bearing |
| Size ( ID x OD x B ) mm | 35x86.5x50mm |
| ID (mm) | 35 |
| OD (mm) | 86.5 |
| Thickness (mm) | 50 |
| Weight / Mass (KG) |
1.50KG |
we also have Various Kinds of other Bearings & Guide Blocks In Stock,just click the above " Contact Now " button for Details.
| Bearing Model | Dimension | Mass | ||
| d (mm) | D (mm) | L (mm) | (KG) | |
| 80752307 | 35 | 86.5 | 50 | 1.5 |
| 90752307 | 86.5 | 50 | 1.5 | |
| 100752307 | 86.5 | 50 | 1.5 | |
| 130752307 | 86.5 | 50 | 1.5 | |
| 150752307 | 86.5 | 50 | 1.5 | |
| 200752307 | 86.5 | 50 | 1.5 | |
| 250752307 | 86.5 | 50 | 1.5 | |
| 300752307 | 86.5 | 50 | 1.5 | |
| 350752307 | 86.5 | 50 | 1.5 | |
| 400752307 | 86.5 | 50 | 1.5 | |
| 450752307 | 86.5 | 50 | 1.5 | |
| 500752307 | 86.5 | 50 | 1.5 | |
| 550752307 | 86.5 | 50 | 1.5 | |
| 600752307 | 86.5 | 50 | 1.5 | |
| 650752307 | 86.5 | 50 | 1.5 | |
| 700752307 | 86.5 | 50 | 1.5 | |
| 100752307K | 113 | 62 | 3.5 | |
| 130752307K | 113 | 62 | 3.5 | |
| 150752307K | 113 | 62 | 3.5 | |
| 180752307K | 35 | 113 | 62 | 3.5 |
| 200752307K | 113 | 62 | 3.5 | |
| 250752307K | 113 | 62 | 3.5 | |
| 300752307K | 113 | 62 | 3.5 | |
| 350752307K | 113 | 62 | 3.5 | |
| 400752307K | 113 | 62 | 3.5 | |
| 500752307K | 113 | 62 | 3.5 | |
| 600752307K | 113 | 62 | 3.5 | |
| 700752307K | 113 | 62 | 3.5 | |
| 80752908 | 38 | 95 | 54 | 1.8 |
| 100752908 | 95 | 54 | 1.8 | |
| 150752908 | 95 | 54 | 1.8 | |
| 200752908 | 95 | 54 | 1.8 | |
| 250752908 | 95 | 54 | 1.8 | |
| 300752908 | 95 | 54 | 1.8 | |
| 350752908 | 95 | 54 | 1.8 | |
| 400752908 | 95 | 54 | 1.8 | |
| 500752908 | 95 | 54 | 1.8 | |
| 100752908K | 113 | 62 | 3.2 | |
| 200752908K | 113 | 62 | 3.2 | |
| 250752908K | 113 | 62 | 3.2 | |
| 300752908K | 113 | 62 | 3.2 | |
| 400752908K | 113 | 62 | 3.2 | |
| 500752908K | 113 | 62 | 3.2 | |
| 400752908K1 | 42 | 113 | 62 | 3.1 |
| 500752908K1 | 113 | 62 | 3 | |
