P0 One Way Clutch Freewheel Bearing Replacement BB20 BB -20 BB20-1K BB20-2K
Price:
negotiation
MOQ:
1 pcs
Delivery Time:
3 working days after received your payment
Brand:
GQZ or OEM
Product Description
P0 One Way Clutch Freewheel Bearing Replacement BB20 BB -20 BB20-1K BB20-2K
1. Specification:
| Metric Series | Inch series | Introduction |
| AXK | TC | Thrust needle roller and cage assemblies, single cage |
| NTB | NTA | Thrust needle roller and cage assemblies, double cage |
| AXW | Thrust needle roller bearings with centering | |
| AX | Thrust needle roller bearings with washer | |
| K811,K812,K893,K874,K894 | Thrust roller and cage assembly | |
| GS811,812,893,874,894 | Thrust race, outer surface grinding | |
| WS811,812,893,874,894 | Thrust shaft ring, the inner surface grinding | |
| LS | Thrust washers, economical, no grinding inner and outer surfaces | |
| ZS | Center washer | |
|
AS |
TWA,TWAB,TWC,TWD; | Thrust washer |
| TRA,TRB,TRC,TRD | Thrust washer |
2. Feature:
(1) Metal shielded on both sides
(2) With or without keyway
(3) One way direction
(4) Grease or oil lubrication

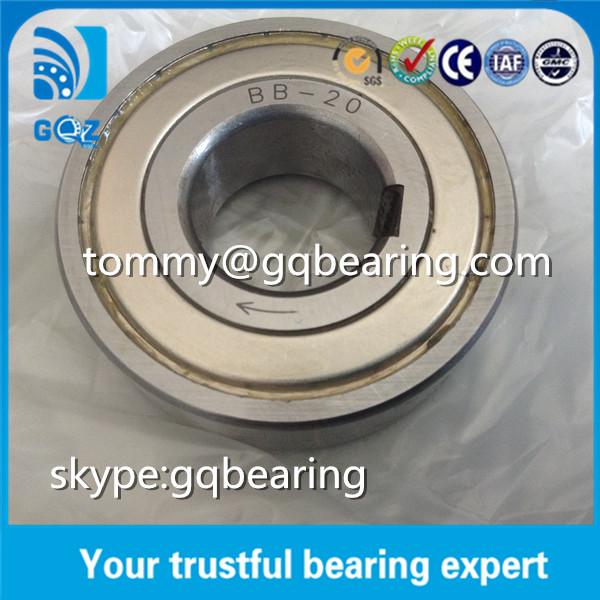

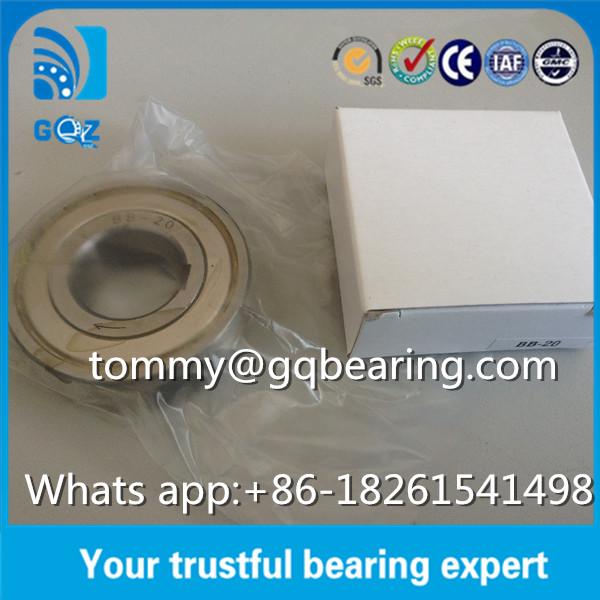

3. Bearing Picture:
4. We also supply following needle roller bearings:
| Model | Dimension (mm) | Rating Torque (Nm) |
W.G(Kg) | dimension (mm) | |||||
| ID | OD | T | H | h | d1 | D1 | |||
| CSK8 | 8 | 22 | 9 | 2.5 | 0.015 | 3 | 3 | 8.5 | 21.5 |
| CSK12 | 12 | 32 | 10 | 7.5 | 0.04 | 2 | 4 | 13.2 | 31.4 |
| CSK15 | 15 | 35 | 11 | 13.5 | 0.05 | 2 | 5 | 16.2 | 34.4 |
| CSK17 | 17 | 40 | 12 | 24.5 | 0.07 | 2 | 5 | 18.2 | 39 |
| CSK20 | 20 | 47 | 14 | 40 | 0.11 | 3 | 6 | 21.6 | 45.5 |
| CSK25 | 25 | 52 | 15 | 68 | 0.14 | 6 | 8 | 27 | 50 |
| CSK30 | 30 | 62 | 16 | 110 | 0.21 | 6 | 8 | 32 | 60 |
| CSK35 | 35 | 72 | 17 | 140 | 0.3 | 8 | 10 | 37.4 | 69.5 |
| CSK40 | 40 | 80 | 22 | 260 | 0.5 | 10 | 12 | 43.2 | 77 |
| CSK305 | 25 | 62 | 17 | 120 | 0.25 | 6 | 8 | 27 | 60 |
| CSK306 | 30 | 72 | 19 | 160 | 0.38 | 6 | 8 | 32 | 69.5 |
| CSK12-2RS | 12 | 32 | 14 | 7.5 | 0.05 | 2 | 4 | 13.2 | 31.4 |
| CSK15-2RS | 15 | 35 | 16 | 13.5 | 0.07 | 2 | 5 | 16.2 | 34.4 |
| CSK17-2RS | 17 | 40 | 17 | 24.5 | 0.09 | 2 | 5 | 18.2 | 39 |
| CSK20-2RS | 20 | 47 | 19 | 40 | 0.145 | 3 | 6 | 21.6 | 45.5 |
| CSK25-2RS | 25 | 52 | 20 | 68 | 0.175 | 6 | 8 | 27 | 50 |
| CSK30-2RS | 30 | 62 | 21 | 110 | 0.27 | 6 | 8 | 32 | 60 |
| CSK35-2RS | 35 | 72 | 22 | 140 | 0.4 | 8 | 10 | 37.4 | 69.5 |
| CSK40-2RS | 40 | 80 | 27 | 260 | 0.6 | 10 | 12 | 43.2 | 77 |
