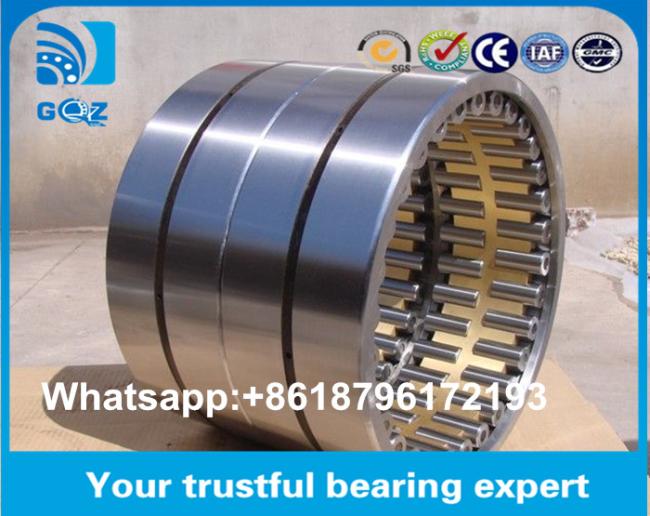

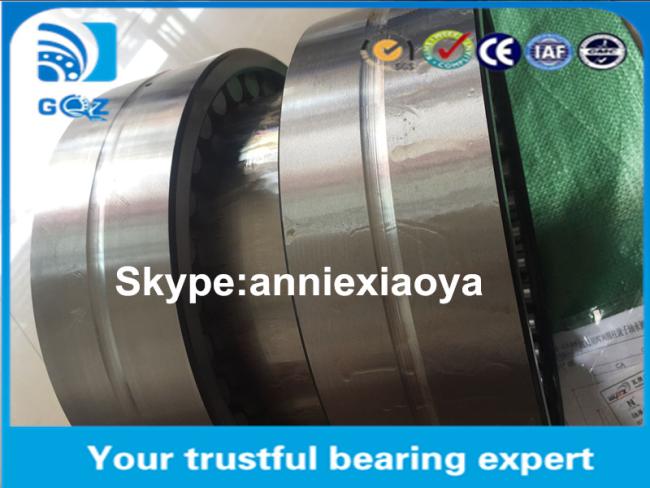

Four Row Cylindrical Roller Bearings With Chrome Steel Material 200 x 280 x 170 mm

Price Negotiable

Price: negotiation

MOQ: 1 pcs

Delivery Time: 3 working days after received your payment

Brand: OEM OR GQZ

Product Description

Four rows cylindrical roller bearing 200x280x170mm 314385 Cylindrical roller bearing, low coefficient of friction

1) Cylindrical roller bearing

2) Four row roller bearings

3) OEM/ODM available

4) Model : 314385

5) Factory directly sale

Product Description

Specification Cylindrical roller bearing 314385:

Cylindrical roller bearing is a separable bearing,easy to assembly and dismantle,Tight fit can be use for both inner and outer rings.The corrected contact line between the rollers and raceway can reduce stress concentration.

Drawing Cylindrical roller bearing 314385:

Parameter: Cylindrical roller bearing 314385:

d	D	B	KG	TYPE
190	270	200	37.5	314199
190	270	200	37.5	190RV2701
190	270	200	37.5	4R3821
190	270	200	37.5	508657
190	270	200	37.5	314199B
190	280	200	42.3	314049A
190	280	200	42.3	510199
190	280	200	42.3	4R3823
190	280	200	42.3	190RV2801
200	250	200	23.8	200RV2521
200	270	170	28.5	314553
200	270	170	28.5	4R4039
200	270	170	28.5	522742
200	270	170	28.5	314553
200	280	170	32.5	314385
200	280	170	32.5	507344
200	280	170	32.5	40FC28170
200	280	188	36.2	40FC28188
200	280	190	36.5	40FC28190A
200	280	190	36.5	200RV2803
200	280	200	39.3	313893
200	280	200	39.3	508726
200	280	200	39.3	4R4037
200	280	200	39.3	200RV2802
200	280	200	39.3	313893-1
200	280	200	39.4	200RV2801
200	280	200	39.4	40FC28200
200	290	192	42.8	313811
200	290	192	42.8	200RV2901
200	290	192	42.8	4R4041
200	290	192	42.8	512580
200	290	192	42.8	313811
200	310	200	59.5	524373
200	310	130	64.3	313639/VJ202
200	310	130	64.3	503901.N12BA
200	310	130	64.3	200RV3102
200	320	216	67.2	200RV3231
200	320	216	67.2	4R4028
210	290	192	41.2	313646
210	290	192	41.2	507628
210	290	192	41.2	4R4206
210	290	192	41.2	210RV2901
210	290	192	41.2	42FC29192
210	300	210	47.9	42FC30120
220	300	160	32.8	4R4419
220	290	192	33.8	4R4413
220	300	200	41.2	567623
220	300	200	41.2	BC2B322341/HB1VL202
220	310	192	46.3	313839
220	310	192	46.3	507333
220	310	192	46.3	4R4426
220	310	192	46.3	313837A
220	310	192	46.3	313837-1
220	310	192	46.3	220RV3101
220	310	204	49.8	4R4425
220	310	215	51.5	4R4420
220	310	225	54.5	313894B
220	310	225	54.5	514461
220	310	225	54.5	44FC31225A
220	310	225	54.9	506869
220	310	225	54.9	4R4416
220	310	225	54.9	220RV3102
220	310	225	54.9	44FC31225A
220	310	265	63.5	4R4430
220	320	160	46.5	4R4428
220	320	210	61.2	509216
220	320	210	61.2	220RV3203
220	320	210	61.2	44FC32210
220	320	210	56.1	44FC32210-1
220	320	210	56.1	220RV3203
220	320	210	56.1	4R4429
220	330	230	68.5	541452
220	330	230	68.5	314889/VJ202
220	340	180	60.3	44FC34180A
220	340	290	96.3	525147
230	330	206	58.6	4R4614
230	330	206	58	313824
230	330	206	58	508727
230	330	206	58	230RV3301
230	330	206	58	313824
230	340	260	81	4R4611
230	340	260	81	230RV3401
230	340	260	81	46FC34260
230	365	250	100	313581A
230	365	250	100	529113
230	365	250	100	230RV3601
230	365	250	100	313581AW
240	330	180	49.5	635194
240	330	180	49.5	504547
240	330	220	56.4	48FC33220
240	330	220	58	313921
240	330	220	58	508368
240	330	220	58	4R4811
240	330	220	58	240RV3301
240	330	220	58	312943/1YD
240	340	220	71	513703
240	340	220	71	4R4806
240	340	220	71	240RV3403
240	340	220	71	48FC34220
240	360	218	77.4	48FC36218
