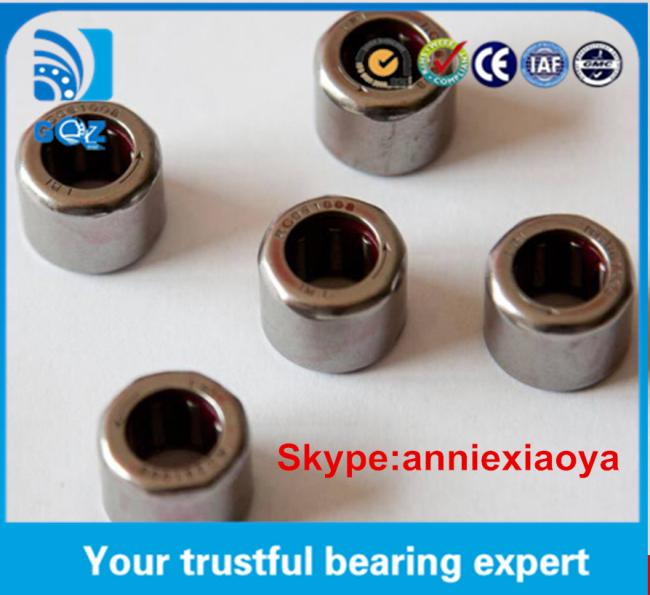

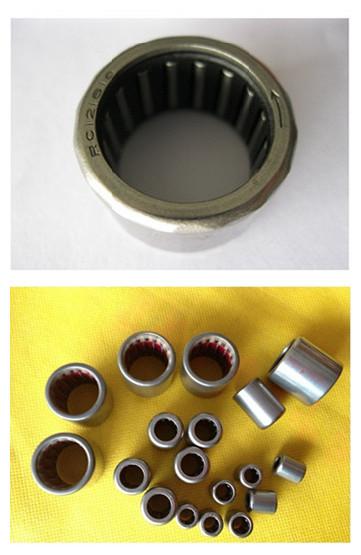

RC type one way needle roller bearing RC101410 5/8 x 7/8 x 5/8 inch ISO 9001 2000
RC type one way needle roller bearing RC101410 bottom needle roller bearing 5/8 x 7/8 x 5/8 inch
About One way lock bearing RC101410 one way needle roller bearing :
One Way needle roller clutch Bearings are designed to transmit torque between the shaft and housing in one direction and allow free motion in the opposite direction. Proper mounting is easily accomplished with a simple press fit in the housing. Clutches and clutch and bearing assemblies are offered both in inch and metric series. One Way Bearings without bearing assemblies are indicated by suffix: HF/FC/RC. One Way Bearings with bearing assemblies are indicated by suffix: HFL/FCB/RCB.
One way lock bearing RC101410 one way needle roller bearing models series :
Needle roller and cage type bearings use a roller style rolling element however, they do not include inside and outside races to maximize allotted space. Needle roller and cage type bearings have a larger surface area that is in contact with the bearing outer surface compared to traditional ball bearings. Typically, the needle roller bearings consist of needle cage, which orients and contains the needle rollers, and the needle rollers themselves. Needle roller and cage type bearings are predominantly used in engine components.
| Model | Weight /g | Size /mm | |||
| Fw | D | C | Driving torque | ||
| RC02 | 2 | 3.175 | 7.15 | 6.35 | 1.9 |
| RC040708 | 3.5 | 6.35 | 11.112 | 12.7 | 1.9 |
| RC040708-FS | 3.5 | 6.35 | 11.112 | 12.7 | 1.9 |
| RC061008 | 4.7 | 9.525 | 15.875 | 12.7 | 4.83 |
| RC061008-FC | 4.7 | 9.525 | 15.875 | 12.7 | 4.83 |
| RC081208 | 9.2 | 12.7 | 19.05 | 12.7 | 7.9 |
| RC081208-FS | 9.2 | 12.7 | 19.05 | 12.7 | 7.9 |
| RC101410 | 14.5 | 15.875 | 22.225 | 15.88 | 15.4 |
| RC101410-FC | 14.5 | 15.875 | 22.225 | 15.88 | 15.4 |
| RC121610 | 17 | 19.05 | 25.4 | 15.88 | 20.9 |
| RC121610-FS | 17 | 19.05 | 25.4 | 15.88 | 20.9 |
| RC162110 | 16.2 | 25.4 | 33.338 | 15.88 | 45 |
| RC162110-FC | 16.2 | 25.4 | 33.338 | 15.88 | 45 |
| RCB061014 | 12 | 9.525 | 15.875 | 22.22 | 4.83 |
| RCB061014-FS | 12 | 9.525 | 15.875 | 22.22 | 4.83 |
| RCB081214 | 16 | 12.7 | 19.05 | 22.22 | 7.9 |
| RCB081214-FC | 16 | 12.7 | 19.05 | 22.22 | 7.9 |
| RCB101416 | 21.3 | 15.875 | 22.225 | 25.4 | 15.4 |
| RCB101416-FS | 21.3 | 15.875 | 22.225 | 25.4 | 15.4 |
| RCB121616 | 26.5 | 19.05 | 25.4 | 25.4 | 20.9 |
| RCB121616-FC | 26.5 | 19.05 | 25.4 | 25.4 | 20.9 |
| RCB162117 | 44.8 | 25.4 | 33.338 | 26.99 | 45 |
| RCB162117-FS | 44.8 | 25.4 | 33.338 | 26.99 | 45 |
ONE WAY BEARING DESIGN FEATURES :
• Torque can be transmitted by either the housing or the shaft.
• Torque is positively transmitted by rollers that wedge against interior ramps.
• Transition from free motion to lock occurs with minimal backlash or lost motion.
• Available as clutch-only or as a clutch and bearing assembly.
• Clutch-only units should be used with external radial support to hold the shaft and housing.
