Features:


1. Spherical roller bearings have an outer ring with an internal spherical shape. The rollers are thicker in the middle and thinner at the ends. Spherical roller bearings can thus accommodate both static and dynamic misalignment. However, spherical rollers are difficult to produce and thus expensive, and the bearings have higher friction than an ideal cylindrical or tapered roller bearing since there will be a certain amount of sliding between rolling elements and rings.
2. Spherical roller bearings can take, not only heavy radial loads, but also some axial loads in either direction. They have excellent radial load-carrying capacity and are suitable for use where there are heavy or impact loads.
3. Some spherical roller bearings have tapered bores and may be mounted directly on tapered shafts or cylindrical shafts using adapters or withdrawal sleeves. Pressed steel and machined brass cages are used.

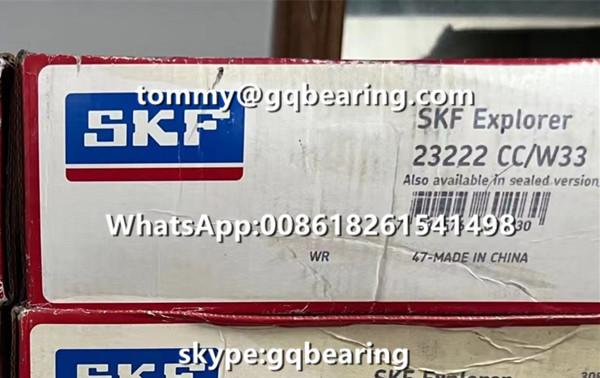

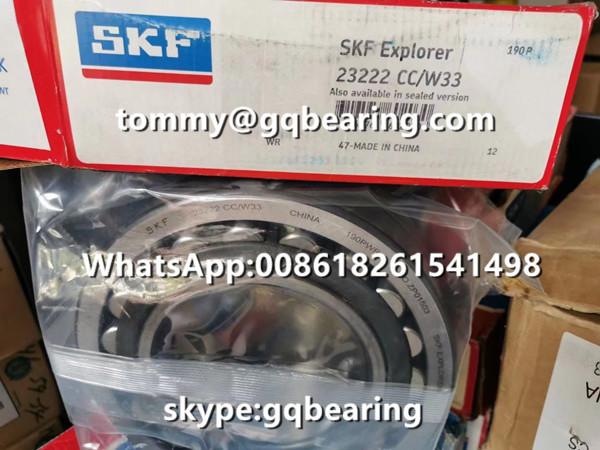

Datasheet of 23222 CC/W33 bearing:

Spherial roller bearings according to cage different types can be classified as follows:
■ Spherical Roller Bearing CC/W33 series
■ Spherical Roller Bearing CA/W33 series
■ Spherical Roller Bearing F3 series
■ Spherical Roller Bearing MB cage series
■ Spherical Roller Bearing E Strength series
Structures and Suffix Code of Popular Series Spherical Roller Bearings:
According to the bearing dimensions and series, choose one of the following internal designs and design the different series spherical roller bearings. The following chart is the spherical roller bearings with different inner rings and the structures of cage.
Designation of spherical roller bearings
Spherical roller bearings are produced in several designs, depending on bearing series and size. The differences are
- the arrangement of the floating guide ring as well as
- the design of the inner ring and/or cages,
as described in the following.


• C(J), CC--Two window-type steel cages, flangeless inner ring and guide ring center on the inner ring
• EC(J), ECC(J)--Two window-type steel cages, flangeless inner ring, guide ring center on the inner ring and reinforced roller complement.
• CA--One-piece machined brass cage, double-pronged, retaining flanges on the inner ring and guide ring center on the inner ring
• CAF-- As CA, but with a steel cage.
• ECA, ECAC-- Reinforced roller complement, one-piece machined brass cage, double-pronged, retaining flanges on the inner ring, guide ring center on the inner ring.
• ECAF-- As ECA, but with a steel cage.
• E-- For bearings with a bore diameter d ≤ 65 mm: Two pressed window-type steel cages, flangeless inner ring and guide ring centred on the inner ring
• CAFA-- One-piece machined steel cage, double-pronged, centred on the outer ring raceway, retaining flanges on the inner ring and guide ring centred on the inner ring
