Outdoor HD Rental Led Screen Pixel Pitch 6.66mm With 140 Degree Viewing Angle

Price Negotiable

Price: Negotiation

MOQ: 1 pc/ 1 sqm.

Delivery Time: 10-20 days after receive payment

Brand: BST

Product Description

Outdoor HD Rental Led Screen Pixel Pitch 6.66mm With 140 Degree Viewing Angle

Quick Detail:

1, Wide visual angle, smooth surface

2, Different video frequency can be changed freely at the same time, and the image
can be enlarged and reduced.

3, Modular design, flexible shape for big area

4, High quality with reasonable price

5, Low power consumption

6, Leading technology of high grey level and low brightness,

Specifications:

Parameters of BST-ORD-10

LED Display Series	BST-ORD-6-I	BST-ORD-8	BST-ORD-10
Pixel Pitch(mm)	6.66	8	10
Pixel Density(dots/m²)	22545	15625	10000
Avr Power Consumption (W/M²)	≤500	≤500	≤500
Brightness Max(cd/m²)	≥6500	≥6500	≥5000
Color Temperature(after calibration)K	6500	6500	6500
Cabinet Material	Die Casting Aluminum	Die Casting Aluminum	Die Casting Aluminum
Weight(kg/Panel⁾	14	14	14
Working Humidity	10%-95%	10%-95%	10%-95%
Driving Method	1/6	1/5	1/4
LED Type	SMD2727	SMD2727	SMD3535
Horizontal/Vertical Viewing Angle(º)	H140º/V140º	H140º/V140º	H140º/V140º
Recommended Viewing Distance(m)	1--100	1-100	1--100
Power Supply	Single power	Single power	Single power
Refresh Rate(Hz)	≥1920	≥1920	≥1920
Weight(kg/m²)	40	40	40
Grey Scale(bit)	R’G’B 16bit	R’G’B 16bit	R’G’B 16bit
Frame Rate(Hz)	50/60	50/60	50/60
Life Time(H)	≥100000	≥100000	≥100000
Protection	Outdoor	Outdoor	Outdoor
Cabinet Size(W*H)(mm)	640x640	640X640	640X640
LED Chip	Epistar	Epistar	Epistar
Contrast	2000:1	2000:1	2000:1
Protection	IP65	IP65	IP65
Max Power Consumption(W/M²)	900	900	900
Working Temperature	-20C°/40C°	-20C°/40C°	-20C°/40C°
Module Size(W*H)(mm)	320X160	320X160	320X160
Driving Chip	MBI5124	MBI5124	MBI5124
Control Input	DVI/HDMI/HDSDI	DVI/HDMI/HDSDI	DVI/HDMI/HDSDI
Max Hanging(Vertical)	≥200kg	≥200kg	≥200kg

P6.66 Outdoor Rental LED Display

Controller

Packing

Description:

1, Large viewing angle,both H/V can reach 140 degree;getting vivid effect within any position of the viewing range;

2. Die-casting aluminum design, CNC precise processing

3, High protective rank: reach IP65 protection.

4, Seamless, bezel-free, size-free splicing with adjusting accuracy is 0.01mm

5. Can compile facture and play through the computer.

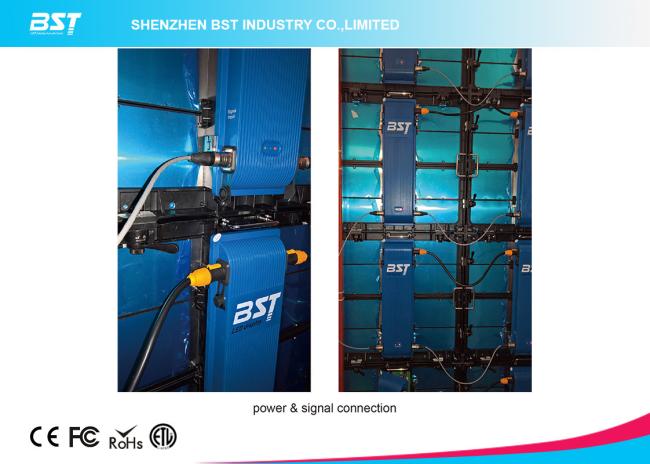

6. Modular front maintenance, supporting hot plugging for unit module and wires

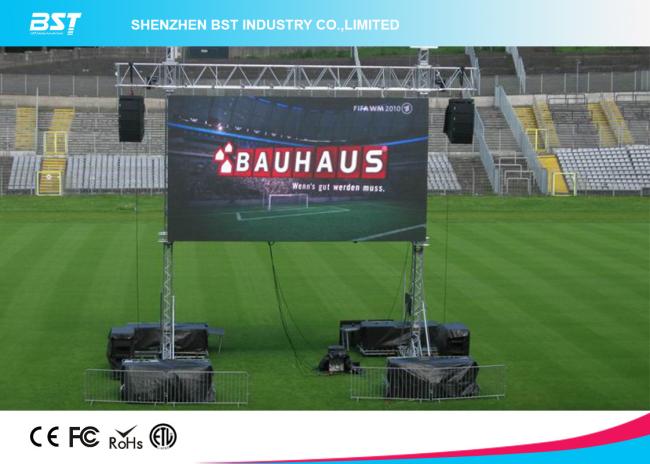

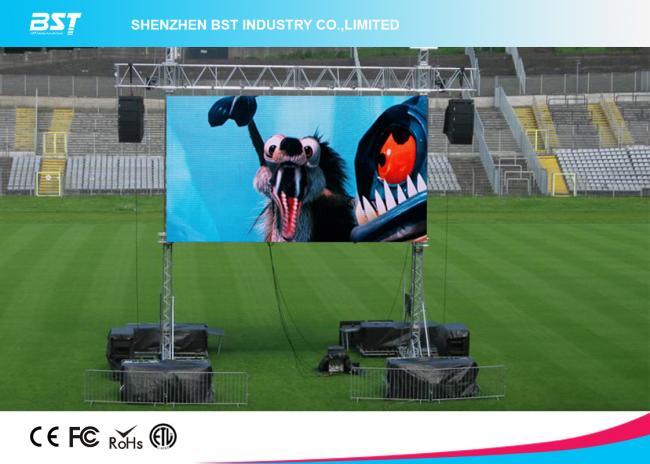

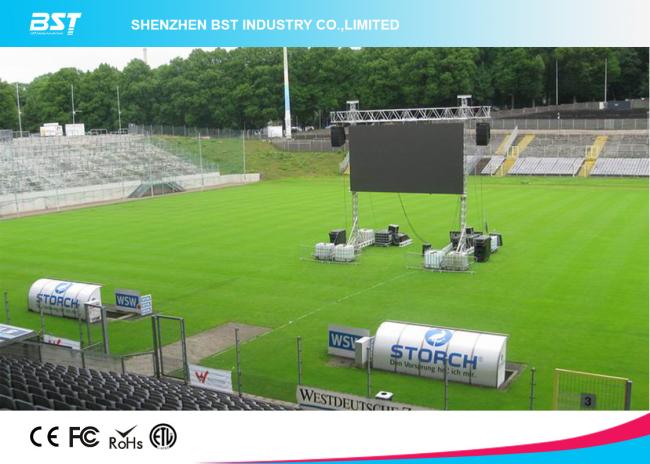

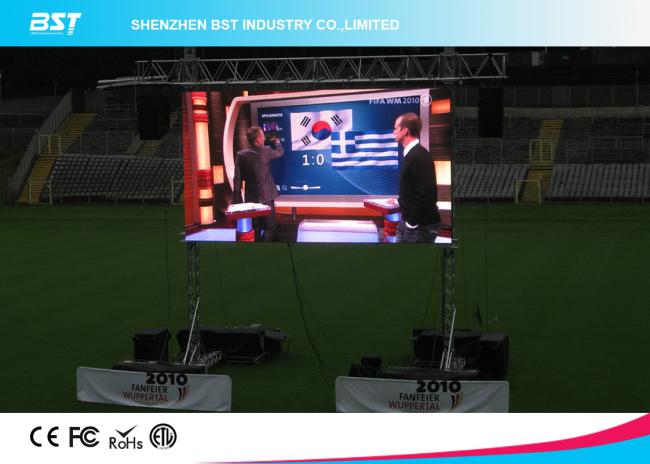

Application:

Commercial advertising, animation, advertising, stage backdrop, stadium, business establishments,TV shows, car shows, mobile media, shopping center,exhibitions, fashion shows, concerts,Video, graphics,sports, entertainment, events,Stadium perimeter, etc
