P7.62 Indoor Full Color Led Screen Module 32 X 16pixel / 244mm X 122mm For Stage

Price Negotiable

Price: Negotiation

MOQ: negotiable

Delivery Time: 10-20 days after receive payment

Brand: BST

Product Description

P7.62 Indoor Full Color Led Screen Module 32 X 16pixel / 244mm X 122mm For Stage

Quick Detail:

1, Good quality; Good Price

2. 244 × 122 mm module size;

3. SMD3528 LED type;

4. 1/8 scan constant current;

5, Fast delivery time.

6, First class led chip

Detail Description:

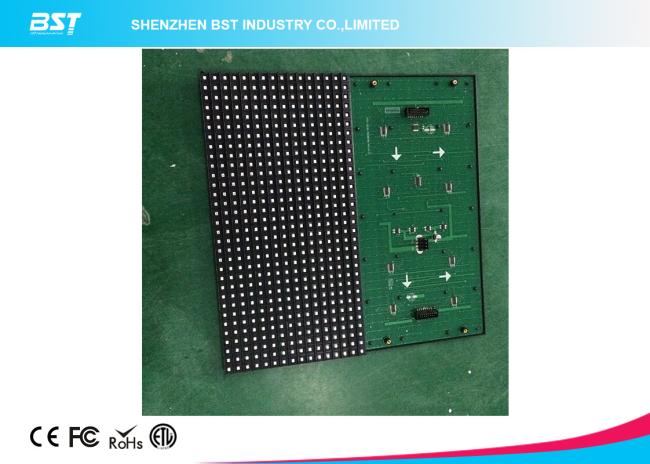

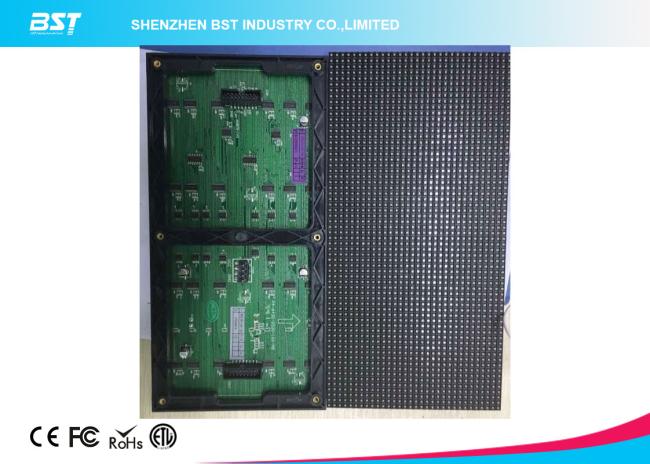

There are 18 pcs 5124 driving ICs for each LED module, 1/8 scan;

The maximum current is about 4 Amp;

Carton box packed, EPE foam inside.

Specifications:

Items	Parameter
LED Encapsulation	SMD3528
Pixel Pitch	7.62mm
Module Resolution(W*H)	32* 16
Module Size	244*122mm
Pixel Configuration	1R1G1B(3 in1)
Pixel Density	17222 pixel/㎡
Driving Method	1/16 Scan	1/8 Scan
Refresh Frequency	≥1500Hz(Supporting high refresh rate and depending on system configuration)
Driving IC	Special constant current IC with high refresh rate and high gray scale
Grey Scale	＞16BIT(According to system and IC equipped)
White Balance Brightness	＞1000cd/㎡ (Black) /＞1200cd/㎡(White)	＞1000cd/㎡ (Black) /＞1500cd/㎡(White)
Color Temperature	8000K ± 500(adjustable)
Viewing Angle	Horizontal Angle 140° Vertical Angle 140°
Optimal Viewing Distance	＞8m
Working Voltage	DC5V
Max Power Consumption	10W/pcs(White Balance)	15W/pcs(White Balance)
Avg Power Consumption	6W/pcs(Normal Working)	8W/pcs(Normal Working)
Lifetime	50000 Hours
Operating Temperature	-10℃ ~50℃
Weight	0.32kg/pcs
