P16 Curtain Led Display Screen With Transparent Panels For Stage / Event / Advertising
P16 Curtain Led Display Screen With Transparent Panels For Stage / Event / Advertising
Quick Detail:
1) Made up of High quality material. Transparent, flexible.Ultra light & think like paper;
2) Easy to use, the controller & signal cable all hidden on the tope together with the control box. So look front the LED screen body, it is very clean and tidy.
3) The screen come out with the power plug.
4) Resolution is customized.
5) Size is customized.
Description:
1. Transparent body: Transparent LED give more amazing screen
2.Light weight: Ultra-slim and ultra-lightweight bring more design opportunities and save the shipping cost
3.Amazing flexibility: can be designed many different shapes.
3.High brightness: High-quality RGB 3-IN-1 LED, brings bright, high-impact, full-color video images.
Applications:

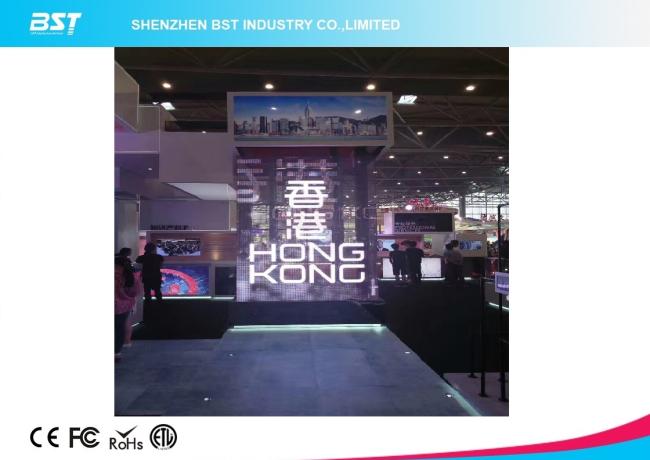

It looks like a crystal curtain to bring more creative application. It is applied in fashion shows, trade shows, theme parks, music concerts, visual stage, shopping mall advertising, video wall, indoor decoration and more.
Specifications:
1. LED Display Technical Parameter
|
Model No. |
BST-TS-16 |
|
Pixel Pitch |
16mm |
|
Module Size |
480mm*320mm |
|
Module Resolution (W*H) |
30dots*20 dots |
|
Pixel Density |
3906dots/ ㎡ |
|
LED Type |
SMD3528 |
|
Pixel Configuration |
1R1G1B |
|
Wavelength (R.G.B) |
R:625±2nm G:525±2nm B:470±2nm |
|
Drive Mode |
Static Drive Constant Current |
|
Cabinet Size |
960 × 640mm |
|
Cabinet Resolution |
60dots × 40dots |
|
Brightness |
≥ 5,500cd/㎡ |
|
Contrast |
≥2000:1 |
|
Viewing Angle |
140°(Horizontal )/140°(Vertical ) |
|
Best Viewing Distance |
16-300m |
|
Grey Scale |
10bits/1024levels |
|
Color Capability |
16.7 million |
|
Color Temperature |
5,000-9,300K |
|
Maximum Power Consumption |
600 W/m2 |
|
Average Power Consumption |
200 W/m2 |
|
Working Voltage |
AC 220V/110V s±15% 50-60 HZ |
|
Frame Frequency |
60-85 HZ |
|
Refresh Frequency |
>1500HZ |
|
Brightness Correction |
Pixel, Module, Cabinet Correction |
|
Operating Temperature |
-40~+60℃ |
|
Operating Humidity |
10-90% RH |
|
LED Lifespan |
100,000 hours |
|
MTBF |
≥50,000 hours |
|
Computer Operation System |
Win 98/ Win XP/ Win 2000/Win7/Win 8 |
|
Video Signal Input |
RF,S-Video, RGB,RGBHV,YUV,YC,VGA, DVI, HDMI, SDI,HD-SDI ,Composite |
|
Video Signal Output |
RF, S-Video, RGB, RGBHV, YUV, YC etc. |
|
Graphics Card |
DVI Graphics Card |
|
Control Distance |
LINSN / NOVA / DB-STAR |
|
Software |
LED studio 10.0 |
|
OEM |
Yes |
|
Installation |
hung and stand |
|
Out of Control Rate |
0.01 % |
Our service:
1. Any inquiry or complaint will be replied within 24hrs.
2. Providing competitive products and sales consultation.
3. Any your customized product or idea we can help you to design and put into product.
4. Two-year quality guarantee, only needs to anew purchase the raw material when over the warranty period.
5. Protection of your sales area, ideas of design and all your private information.
6.Years of production experience we can very good to control the quality of the product, OEM and ODM accepted.
Trade Terms :
1. Packing: Anti-shaking wooden cabinet /Air flight case/carton
2. Shipping port: Shenzhen. China
3. Shipping freights are quoted according to your requests
4. Delivery time:25 working days
5. 2 years warranty ,lifelong maintaining. In the Maintenance period, free of all maintenance charges. After Maintenance period,only charge the material costs fees.
