IP43 Indoor P5 SMD2121 Advertising LED Video wall Screen Slim Cabinet (>1200nits )
IP43 Indoor P5 SMD2121 Advertising LED Video wall Screen Slim Cabinet (>1200nits )
Products Feature
1.Quiet fan design, excellent heat dissipation.
2. Sidelocks design for better consistency and seamless assembly.
3. High polymer flexible mask, no mosaic phenomenon ,better contract ratio.
4. High-performance metal plate cabinet, concise cable.
5. The sealed-type back cover, effectively prevent wrong operations from the amateur.
Parameters of BST-IA-5
| O. | Item | Parameters |
| 1 | Model | IA-5 |
| 2 | Pixel Pitch(mm) | 5 |
| 3 | LED Configuration | 1R1G1B |
| 4 | LED Type | SMD2121 |
| 5 | Screen Resolution | 40000dots/sqm |
| 6 | Module size(mm) | 160x160 |
| 7 | Module resolution(dots) | 32x32 |
| 8 | Scan method | 1/16 constant current drive |
| 9 | Cabinet size(mm) | 640x640 |
| 10 | Cabinet resolution(dots) | 128x128 |
| 11 | Cabinet material | Iron / Aluminum |
| 12 | Brightness(cd/sqm) | ≥1200 |
| 13 | Viewing angle | H:140°/ V:140° |
| 14 | Grey Scale | 14bit |
| 15 | Refresh rate(Hz) | ≥1920 |
| 16 | Ave. power consumption (W/sqm) | 170 |
| 17 | Max. power consumption(W/sqm) | 420 |
| 18 | IP grade | IP43 |
| 19 | controller | Novastar / Linsn |
| 20 | Maintenance | Rear service |
| 21 | Color(T) | >4.4 |
| 22 | Input Voltage(V) | AC 110V-220V +/-10% |
| 23 | Frame frequency(Hz) | 60 |
| 24 | Working humidity | 10~90%RH |
| 25 | Working temperature | -20ºC~50ºC |
| 26 | Certificates | RoHS / CE / CCC |
Accessory
Application:

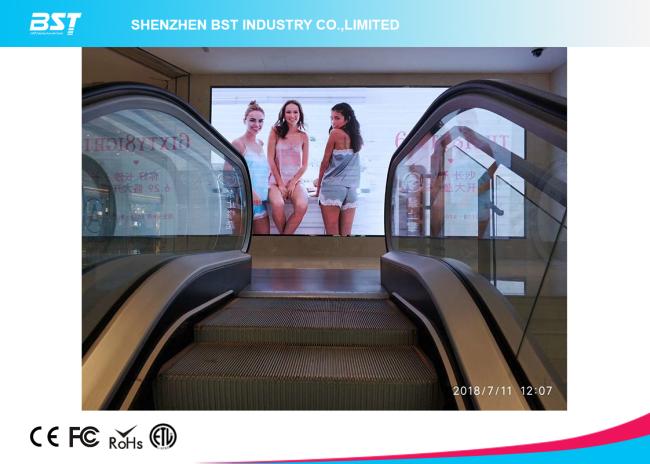

Entertainment events,Commercial advertising,Stadium perimeter, such as banks,schools, telecommunications, mobile media, night club, business establishments, customs, stadiums, studio, stock exchange centers, bus station, shopping malls, railways, airports, harbors, etc;
1. Provides all LED display relative solution, like installation drawing etc.
2. Have free training about how to use and maintain LED display with our professional engineer.
3. Provide free spare parts for future urgent need.
4. Technical Support: We could send our engineer to guide the installation for you. But the relevant cost should be paid by your esteemed company such as accommodation & round-trip ticket.
5. Professional engineer in service after sales, 18/7 for any inquiry.
6. All other service request will be considered in BST , please contact with sales in details.
