High Contrast Ratio Flexible LED Display Panels With Long Life Time 100,000 Hrs
High Contrast Ratio Flexible LED Display Panels With Long Life Time 100,000 Hrs
Flexible LED Display Panels Quick Detail:
1. High Contrast ratio: 4000:1
2. First-class LED chip
3. Clear vivid image quality
4. Long life time
5. Easy Installation & Operation
6. Convenient Servicing
Flexible LED Display Panels Description:

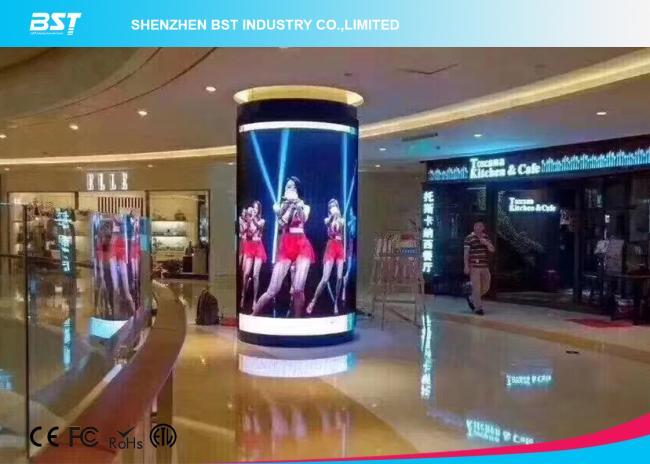

1. It can be curved into different shape to fit convex or concave wall or rugged wall or building, also it can
be shaped into column to wrap pillars for animation decoration.
2. Easy to maintain, High resolution, Good contract, Less Weight, easy to install. Widely used as the
information billboard in Airport, Railway station, and big shopping mall, concert and ect.
3. The brightness of indoor LED signs is adjustable so as to ensure different environment.
4. We make best design with high cost- efficiency according to the actual needs of our customers and we
can offer OEM service as well.
5. Antiseptic and durable, can be used outdoor in all weather.
Flexible LED Display Panels Applications:
Our products have been widely used in venues as banks,Commercial advertising, animation, mobile media, shopping center,exhibitions, fashion shows, concerts,Video, graphics,sports, entertainment, events,advertising, stage backdrop, stadium, business establishments,TV shows, car shows, Stadium perimeter, etc
Flexible LED Display Panels Specifications:
| SPECIFICATION | |||
| FL-2 | FL-4 | FL-6 | |
| Physical Pitch | 2.5mm | 4mm | 6.66mm |
| Pixel Configuration | SMD2121 | SMD2121 | SMD3528 |
| Pixel Density | 160,000pixels/sqm | 62,500 pixels/sqm | 22,500 pixels/sqm |
| Module Dimensions (WXH)(mm) |
240X120 | 240X120 | 320X160 |
| Panel Dimensions(mm) | Customized | Customized | Customized |
| Physical Resolution of Module(WXH) |
96X48 | 60X30 | 48X24 |
| Weight | 8.2kg/sqm | 8.2kg/sqm | 8.2kg/sqm |
| Processing | 16bit | 16bit | 16bit |
| Colours | 281 trillion | 281 trillion | 281 trillion |
| Contrast Ratio | 4,000:1 | 4,000:1 | 4,000:1 |
| Average Power Consumption |
9W | 10W | 10W |
| Max Power Consumption |
12W | 13W | 13W |
| Refresh Rate | >1920Hz | >1920Hz | >1920Hz |
| Brightess | ≥1,000nits | ≥1,500nits | ≥1,500nits |
| Driving Method | 1/40 | 1/8 | 1/8 |
| Horizontal Viewing Angle |
160° | 160° | 160° |
| Vertical Viewing Angle |
140° | 140° | 140° |
| Expected Lifetime | 100,000Hrs | 100,000Hrs | 100,000Hrs |
| Servicing | Front | Front | Front |
| IP Rationg (Front/Rear) |
IP 40 | IP 40 | IP 40 |
| Operation Temp/ Humidity |
—20℃-60℃ /10%-60% | —20℃-60℃ /10%-60% | —20℃-60℃ /10%-60% |
| Storage Temp/ Humidity |
—30℃-60℃ /10%-60% | —30℃-60℃ /10%-60% | —30℃-60℃ /10%-60% |
| Certification | CCC,CE,ETL,ROHS | CCC,CE,ETL,ROHS | CCC,CE,ETL,ROHS |
